ISR 1416 N 16-2
ISR 1416 N 16-2
ISR 1416 N 16-2

ISR 1416 N 16-2

UGC DOR6759686
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$262.00 CAD - $262.00 CAD
$262.00 CAD
$262.00 CAD - $262.00 CAD
$262.00 CAD

Vendu en lots de : 1

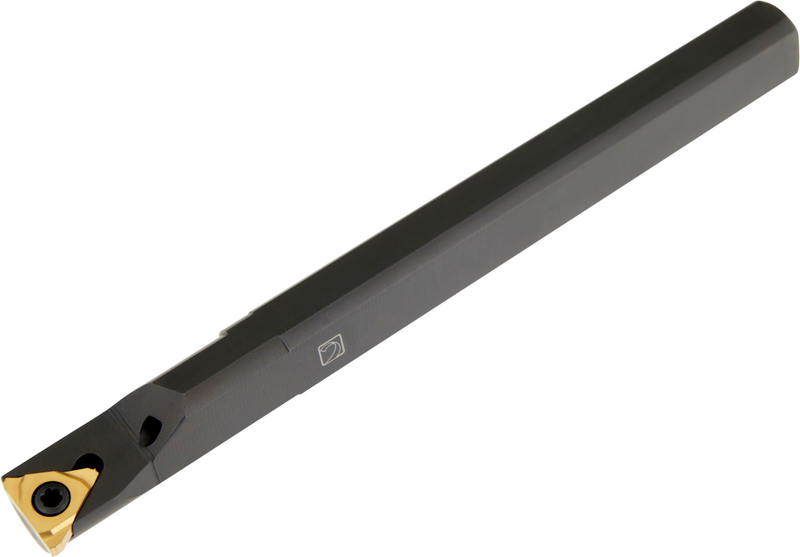

Barre d'alésage à filetage à serrage par vis avec angle d'hélice de 2° pour plaquette triangulaire avec cercle inscrit de 9,525 mm (désignation TN 16NR..), version standard à droite avec queue cylindrique en acier avec trou d'arrosage, 16 mm de diamètre et 160 mm de longueur totale pour filetage intérieur, gorge pour circlips et gorge pour joint torique

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SIR 1416 N 16-2
Product Number6759686
Product FamilySI(RL)

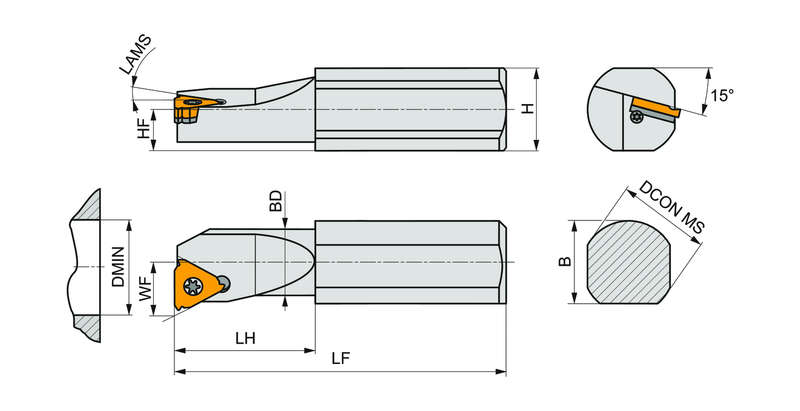

Dimensions
Functional Length — in (LF)6.299"
Functional Length — mm (LF)160.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.571 mm
Min. Bore Dia. — in (DMIN)0.65"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6759686
EAN3603602950321
File Type Download
ISR 1416 N 16-2 — 3D Model STP Download
ISR 1416 N 16-2 — 2D Model DXF Download
ISR 1416 N 16-2 — Line Drawing PDF Download
