A20R-SVJBL 11
A20R-SVJBL 11
A20R-SVJBL 11

A20R-SVJBL 11

UGC DOR6759717
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.00 CAD - $259.00 CAD
$259.00 CAD
$259.00 CAD - $259.00 CAD
$259.00 CAD

Vendu en lots de : 1

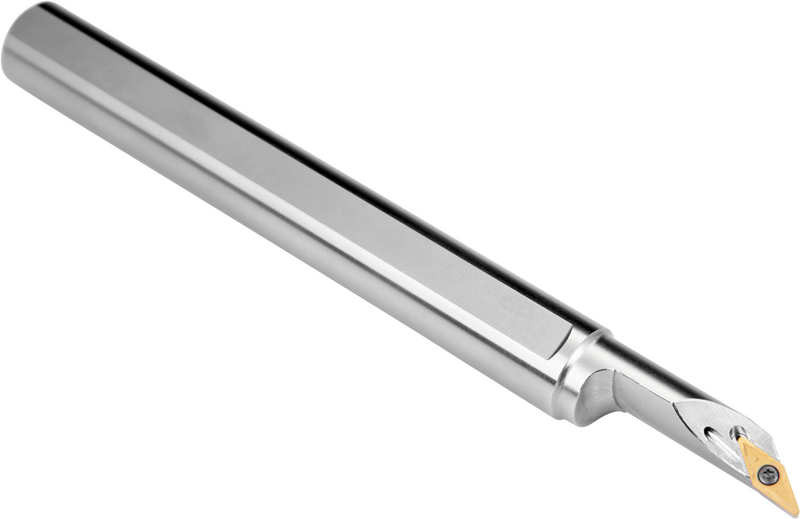

Alésoir à vis pour plaquette positive rhomboïde 35° avec un diamètre de cercle inscrit de 6,35mm, 3,18mm d'épaisseur (désignation ISO VB.. 1103.. ), 93° à gauche, queue déportée, en acier avec trou d'arrosage, 20mm de diamètre x 200mm de long pour copiage frontal

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20R-SVJBL 11
Product Number6759717
Product FamilySVJB(RL) INT

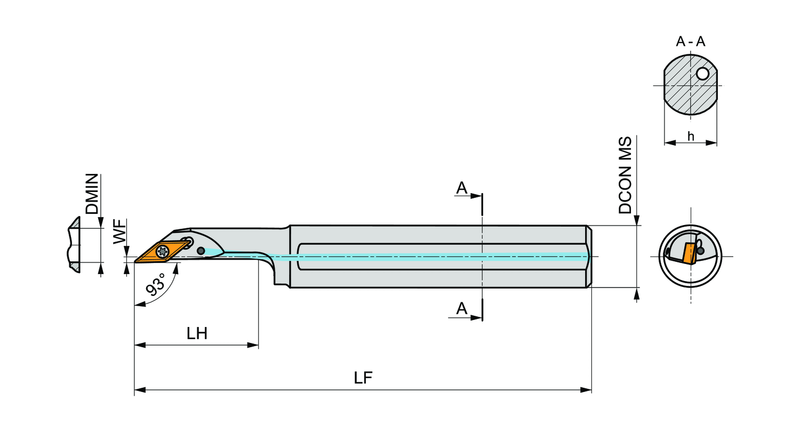

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6759717
EAN3603602950635
File Type Download
A20R-SVJBL 11 — 3D Model STP Download
A20R-SVJBL 11 — Line Drawing PDF Download
