A20R-SVJBR 11
A20R-SVJBR 11
A20R-SVJBR 11

A20R-SVJBR 11

UGC DOR6759718
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.00 CAD - $259.00 CAD
$259.00 CAD
$259.00 CAD - $259.00 CAD
$259.00 CAD

Vendu en lots de : 1

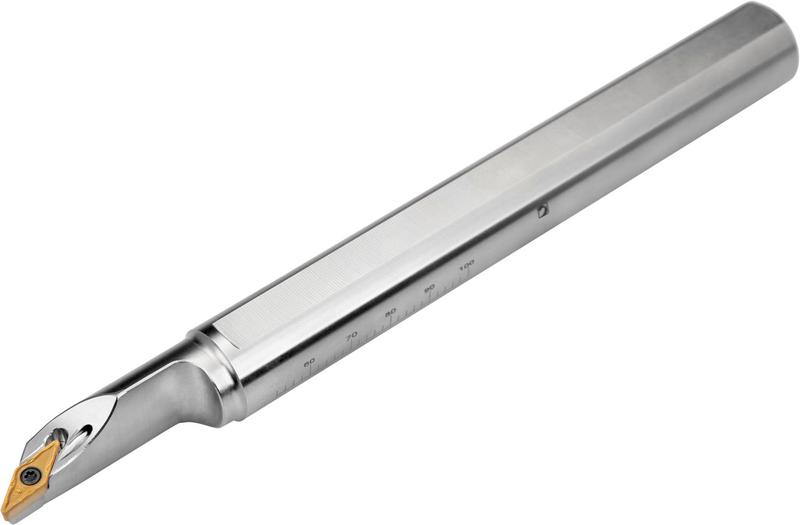

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 35° avec un cercle inscrit de 6,35mm de diamètre, 3,18mm d'épaisseur (désignation ISO VB.. 1103.. ), coupe à droite 93° avec corps déporté, acier avec trou d'arrosage, 20mm de diamètre x 200mm de long pour le copiage frontal

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20R-SVJBR 11
Product Number6759718
Product FamilySVJB(RL) INT

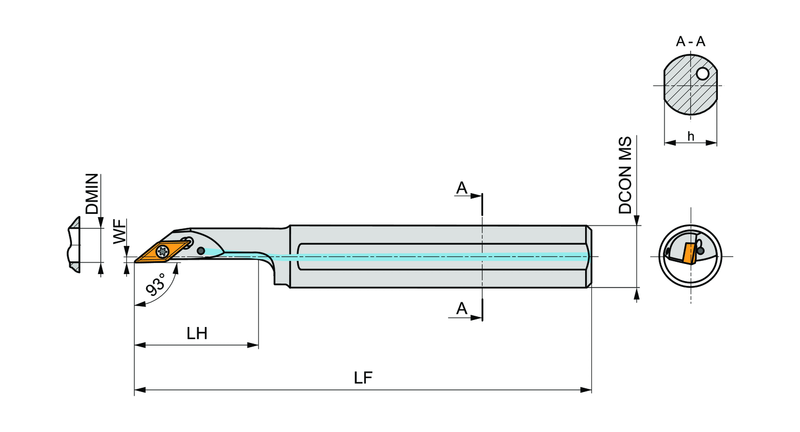

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6759718
EAN3603602950642
File Type Download
A20R-SVJBR 11 — 3D Model STP Download
A20R-SVJBR 11 — 2D Model DXF Download
A20R-SVJBR 11 — Line Drawing PDF Download
