A25S-SVJBR 11
A25S-SVJBR 11
A25S-SVJBR 11

A25S-SVJBR 11

UGC DOR6759720
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$293.00 CAD - $293.00 CAD
$293.00 CAD
$293.00 CAD - $293.00 CAD
$293.00 CAD

Vendu en lots de : 1

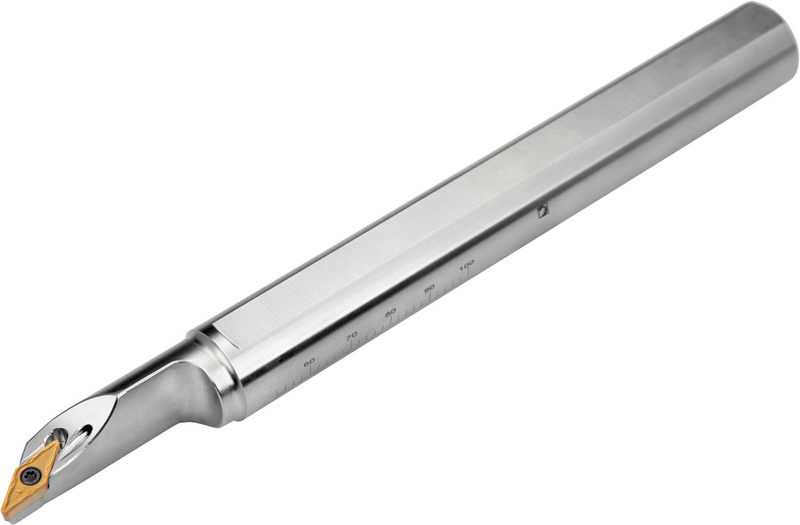

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 35° avec un diamètre de cercle inscrit de 6,35 mm, épaisseur 3,18 mm (désignation ISO VB.. 1103.. ), coupe à droite 93° avec queue déportée, en acier avec trou de refroidissement, diamètre 25 mm x 250 mm de long pour copiage frontal

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25S-SVJBR 11
Product Number6759720
Product FamilySVJB(RL) INT

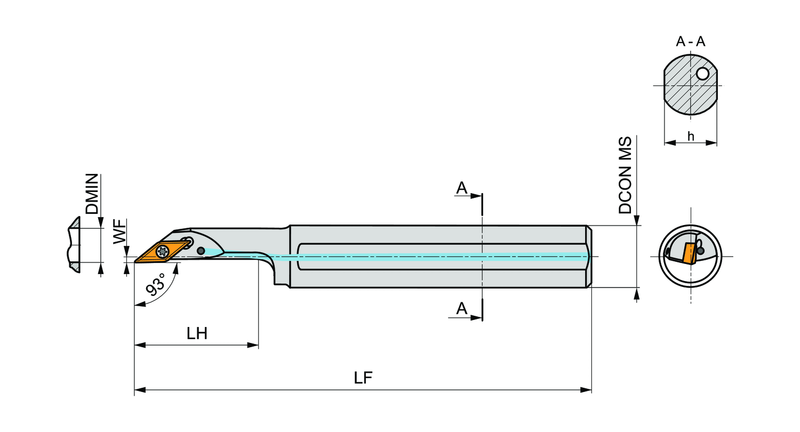

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6759720
EAN3603602950666
File Type Download
A25S-SVJBR 11 — 3D Model STP Download
A25S-SVJBR 11 — 2D Model DXF Download
A25S-SVJBR 11 — Line Drawing PDF Download
