315J10N-S90XN12N24

315J10N-S90XN12N24

UGC DOR6760154
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6,497.00 CAD - $6,497.00 CAD
$6,497.00 CAD
$6,497.00 CAD - $6,497.00 CAD
$6,497.00 CAD

Vendu en lots de : 1

Fraise-scie à géométrie positive/négative utilisant 20 plaquettes double-face XNHQ 1205..., diamètre de coupe 315mm avec un angle d'attaque de 90° et un alésage de connexion de 50mm selon DIN 8030, pour le fraisage de rainures profondes avec une largeur de coupe de 19,0 ÷ 24,3mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)315J10N-S90XN12N24
Product Number6760154
Product FamilyS90CN(XN)

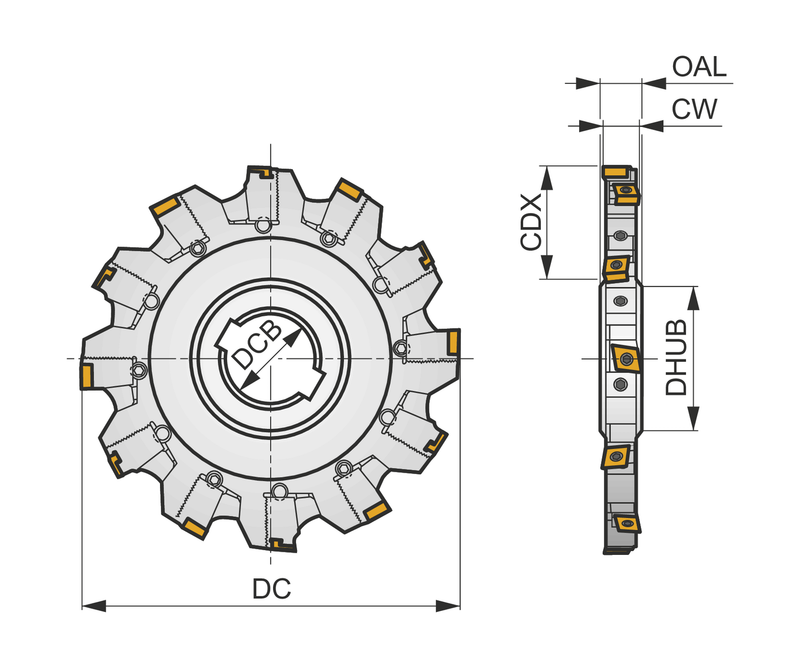

Dimensions
Cutting Diameter — in (DC)12.402"
Cutting Diameter — mm (DC)315.0 mm
Overall Length — in (OAL)0.945"
Overall Length — mm (OAL)24.0 mm
Number of Flutes (NOF)20
Tool Information
Tool DesignS90CN(XN)
ShankFraise à plaquettes DIN 8030 – fraise disque
Direction of ToolD'accord
Reference Numbers
EDP Number6760154
EAN3603602955005
File Type Download
315J10N-S90XN12N24 — 3D Model STP Download
315J10N-S90XN12N24 — 2D Model DXF Download
315J10N-S90XN12N24 — Line Drawing PDF Download
