160H05N-S90XN12N24
160H05N-S90XN12N24
160H05N-S90XN12N24

160H05N-S90XN12N24

UGC DOR6760157
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,861.00 CAD - $2,861.00 CAD
$2,861.00 CAD
$2,861.00 CAD - $2,861.00 CAD
$2,861.00 CAD

Vendu en lots de : 1

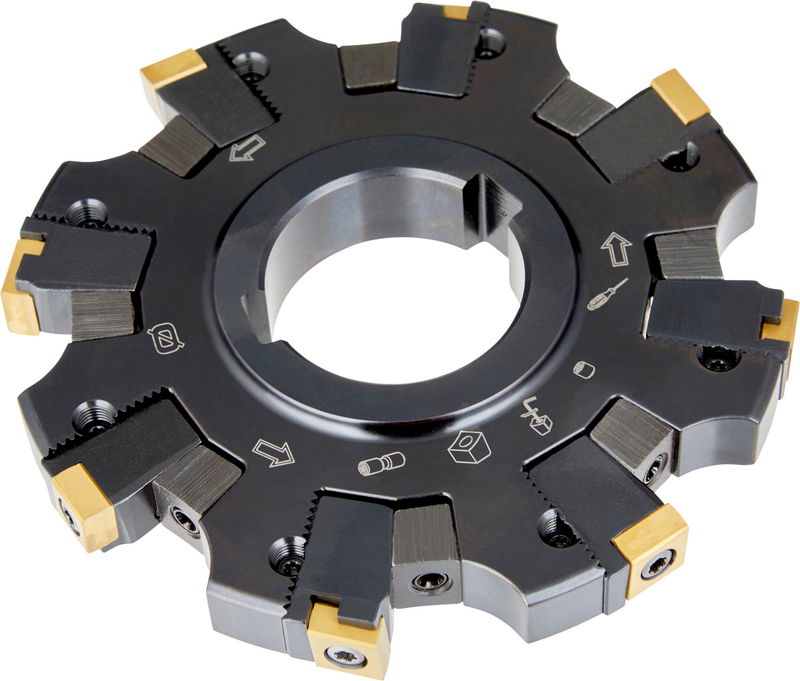

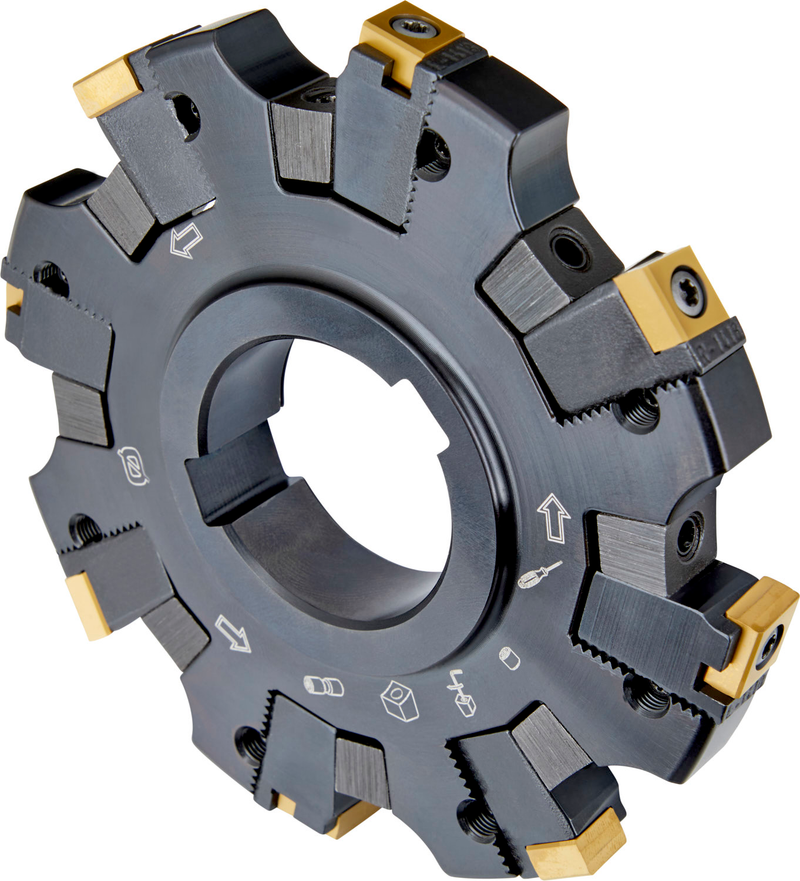

Fraise-scie à géométrie positive/négative qui utilise 10 plaquettes double-face XNHQ 1205..., diamètre de coupe 160 mm avec un angle d'attaque de 90° et un alésage de connexion de 40 mm selon DIN 8030, pour le fraisage de gorges profondes avec une largeur de coupe de 19,0 à 24,3 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)160H05N-S90XN12N24
Product Number6760157
Product FamilyS90CN(XN)

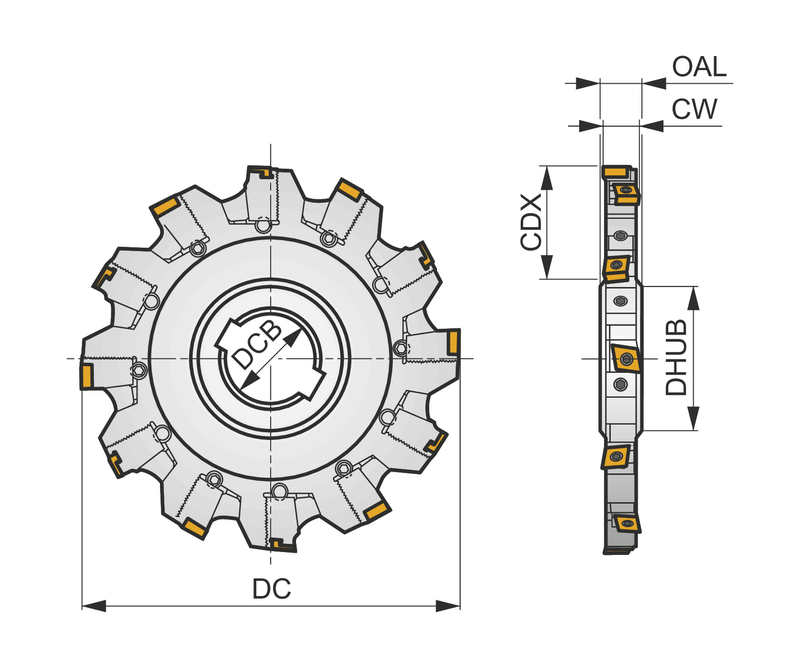

Dimensions
Cutting Diameter — in (DC)6.299"
Cutting Diameter — mm (DC)160.0 mm
Overall Length — in (OAL)0.945"
Overall Length — mm (OAL)24.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignS90CN(XN)
ShankFraise hémisphérique DIN 8030 – fraise disque
Direction of ToolD'accord
Reference Numbers
EDP Number6760157
EAN3603602955036
File Type Download
160H05N-S90XN12N24 — 3D Model STP Download
160H05N-S90XN12N24 — 2D Model DXF Download
160H05N-S90XN12N24 — Line Drawing PDF Download
