315K10N-S90XN16N30

315K10N-S90XN16N30

UGC DOR6760158
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6,729.00 CAD - $6,729.00 CAD
$6,729.00 CAD
$6,729.00 CAD - $6,729.00 CAD
$6,729.00 CAD

Vendu en lots de : 1

Fraise-scie avec géométrie positive/négative qui utilise 20 plaquettes double-face XNHQ 1606.., diamètre de coupe 315 mm avec un angle d'attaque de 90° et un alésage de raccordement de 60 mm selon DIN 8030, pour le fraisage de rainures profondes avec une largeur de coupe de 24,5 ÷ 30,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)315K10N-S90XN16N30
Product Number6760158
Product FamilyS90CN(XN)

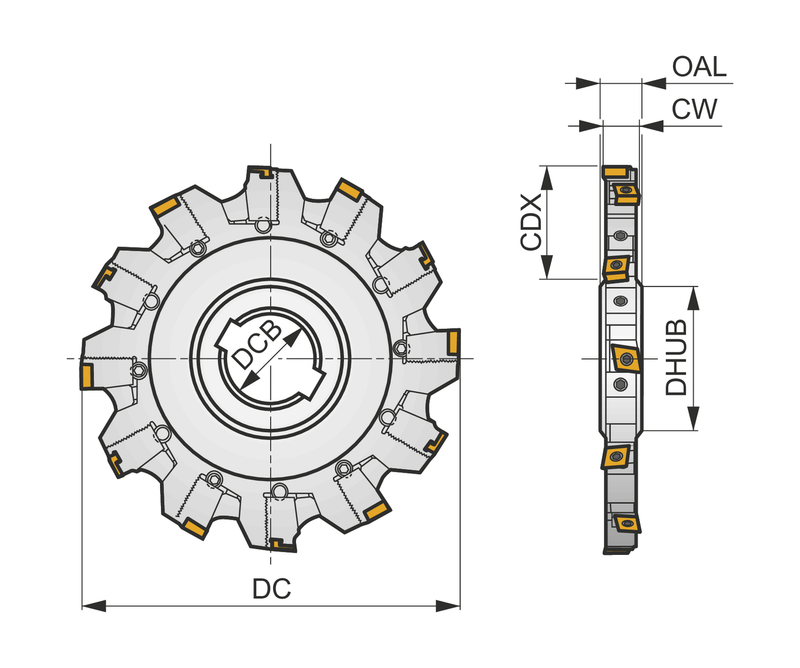

Dimensions
Cutting Diameter — in (DC)12.402"
Cutting Diameter — mm (DC)315.0 mm
Overall Length — in (OAL)1.181"
Overall Length — mm (OAL)30.0 mm
Number of Flutes (NOF)20
Tool Information
Tool DesignS90CN(XN)
ShankFraise deux tailles DIN 8030 – Fraise disque
Direction of ToolGauche
Reference Numbers
EDP Number6760158
EAN3603602955043
File Type Download
315K10N-S90XN16N30 — 3D Model STP Download
315K10N-S90XN16N30 — 2D Model DXF Download
315K10N-S90XN16N30 — Line Drawing PDF Download
