250J08N-S90XN16N30

250J08N-S90XN16N30

UGC DOR6760159
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4,731.00 CAD - $4,731.00 CAD
$4,731.00 CAD
$4,731.00 CAD - $4,731.00 CAD
$4,731.00 CAD

Vendu en lots de : 1

Fraise-disque à géométrie positive/négative qui utilise 16 plaquettes double-face XNHQ 1606.., diamètre de coupe 250 mm avec angle d'attaque de 90° et alésage de raccordement de 50 mm selon DIN 8030, pour le fraisage de rainures profondes avec une largeur de coupe de 24,5 à 30,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250J08N-S90XN16N30
Product Number6760159
Product FamilyS90CN(XN)

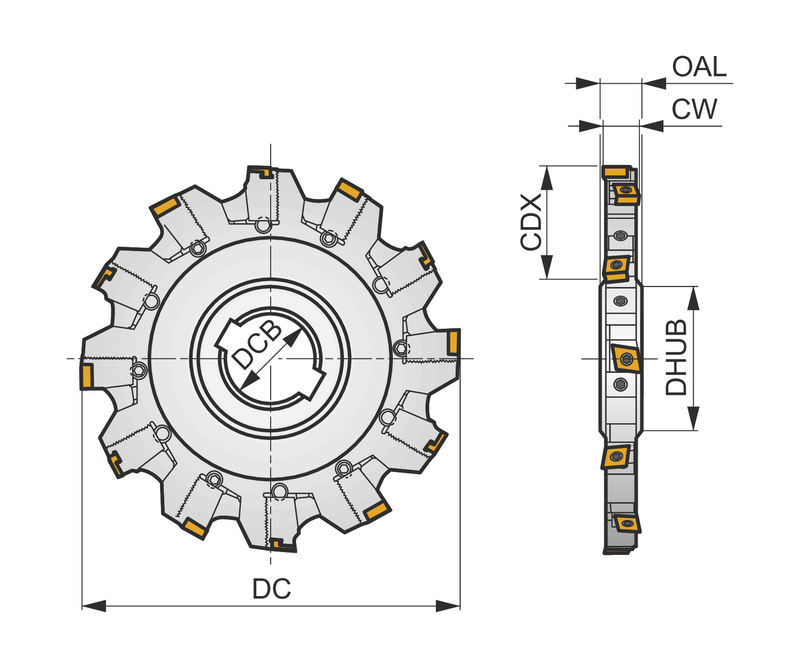

Dimensions
Cutting Diameter — in (DC)9.843"
Cutting Diameter — mm (DC)250.0 mm
Overall Length — in (OAL)1.181"
Overall Length — mm (OAL)30.0 mm
Number of Flutes (NOF)16
Tool Information
Tool DesignS90CN(XN)
ShankFraise coquille DIN 8030 – fraise à disque
Direction of ToolD'accord
Reference Numbers
EDP Number6760159
EAN3603602955050
File Type Download
250J08N-S90XN16N30 — 3D Model STP Download
250J08N-S90XN16N30 — 2D Model DXF Download
250J08N-S90XN16N30 — Line Drawing PDF Download
