200C07R-S90CN10N18

200C07R-S90CN10N18

UGC DOR6760163
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3,783.00 CAD - $3,783.00 CAD
$3,783.00 CAD
$3,783.00 CAD - $3,783.00 CAD
$3,783.00 CAD

Vendu en lots de : 1

Fraise-scie à géométrie positive/négative qui utilise 14 plaquettes double face CNHQ 1005..., diamètre de coupe 200 mm avec angle d'attaque de 90° et alésage de raccordement de 40 mm selon DIN 8030-C, longueur de dépassement de 50 mm pour le fraisage de rainures profondes avec une largeur de coupe de 14,0 ÷ 18,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200C07R-S90CN10N18
Product Number6760163
Product FamilyS90CN(XN)

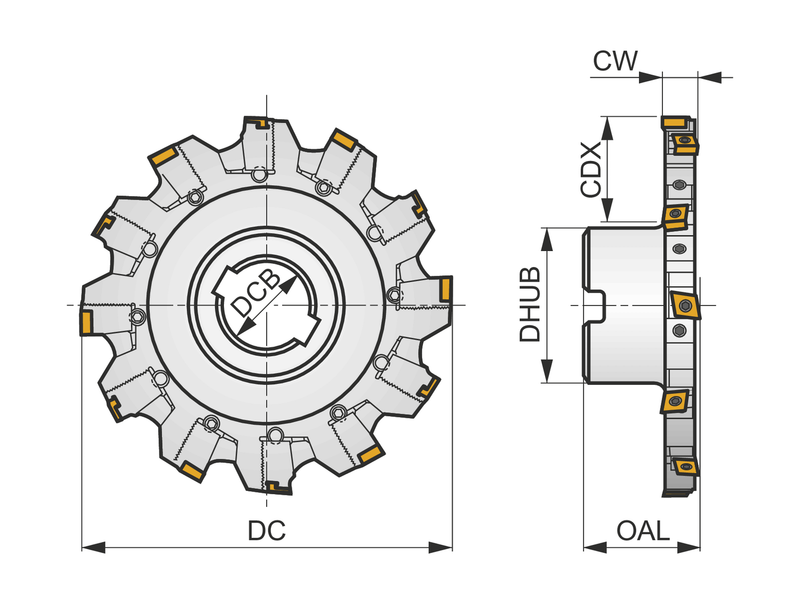

Dimensions
Cutting Diameter — in (DC)7.874"
Cutting Diameter — mm (DC)200.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Number of Flutes (NOF)14
Tool Information
Tool DesignS90CN(XN)
ShankFraise à surfacer-planer DIN 8030 C
Direction of ToolD'accord
Reference Numbers
EDP Number6760163
EAN3603602955098
File Type Download
200C07R-S90CN10N18 — 3D Model STP Download
200C07R-S90CN10N18 — 2D Model DXF Download
200C07R-S90CN10N18 — Line Drawing PDF Download
