160B05R-S90XN12N24
160B05R-S90XN12N24
160B05R-S90XN12N24

160B05R-S90XN12N24

UGC DOR6760164
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,992.00 CAD - $2,992.00 CAD
$2,992.00 CAD
$2,992.00 CAD - $2,992.00 CAD
$2,992.00 CAD

Vendu en lots de : 1

Fraise-disque à géométrie positive/négative qui utilise 10 plaquettes double face XNHQ 1205..., diamètre de coupe 160 mm avec angle d'attaque de 90° et alésage de raccordement de 40 mm selon DIN 8030-B, longueur de dépassement de 50 mm pour le fraisage de gorges profondes avec une largeur de coupe de 19,0 ÷ 24,3 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)160B05R-S90XN12N24
Product Number6760164
Product FamilyS90CN(XN)

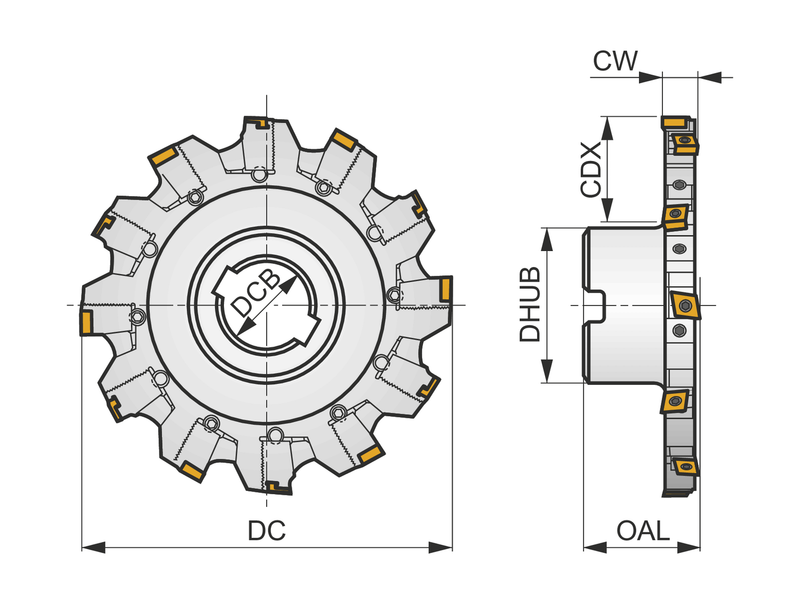

Dimensions
Cutting Diameter — in (DC)6.299"
Cutting Diameter — mm (DC)160.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignS90CN(XN)
ShankFraise à surfacer-dresser DIN 8030 B
Direction of ToolGauche
Reference Numbers
EDP Number6760164
EAN3603602955104
File Type Download
160B05R-S90XN12N24 — 3D Model STP Download
160B05R-S90XN12N24 — 2D Model DXF Download
160B05R-S90XN12N24 — Line Drawing PDF Download
