200C06R-S90XN12N24

200C06R-S90XN12N24

UGC DOR6760165
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3,536.00 CAD - $3,536.00 CAD
$3,536.00 CAD
$3,536.00 CAD - $3,536.00 CAD
$3,536.00 CAD

Vendu en lots de : 1

Fraise-scie à géométrie positive/négative qui utilise 12 plaquettes double face XNHQ 1205..., diamètre de coupe 200 mm avec angle d'attaque de 90° et alésage de raccordement de 40 mm selon DIN 8030-C, longueur de saillie de 50 mm pour le fraisage de rainures profondes avec une largeur de coupe de 19,0 ÷ 24,3 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200C06R-S90XN12N24
Product Number6760165
Product FamilyS90CN(XN)

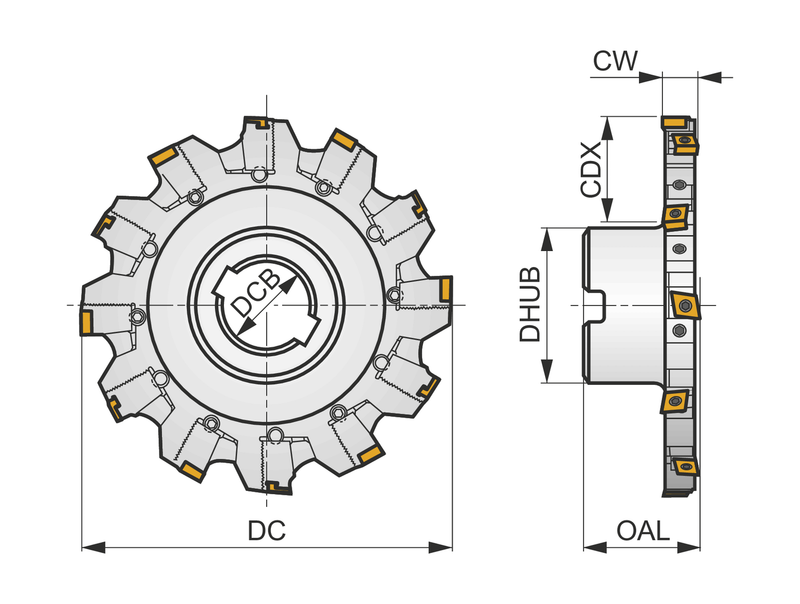

Dimensions
Cutting Diameter — in (DC)7.874"
Cutting Diameter — mm (DC)200.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignS90CN(XN)
ShankFraise-cloche DIN 8030 C
Direction of ToolD'accord
Reference Numbers
EDP Number6760165
EAN3603602955111
File Type Download
200C06R-S90XN12N24 — 3D Model STP Download
200C06R-S90XN12N24 — 2D Model DXF Download
200C06R-S90XN12N24 — Line Drawing PDF Download
