32A3R043M16-SAD16E-C
32A3R043M16-SAD16E-C
32A3R043M16-SAD16E-C

32A3R043M16-SAD16E-C

UGC DOR6760167
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$359.00 CAD - $359.00 CAD
$359.00 CAD
$359.00 CAD - $359.00 CAD
$359.00 CAD

Vendu en lots de : 1

Fraise à épaulement à géométrie positive/négative qui utilise 3 plaquettes simple face ADMX 1606... ou ADEX 1606..., diamètre de coupe 32 mm avec angle d'attaque de 90° et queue filetée M16 pour porte-outils modulaires standards, longueur de dépassement 43 mm, arrosage central pour le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en piqué et le fraisage en piqué progressif avec une profondeur de coupe maximale de 13,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A3R043M16-SAD16E-C
Product Number6760167
Product FamilySAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

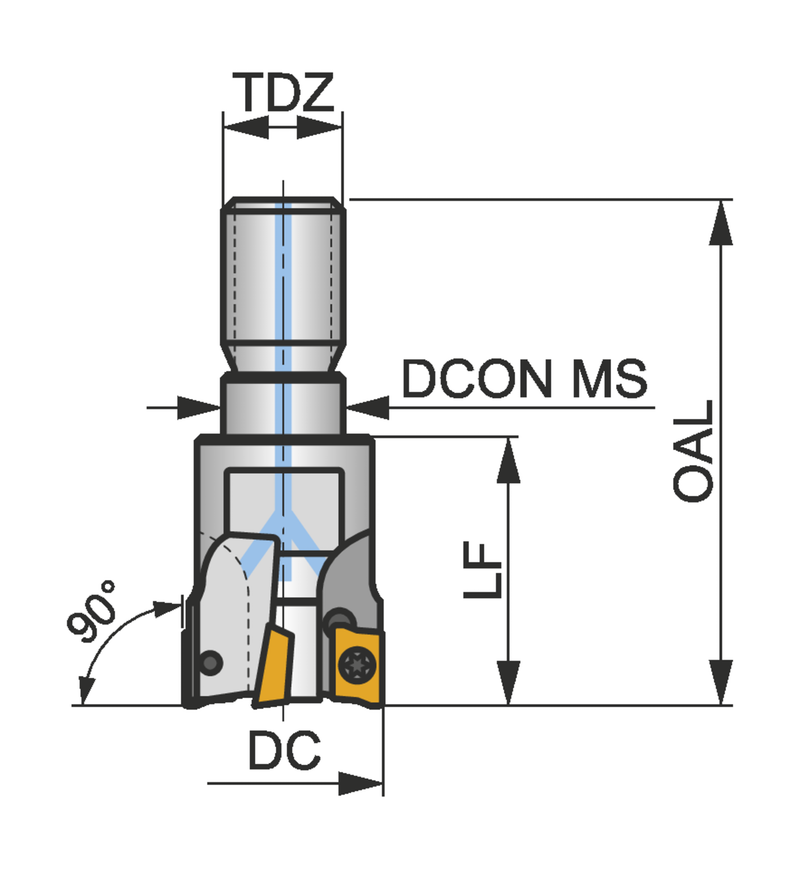

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSAD16E
ShankRaccord fileté
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760167
EAN3603602955135
File Type Download
32A3R043M16-SAD16E-C — 3D Model STP Download
32A3R043M16-SAD16E-C — 2D Model DXF Download
32A3R043M16-SAD16E-C — Line Drawing PDF Download
