100A08R-S90SD12-C
100A08R-S90SD12-C
100A08R-S90SD12-C

100A08R-S90SD12-C

UGC DOR6760183
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,266.00 CAD - $1,266.00 CAD
$1,266.00 CAD
$1,266.00 CAD - $1,266.00 CAD
$1,266.00 CAD

Vendu en lots de : 1

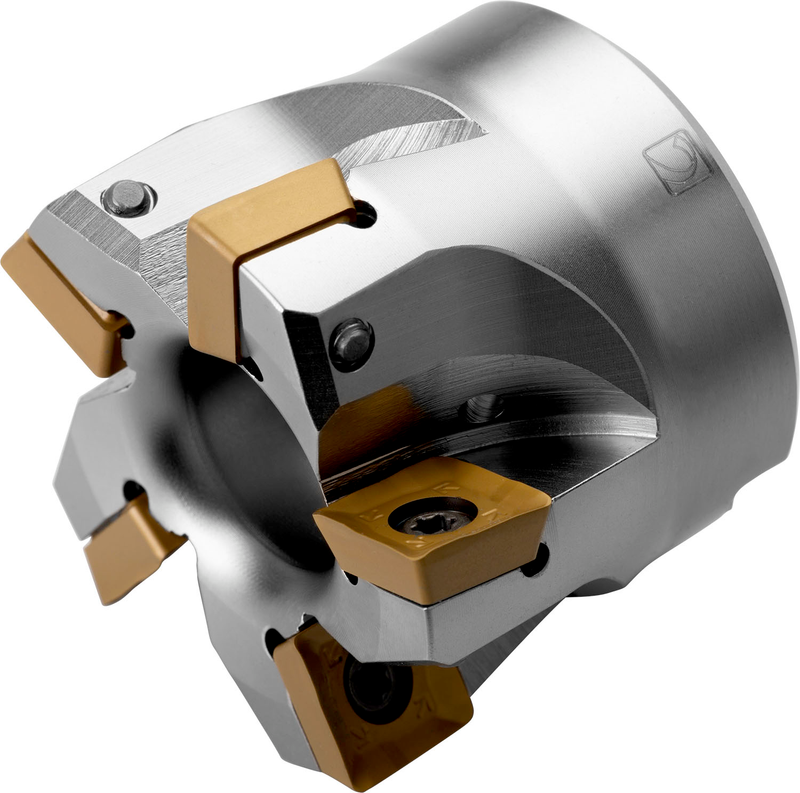

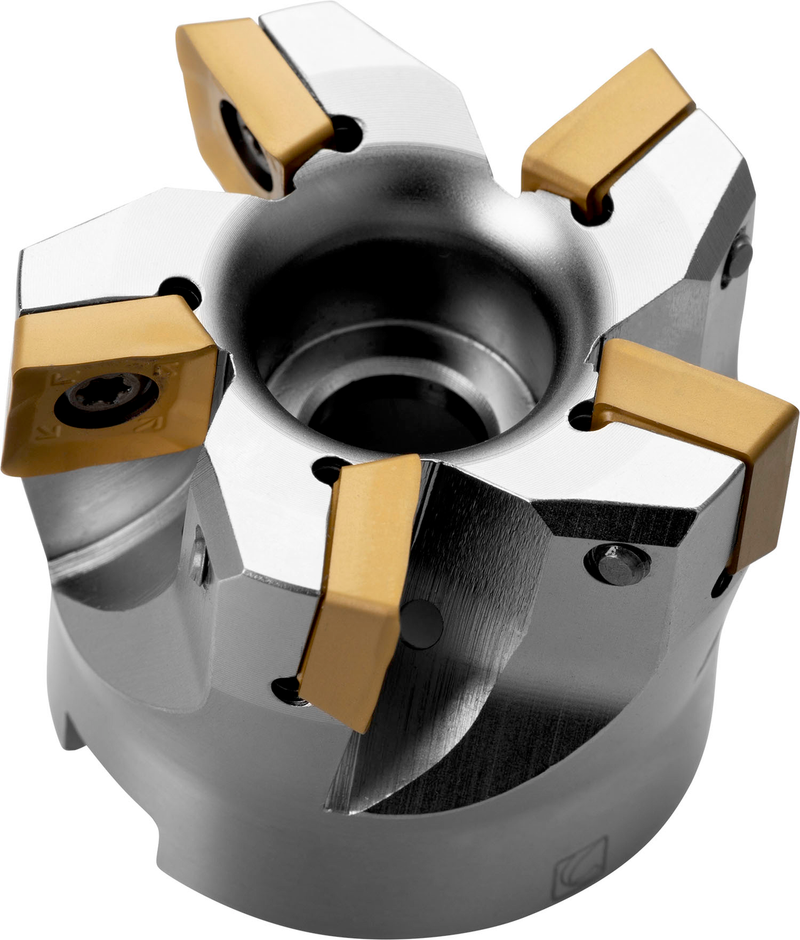

Fraise à épaule avec géométrie positive/négative utilisant 8 plaquettes simple face SDMT 1205..., diamètre de coupe de 100 mm avec angle d'attaque de 90° et alésage de raccordement de 32 mm selon DIN 8030-A, longueur en porte-à-faux de 50 mm, lubrification par l'intérieur pour le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 10,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A08R-S90SD12-C
Product Number6760183
Product FamilySSD12
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

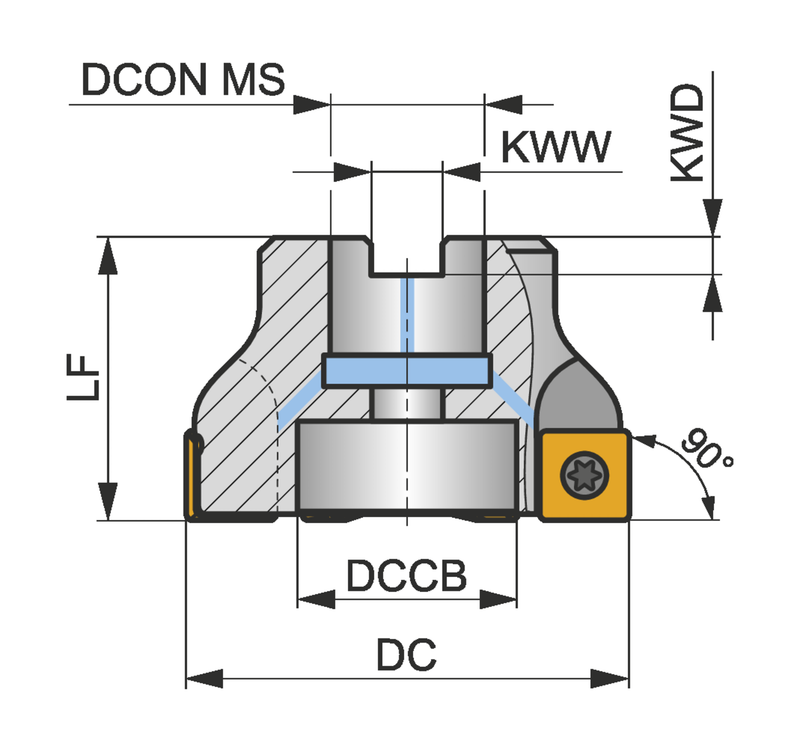

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSSD12
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760183
EAN3603602955296
File Type Download
100A08R-S90SD12-C — 3D Model STP Download
100A08R-S90SD12-C — 2D Model DXF Download
100A08R-S90SD12-C — Line Drawing PDF Download
