100A08R-S90AD16E-C
100A08R-S90AD16E-C
100A08R-S90AD16E-C

100A08R-S90AD16E-C

UGC DOR6760188
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$895.00 CAD - $895.00 CAD
$895.00 CAD
$895.00 CAD - $895.00 CAD
$895.00 CAD

Vendu en lots de : 1

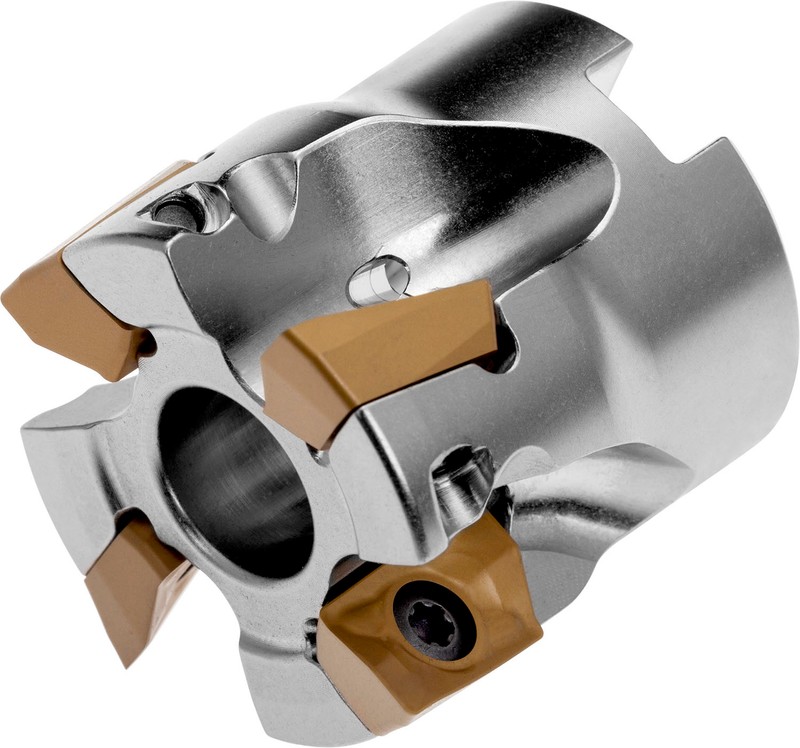

Fraise à épaule à géométrie positive/négative qui utilise 8 plaquettes ADMX 1606.. ou ADEX 1606.. à simple face, diamètre de coupe 100mm avec angle d'attaque de 90° et alésage de raccordement de 32mm selon DIN 8030-A, longueur de saillie de 50mm, arrosage central et pas différentiel pour le fraisage en copie, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, l'interpolation hélicoïdale, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 13,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A08R-S90AD16E-C
Product Number6760188
Product FamilySAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

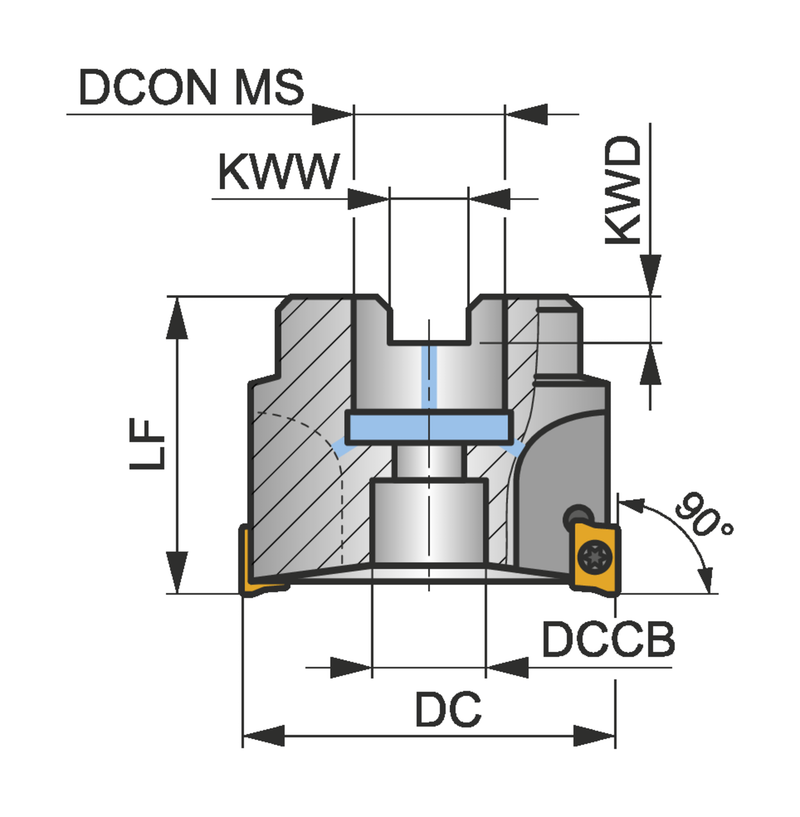

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSAD16E
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760188
EAN3603602955340
File Type Download
100A08R-S90AD16E-C — 3D Model STP Download
100A08R-S90AD16E-C — 2D Model DXF Download
100A08R-S90AD16E-C — Line Drawing PDF Download
