16A2R027B16-SAD11E-C
16A2R027B16-SAD11E-C
16A2R027B16-SAD11E-C

16A2R027B16-SAD11E-C

UGC DOR6760196
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$285.00 CAD - $285.00 CAD
$285.00 CAD
$285.00 CAD - $285.00 CAD
$285.00 CAD

Vendu en lots de : 1

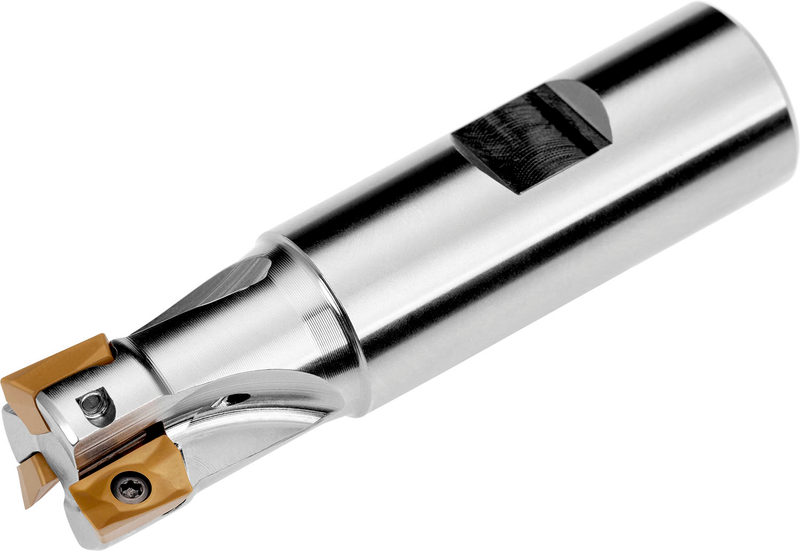

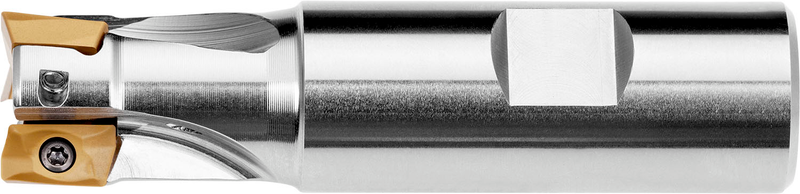

Fraise à épaule avec géométrie positive/négative utilisant 2 plaquettes simple-face ADMX 11T3... ou ADEX 11T3..., diamètre de coupe 16 mm avec un angle d'attaque de 90° et une queue Weldon de 16 mm selon DIN 1835B, longueur utile de 27 mm et longueur totale de 75 mm, arrosage central pour le fraisage en plongée progressive, le surfaçage, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, l'interpolation hélicoïdale, le fraisage en bout et le fraisage en plongée progressive, avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16A2R027B16-SAD11E-C
Product Number6760196
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

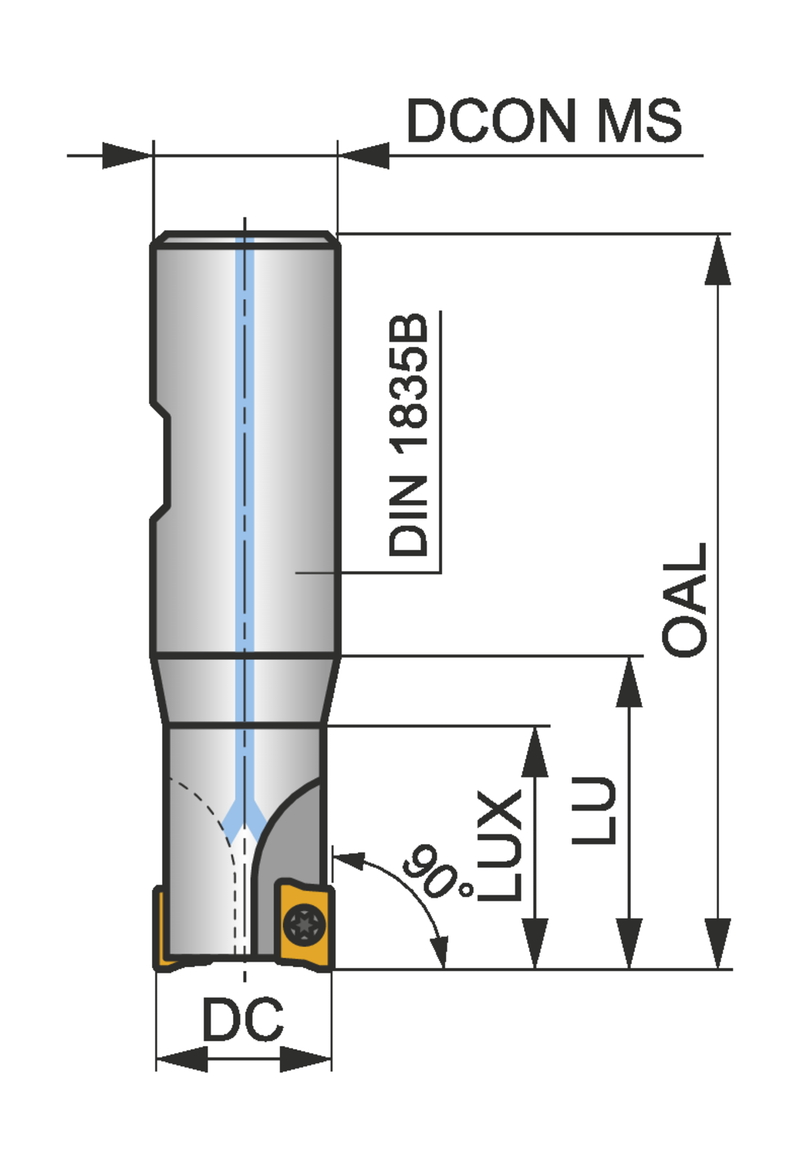

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)2.953"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760196
EAN3603602955425
File Type Download
16A2R027B16-SAD11E-C — 3D Model STP Download
16A2R027B16-SAD11E-C — 2D Model DXF Download
16A2R027B16-SAD11E-C — Line Drawing PDF Download
