20A2R032B20-SAD11E-C
20A2R032B20-SAD11E-C
20A2R032B20-SAD11E-C

20A2R032B20-SAD11E-C

UGC DOR6760205
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$307.00 CAD - $307.00 CAD
$307.00 CAD
$307.00 CAD - $307.00 CAD
$307.00 CAD

Vendu en lots de : 1

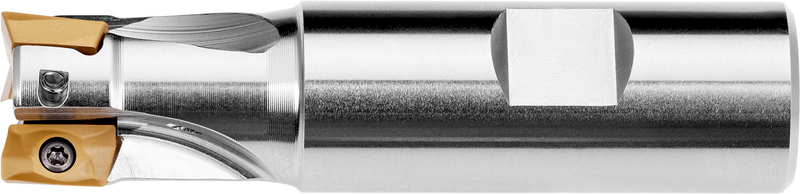

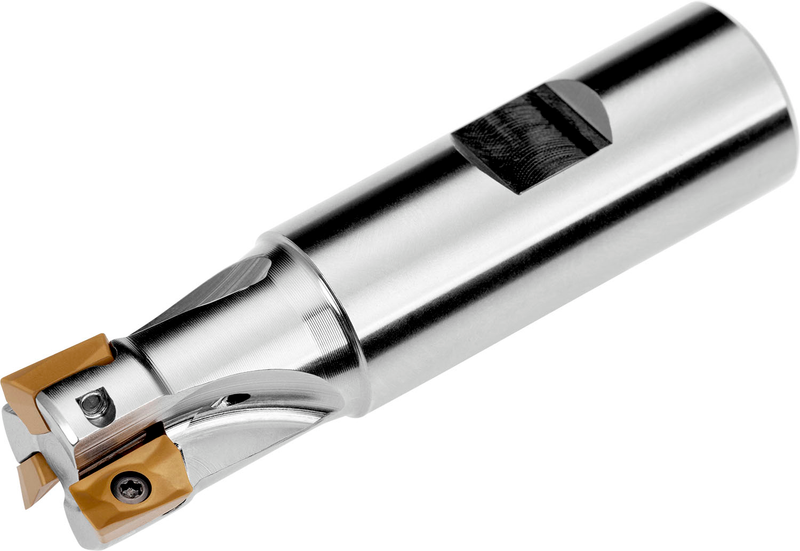

Fraise à épaulement à géométrie positive/négative utilisant 2 plaquettes simple face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe de 20 mm avec un angle d'attaque de 90° et une queue Weldon de 20 mm selon DIN 1835B, longueur fonctionnelle de 32 mm et longueur totale de 82 mm, arrosage par l'intérieur pour le copiage, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, l'interpolation, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20A2R032B20-SAD11E-C
Product Number6760205
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

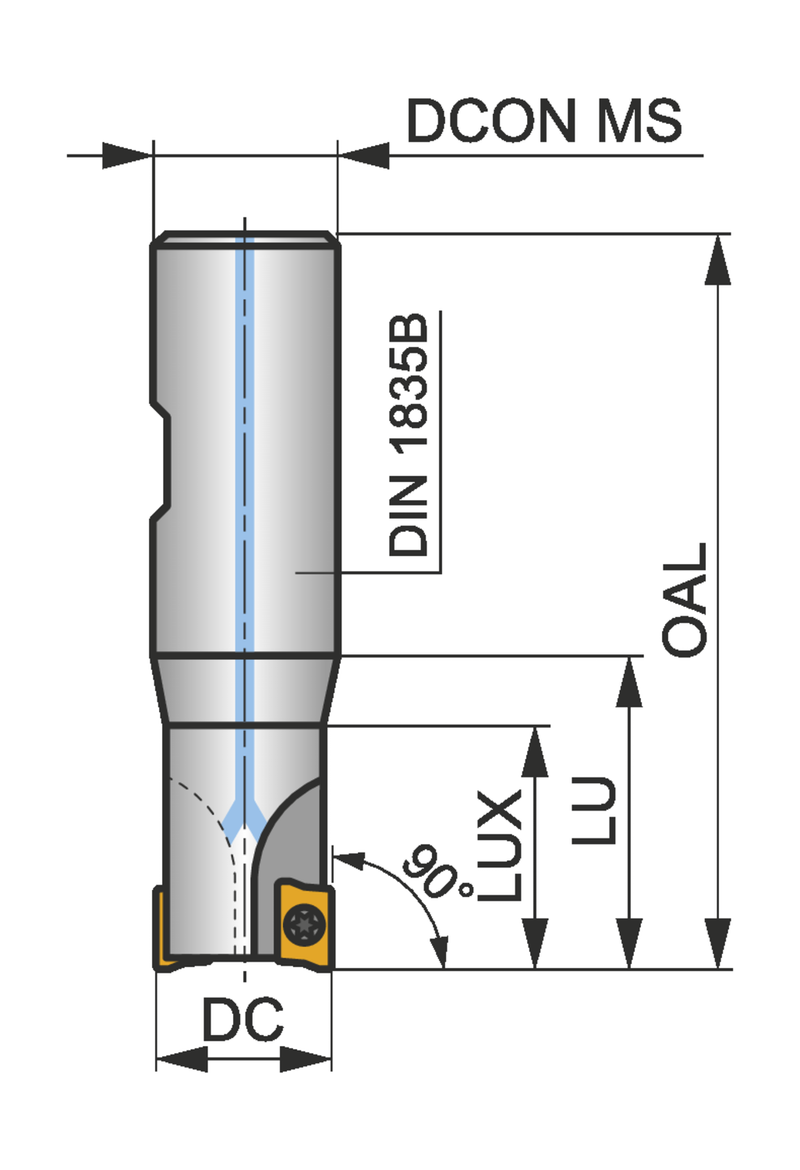

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.228"
Overall Length — mm (OAL)82.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760205
EAN3603602955517
File Type Download
20A2R032B20-SAD11E-C — 3D Model STP Download
20A2R032B20-SAD11E-C — 2D Model DXF Download
20A2R032B20-SAD11E-C — Line Drawing PDF Download
