25A4R042B25-SAD11E-C
25A4R042B25-SAD11E-C
25A4R042B25-SAD11E-C

25A4R042B25-SAD11E-C

UGC DOR6760207
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$356.00 CAD - $356.00 CAD
$356.00 CAD
$356.00 CAD - $356.00 CAD
$356.00 CAD

Vendu en lots de : 1

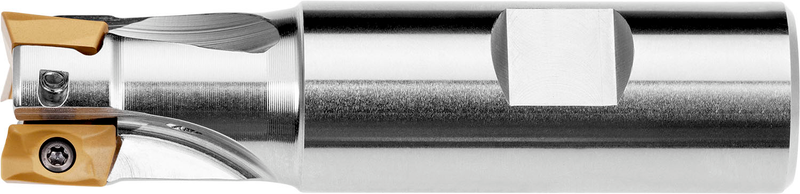

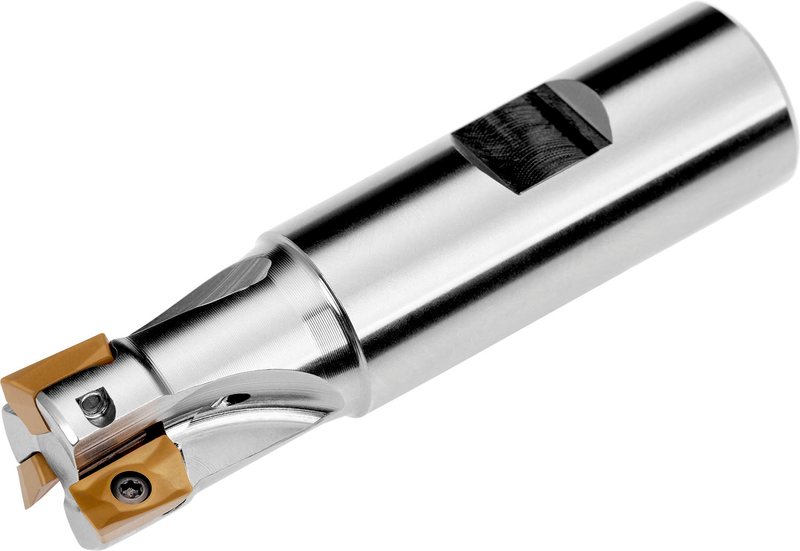

Fraise à épaule à géométrie positive/négative qui utilise 4 plaquettes simple face ADMX 11T3... ou ADEX 11T3..., diamètre de coupe 25mm avec angle d'attaque de 90° et queue Weldon 25mm selon DIN 1835B, longueur fonctionnelle 42mm et longueur totale 98mm, arrosage central pour le fraisage de copie, le fraisage d'épaulement peu profond, le fraisage de rainure peu profond, le ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 9,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A4R042B25-SAD11E-C
Product Number6760207
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

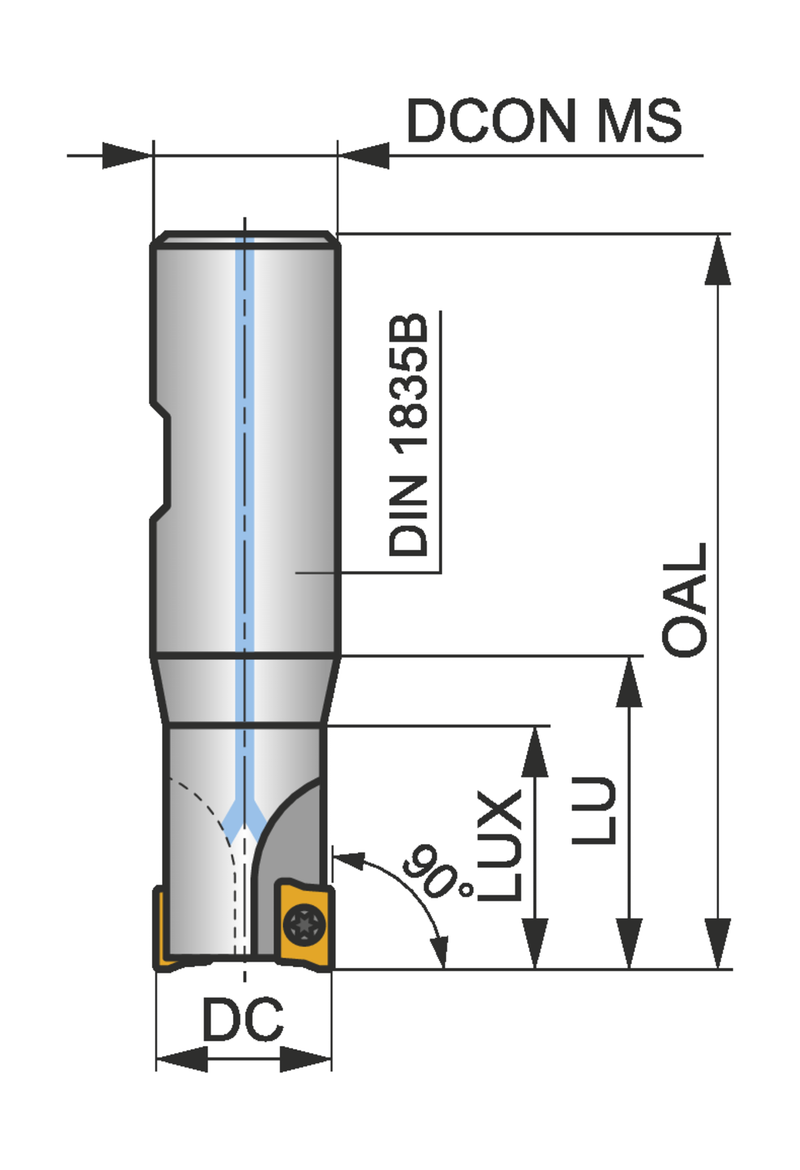

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)3.858"
Overall Length — mm (OAL)98.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760207
EAN3603602955531
File Type Download
25A4R042B25-SAD11E-C — 3D Model STP Download
25A4R042B25-SAD11E-C — 2D Model DXF Download
25A4R042B25-SAD11E-C — Line Drawing PDF Download
