25A4R033M12-SAD11E-C
25A4R033M12-SAD11E-C
25A4R033M12-SAD11E-C

25A4R033M12-SAD11E-C

UGC DOR6760216
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$329.00 CAD - $329.00 CAD
$329.00 CAD
$329.00 CAD - $329.00 CAD
$329.00 CAD

Vendu en lots de : 1

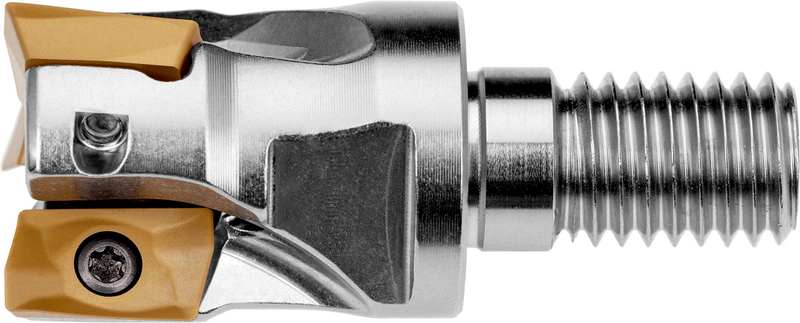

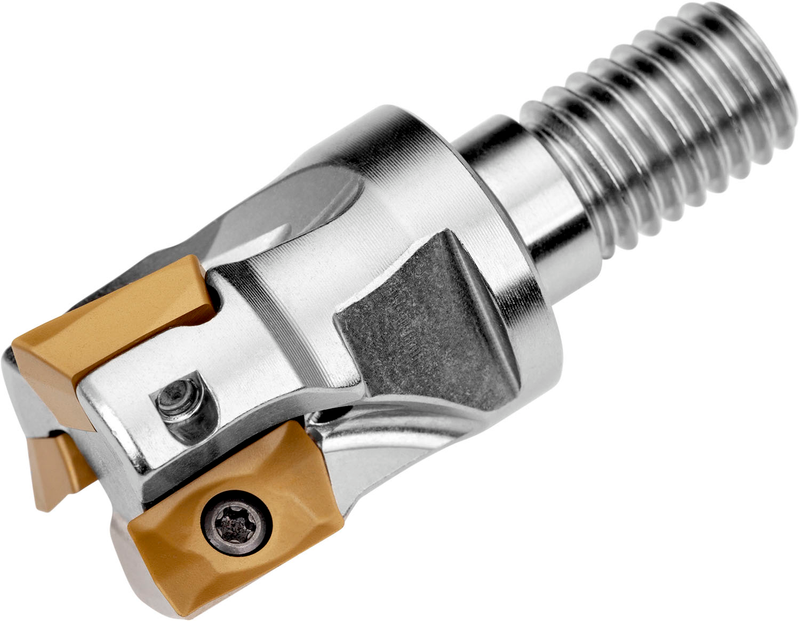

Fraise à épaulement à géométrie positive/négative qui utilise 4 plaquettes simple face ADMX 11T3... ou ADEX 11T3..., diamètre de coupe de 25 mm avec un angle d'attaque de 90° et une queue filetée M12 pour les porte-outils modulaires standard, longueur de dépassement de 33 mm, arrosage par l'intérieur pour le fraisage en copie, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A4R033M12-SAD11E-C
Product Number6760216
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

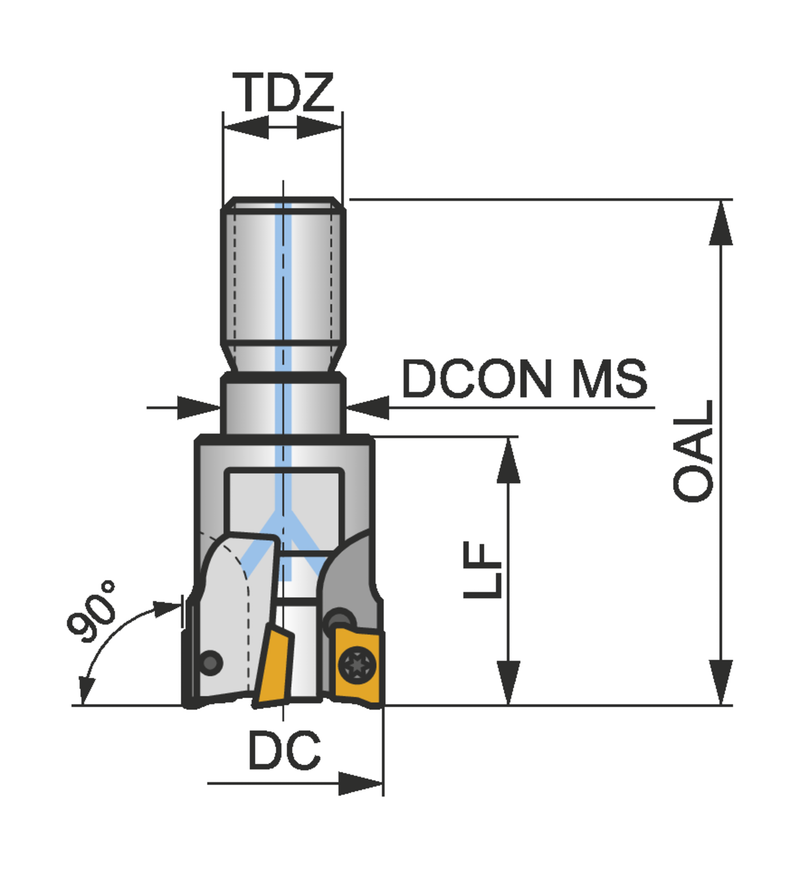

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)2.165"
Overall Length — mm (OAL)55.0 mm
Functional Length — mm (LF)33.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M12
Tool Information
Tool DesignSAD11E
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760216
EAN3603602955623
File Type Download
25A4R033M12-SAD11E-C — 3D Model STP Download
25A4R033M12-SAD11E-C — 2D Model DXF Download
25A4R033M12-SAD11E-C — Line Drawing PDF Download
