125A12R-S90AD11E-C
125A12R-S90AD11E-C
125A12R-S90AD11E-C

125A12R-S90AD11E-C

UGC DOR6760220
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$960.00 CAD - $960.00 CAD
$960.00 CAD
$960.00 CAD - $960.00 CAD
$960.00 CAD

Vendu en lots de : 1

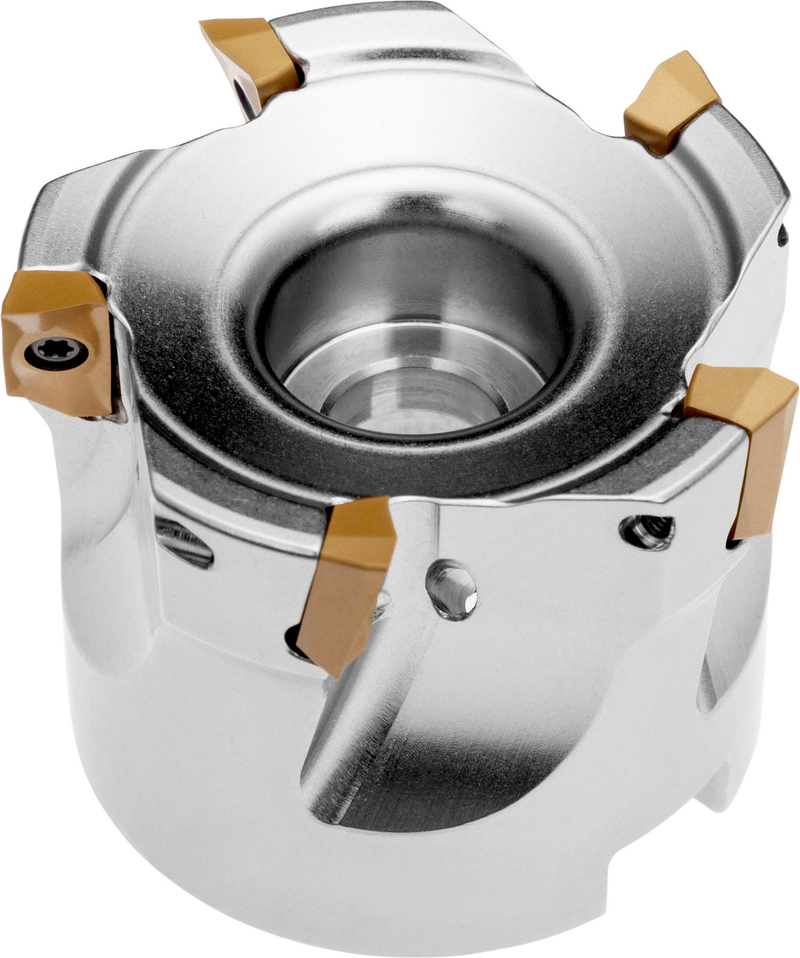

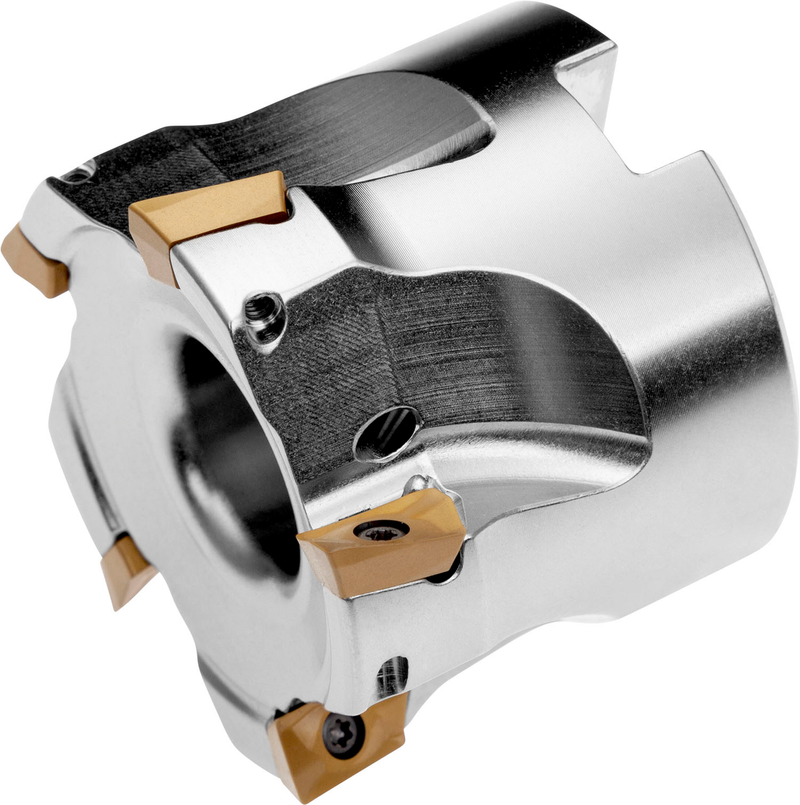

Fraise à épaulement à géométrie positive/négative qui utilise 12 plaquettes unilatérales ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 125 mm avec un angle d'attaque de 90° et un alésage de raccordement de 40 mm selon DIN 8030-A, une longueur de dépassement de 63 mm, un arrosage interne et un pas différentiel pour le fraisage de copiage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'usinage en ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A12R-S90AD11E-C
Product Number6760220
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

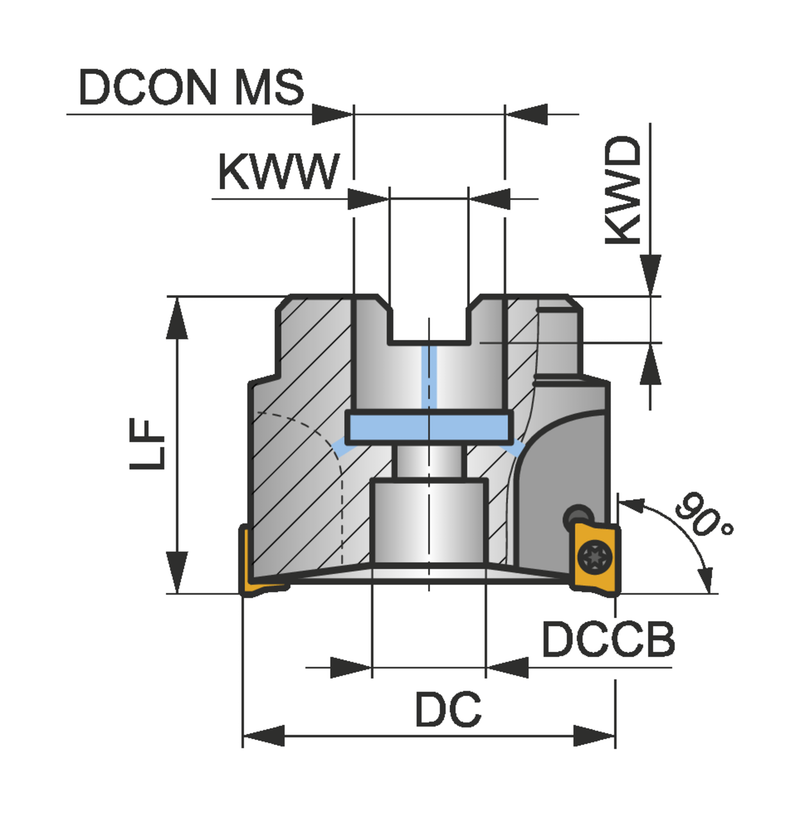

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignSAD11E
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760220
EAN3603602955661
File Type Download
125A12R-S90AD11E-C — 3D Model STP Download
125A12R-S90AD11E-C — 2D Model DXF Download
125A12R-S90AD11E-C — Line Drawing PDF Download
