20A3R026M10-SAD11E-C
20A3R026M10-SAD11E-C
20A3R026M10-SAD11E-C

20A3R026M10-SAD11E-C

UGC DOR6760222
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$298.00 CAD - $298.00 CAD
$298.00 CAD
$298.00 CAD - $298.00 CAD
$298.00 CAD

Vendu en lots de : 1

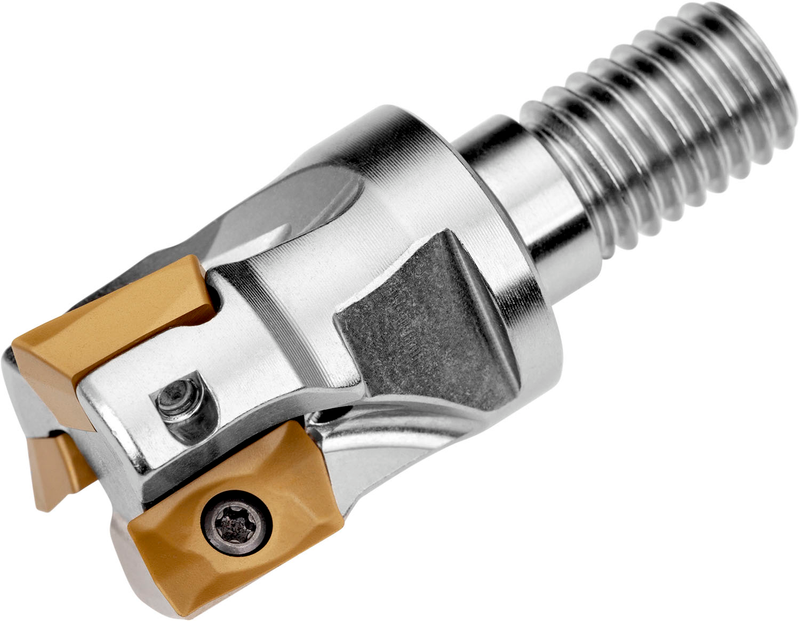

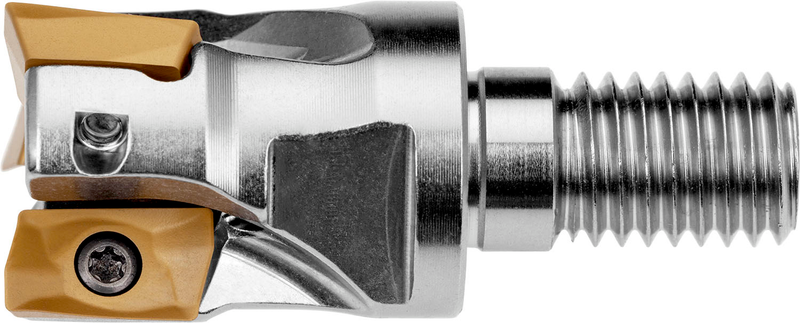

Fraise à épaulement à géométrie positive/négative qui utilise 3 plaquettes simple-face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 20 mm avec un angle d'attaque de 90° et une queue filetée M10 pour porte-outils modulaires standard, longueur de dépassement 26 mm, arrosage central pour le fraisage de copiage, le fraisage d'épaulement peu profond, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, le fraisage en hélice, le fraisage en plongée et le fraisage en plongée progressif avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20A3R026M10-SAD11E-C
Product Number6760222
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

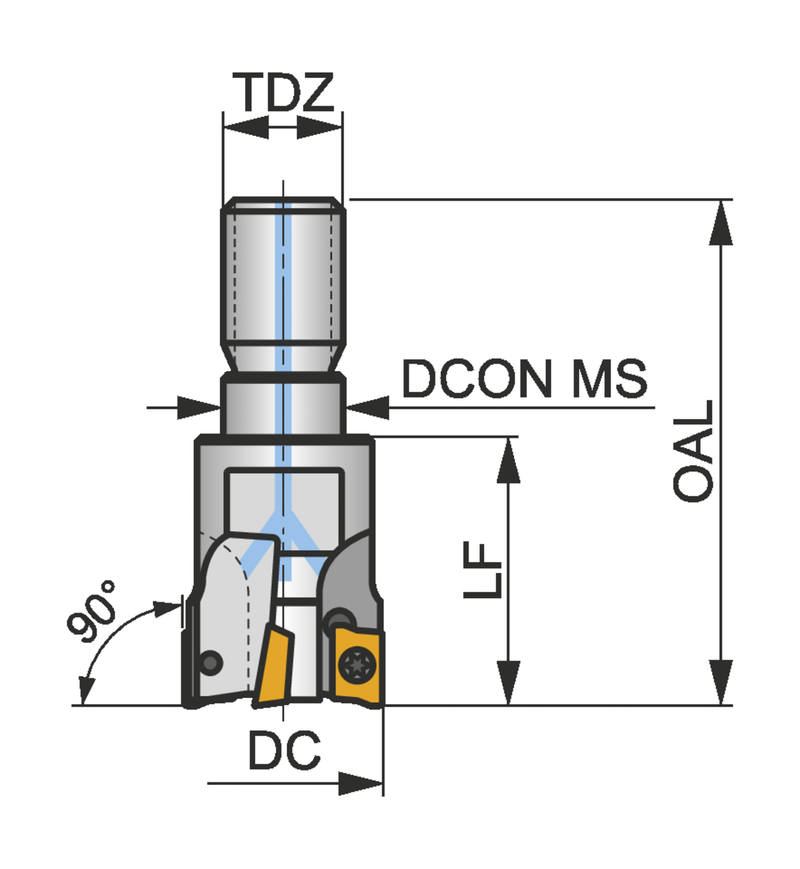

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)1.772"
Overall Length — mm (OAL)45.0 mm
Functional Length — mm (LF)26.0 mm
Connection Dia. — in (DCON)0.413"
Connection Dia. — mm (DCON)10.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M10
Tool Information
Tool DesignSAD11E
ShankAccouplement fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760222
EAN3603602955685
File Type Download
20A3R026M10-SAD11E-C — 3D Model STP Download
20A3R026M10-SAD11E-C — 2D Model DXF Download
20A3R026M10-SAD11E-C — Line Drawing PDF Download
