PXFNR 2525 R 15
PXFNR 2525 R 15
PXFNR 2525 R 15

PXFNR 2525 R 15

UGC DOR6760223
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$232.00 CAD - $232.00 CAD
$232.00 CAD
$232.00 CAD - $232.00 CAD
$232.00 CAD

Vendu en lots de : 1

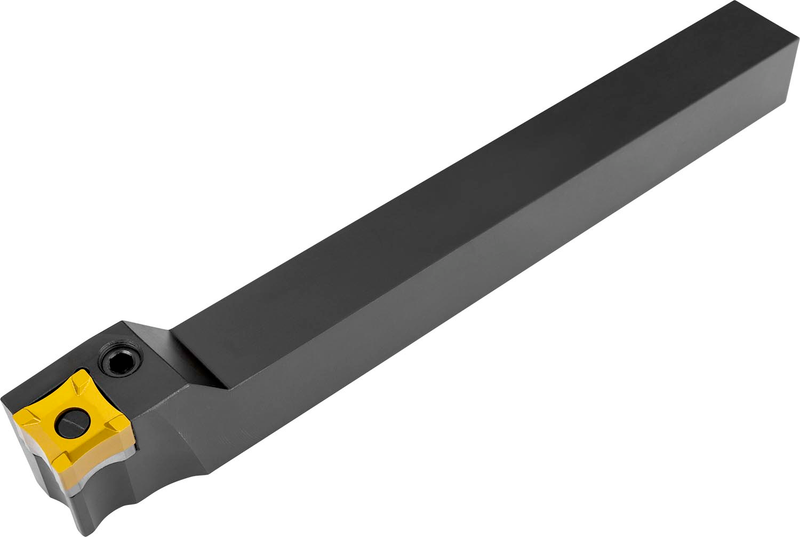

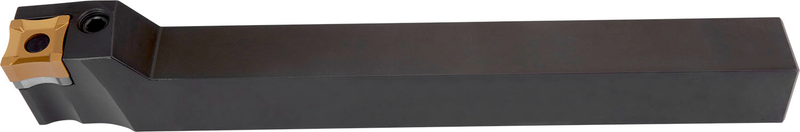

Outil d'écharpage à levier avec dépouille de 6° pour insert carré avec une longueur d'arête de coupe principale de 15,875mm (désignation SNMX 15-R.. ), droitier avec insert parallèle à la queue, hauteur 25mm, largeur 25mm et longueur 200mm pour l'ébavurage extérieur de tubes et tuyaux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PXFNR 2525 R 15
Product Number6760223
Product FamilyPXFN(RL) EXT
Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760223
EAN3603602955692
File Type Download

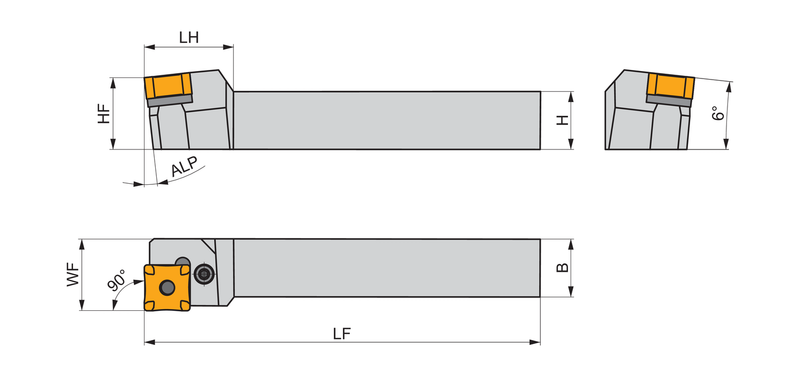

PXFNR 2525 R 15 — Line Drawing PDF Download
