PXFNL 3232 S 25
PXFNL 3232 S 25
PXFNL 3232 S 25

PXFNL 3232 S 25

UGC DOR6760228
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$356.00 CAD - $356.00 CAD
$356.00 CAD
$356.00 CAD - $356.00 CAD
$356.00 CAD

Vendu en lots de : 1

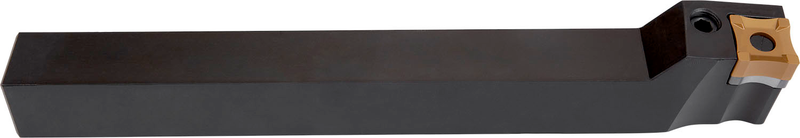

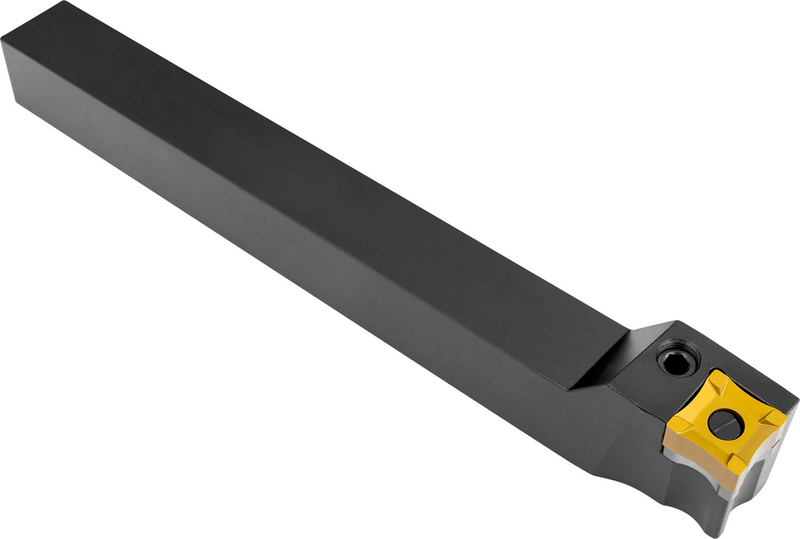

Outil d'écroutage à levier avec dépouille de 6° pour insert carré avec une longueur d'arête de coupe principale de 25,4 mm (désignation SNMX 25-R...), version à gauche avec insert parallèle à la queue, hauteur 32 mm, largeur 32 mm et longueur 250 mm pour l'ébavurage extérieur de tubes et tuyaux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PXFNL 3232 S 25
Product Number6760228
Product FamilyPXFN(RL) EXT

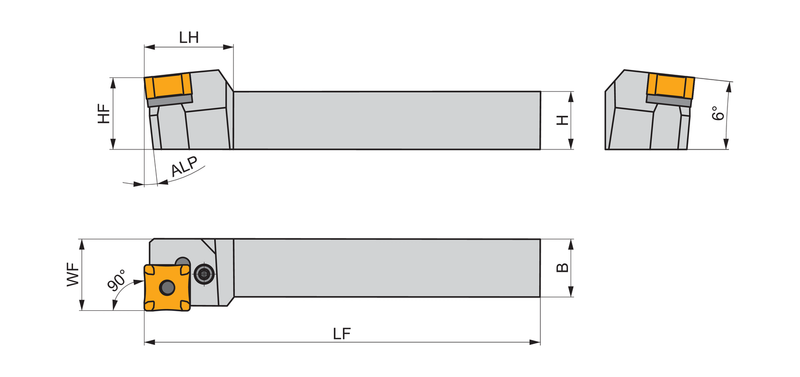

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760228
EAN3603602955746
File Type Download
PXFNL 3232 S 25 — 3D Model STP Download
PXFNL 3232 S 25 — Line Drawing PDF Download
