20E3R080A20-SZD07
20E3R080A20-SZD07
20E3R080A20-SZD07

20E3R080A20-SZD07

UGC DOR6760250
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$419.00 CAD - $419.00 CAD
$419.00 CAD
$419.00 CAD - $419.00 CAD
$419.00 CAD

Vendu en lots de : 1

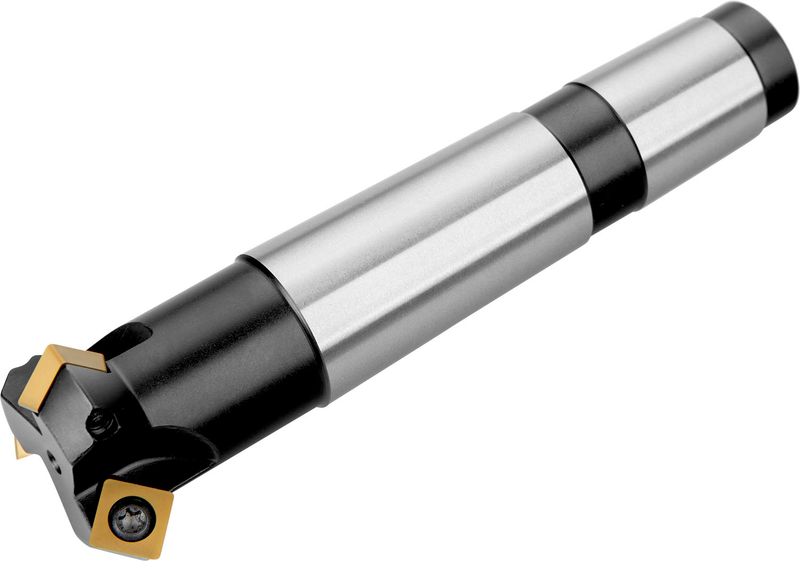

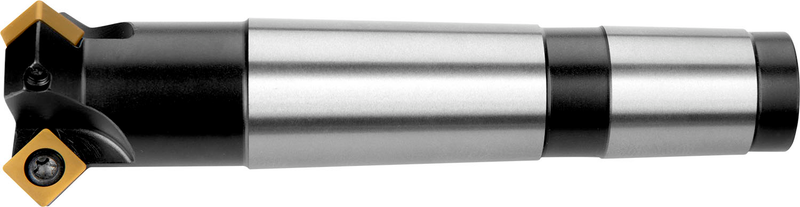

Fraise grande avance avec géométrie positive/négative utilisant 3 plaquettes simple face ZDCW 0703..., diamètre de coupe 20mm avec queue cylindrique 20,0mm selon DIN 1835A, longueur totale 165mm, arrosage central pour surfaçage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20E3R080A20-SZD07
Product Number6760250
Product FamilySZD07
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

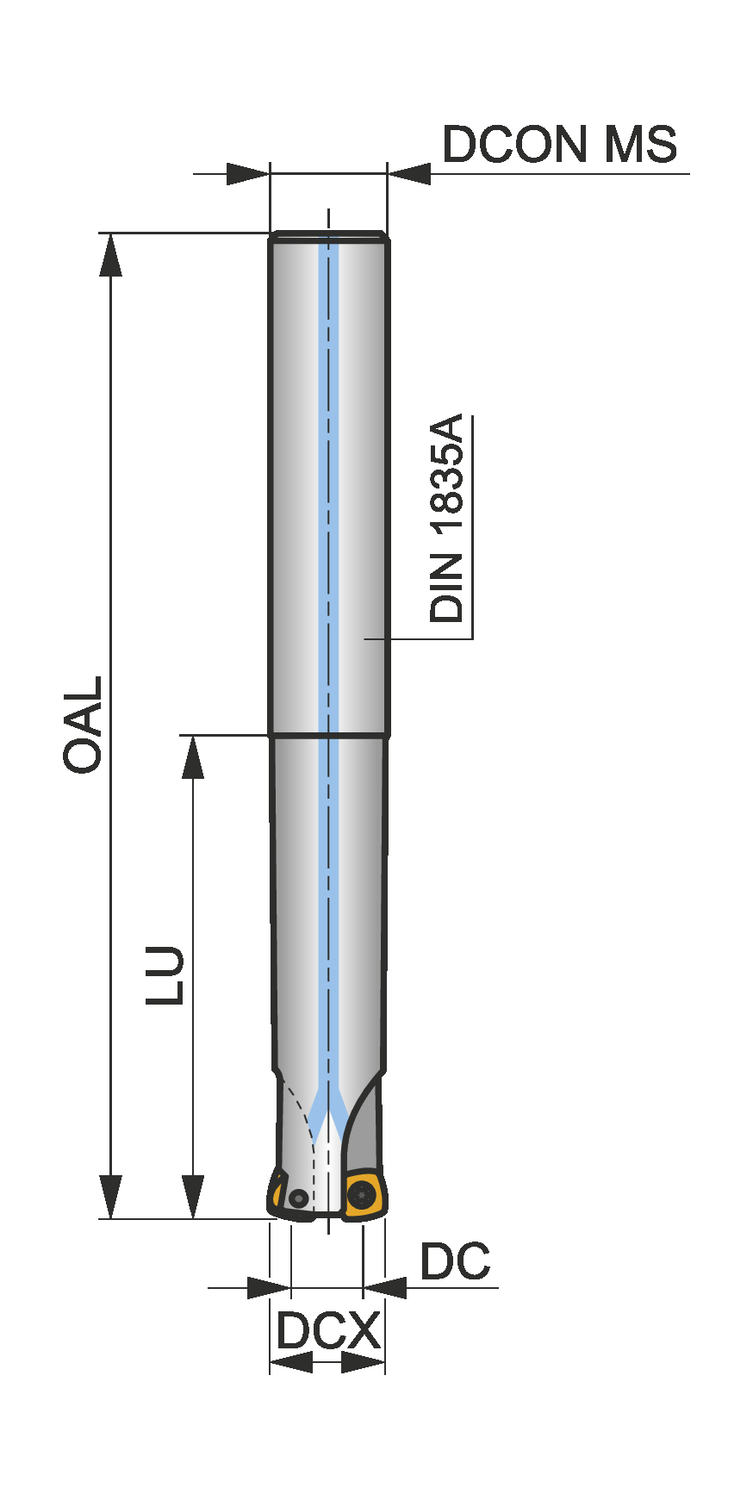

Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)6.496"
Overall Length — mm (OAL)165.0 mm
Usable Length — mm (LU)80.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSZD07
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760250
EAN3603602955968
File Type Download
20E3R080A20-SZD07 — 3D Model STP Download
20E3R080A20-SZD07 — 2D Model DXF Download
20E3R080A20-SZD07 — Line Drawing PDF Download
