50A06R-S45HN06C-C
50A06R-S45HN06C-C
50A06R-S45HN06C-C

50A06R-S45HN06C-C

UGC DOR6760269
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$796.00 CAD - $796.00 CAD
$796.00 CAD
$796.00 CAD - $796.00 CAD
$796.00 CAD

Vendu en lots de : 1

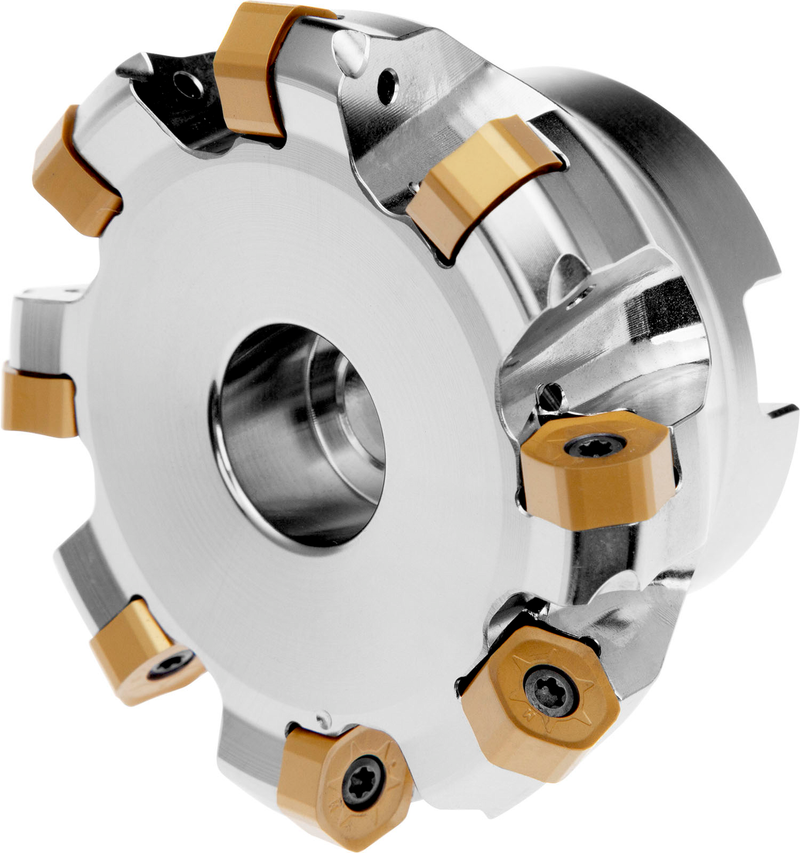

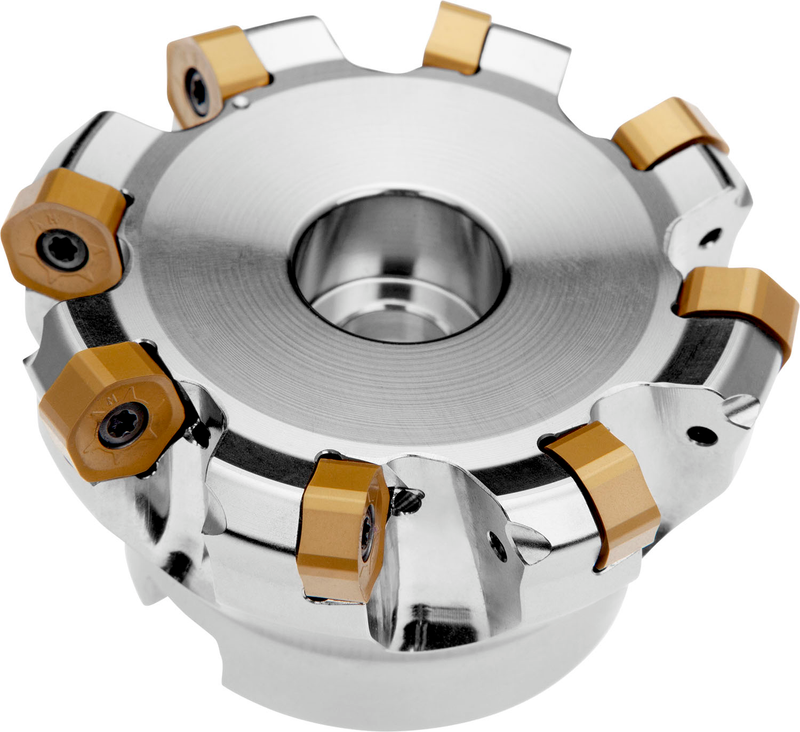

Fraise à surfacer à géométrie double négative qui utilise 6 plaquettes double face HNGX 0604AN... ou XNGX 0604AN..., diamètre de coupe 50 à 57,3 mm maximum avec un angle d'attaque de 45° et un alésage de raccordement de 22 mm selon DIN 8030-A, longueur de dépassement de 40 mm, arrosage central et pas différentiel pour le surfaçage, le rampage, le fraisage par plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A06R-S45HN06C-C
Product Number6760269
Product FamilySHN06C
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

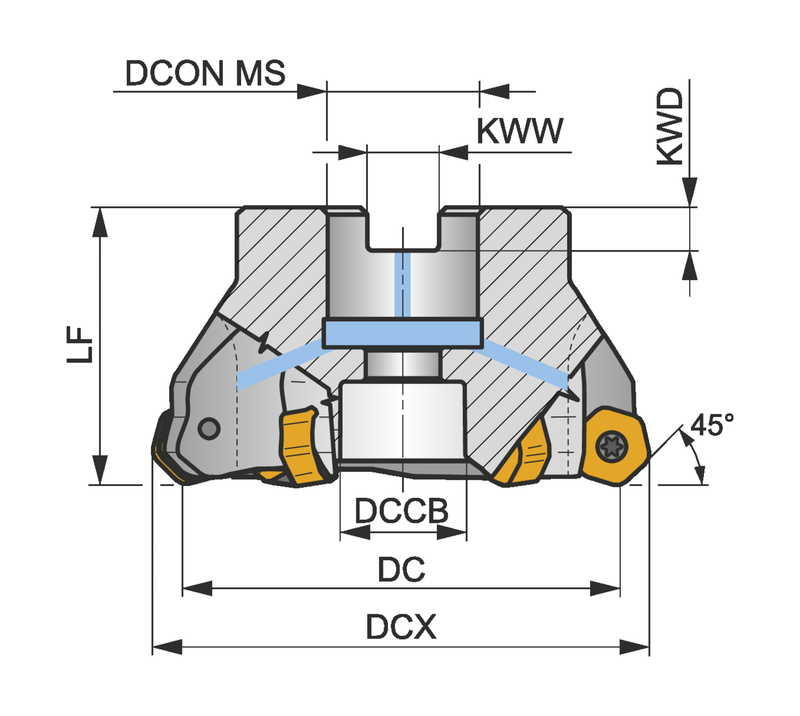

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSHN06C
ShankFraise cloche DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760269
EAN3603602956156
File Type Download
50A06R-S45HN06C-C — 3D Model STP Download
50A06R-S45HN06C-C — 2D Model DXF Download
50A06R-S45HN06C-C — Line Drawing PDF Download
