63A08R-S45HN06C-C
63A08R-S45HN06C-C
63A08R-S45HN06C-C

63A08R-S45HN06C-C

UGC DOR6760270
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$915.00 CAD - $915.00 CAD
$915.00 CAD
$915.00 CAD - $915.00 CAD
$915.00 CAD

Vendu en lots de : 1

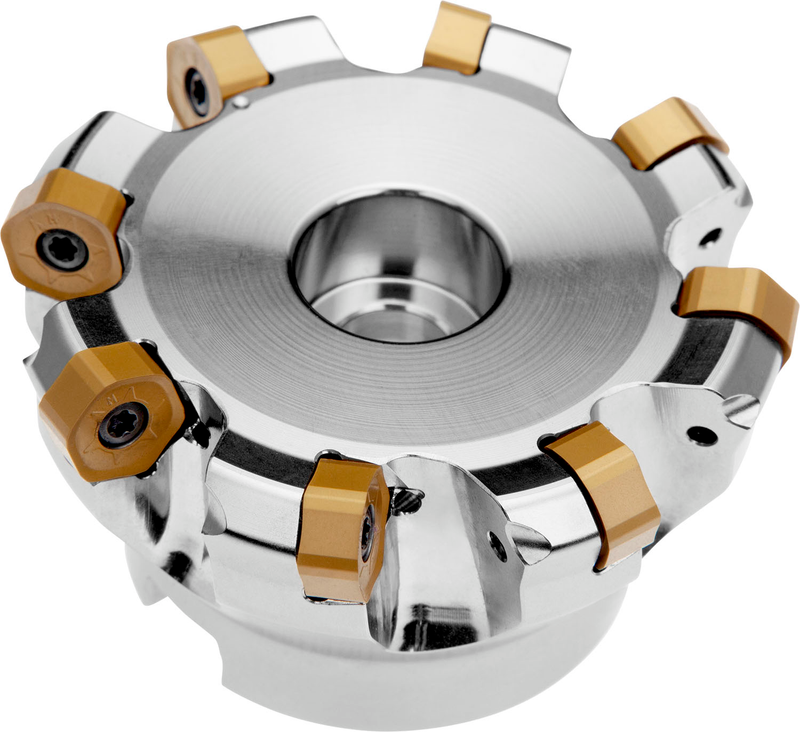

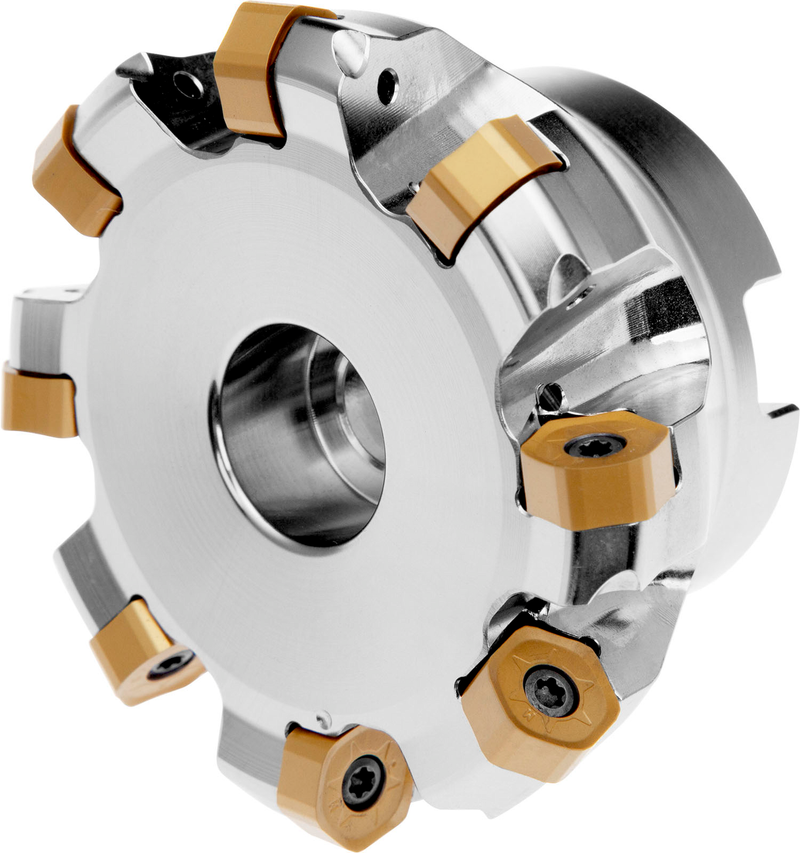

Fraise à surfacer avec géométrie double négative utilisant des plaquettes double face 8 x HNGX 0604AN... ou XNGX 0604AN..., diamètre de coupe 63 à 70,3 mm maximum avec un angle d'approche de 45° et un alésage de connexion de 22 mm selon DIN 8030-A, longueur de dépassement 40 mm, arrosage central et pas différentiel pour le surfaçage, l'usinage en ramping, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A08R-S45HN06C-C
Product Number6760270
Product FamilySHN06C
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

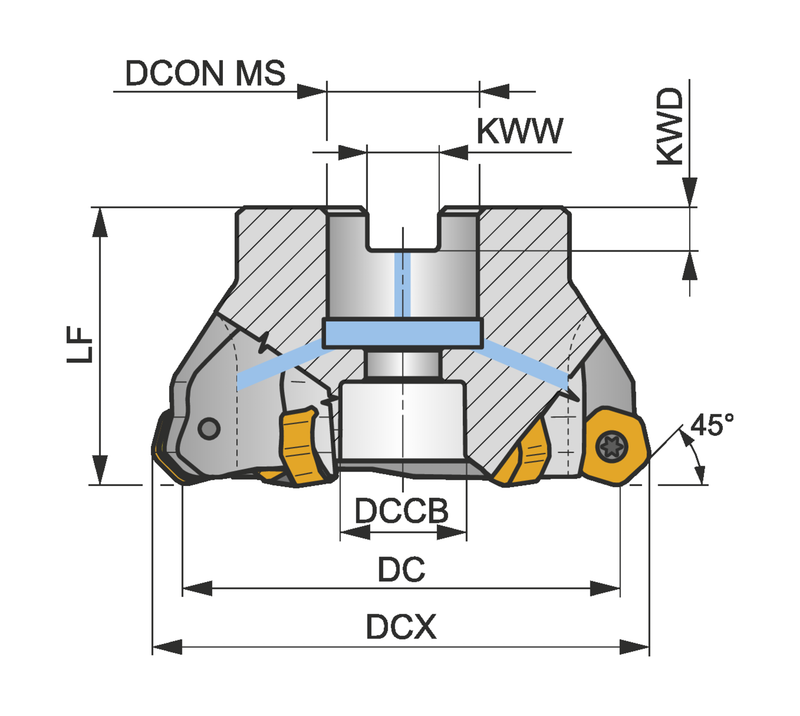

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSHN06C
ShankFraise-scie DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760270
EAN3603602956163
File Type Download
63A08R-S45HN06C-C — 3D Model STP Download
63A08R-S45HN06C-C — 2D Model DXF Download
63A08R-S45HN06C-C — Line Drawing PDF Download
