125A10R-S45HN06C-C
125A10R-S45HN06C-C
125A10R-S45HN06C-C

125A10R-S45HN06C-C

UGC DOR6760275
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,336.00 CAD - $1,336.00 CAD
$1,336.00 CAD
$1,336.00 CAD - $1,336.00 CAD
$1,336.00 CAD

Vendu en lots de : 1

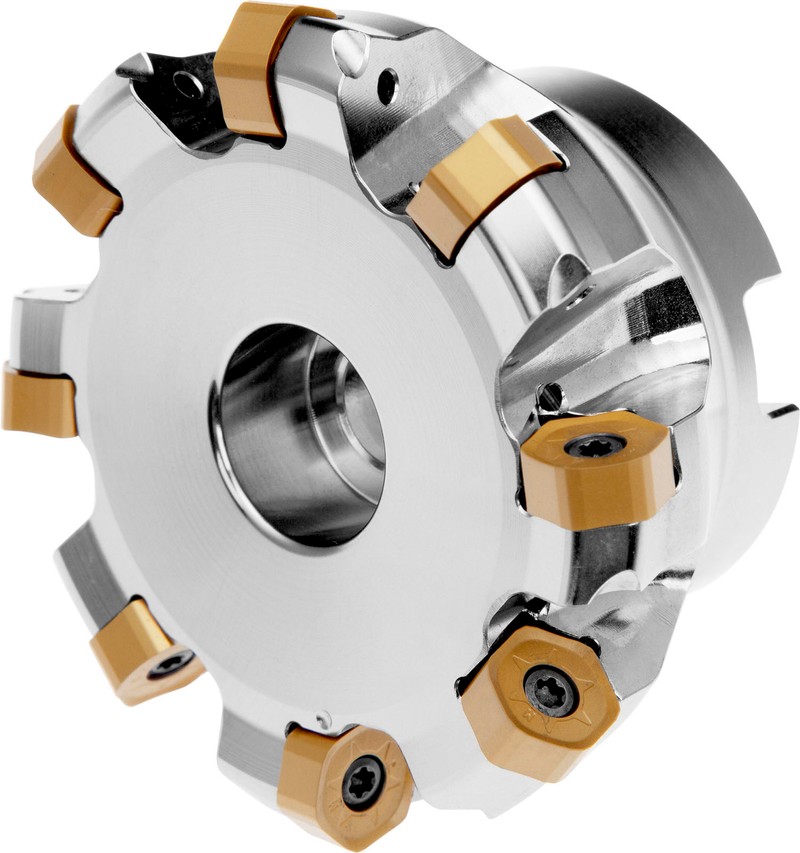

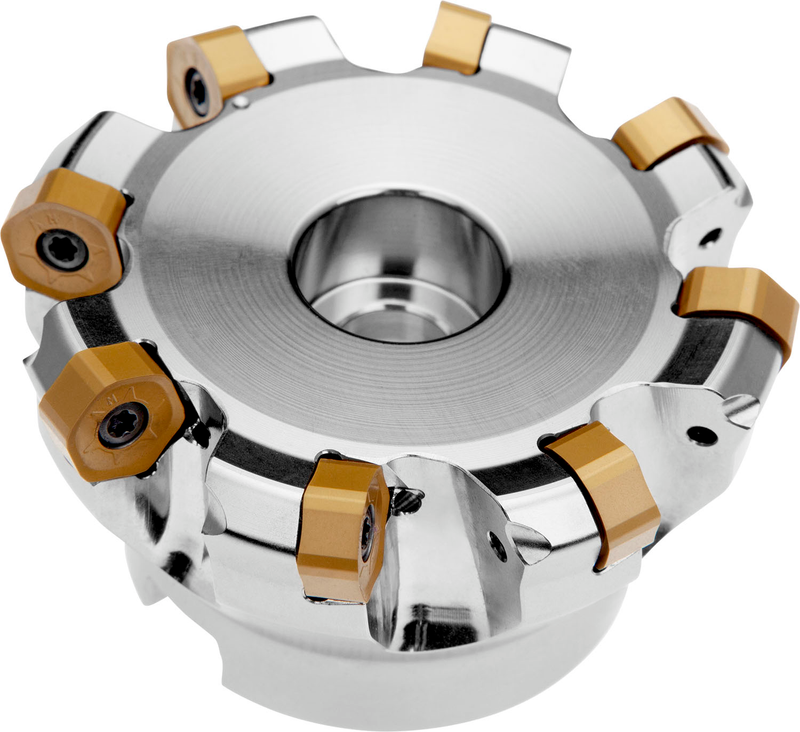

Fraise à surfacer avec géométrie double négative utilisant 10 plaquettes double face HNGX 0604AN.. ou XNGX 0604AN.., diamètre de coupe de 125 à 132,2 mm maximum avec un angle d'approche de 45° et un alésage de raccordement de 40 mm selon DIN 8030-A, longueur de dépassement de 63 mm, arrosage centralisé et pas différentiel pour le surfaçage, l'usinage en rampe, le fraisage progressif en plongée et le chanfreinage avec une profondeur de coupe maximale de 3,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A10R-S45HN06C-C
Product Number6760275
Product FamilySHN06C
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

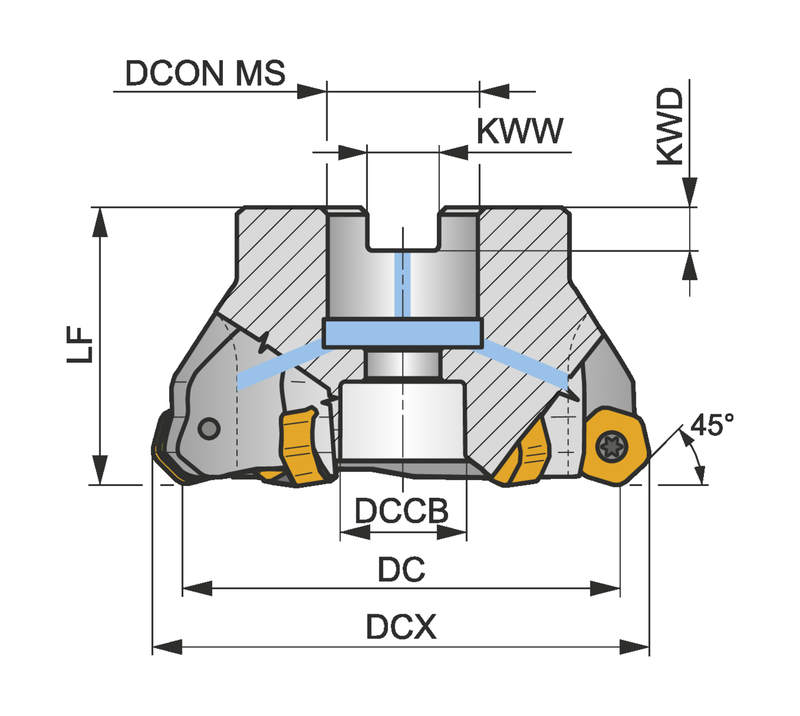

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignSHN06C
ShankFraise coquille DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760275
EAN3603602956217
File Type Download
125A10R-S45HN06C-C — 3D Model STP Download
125A10R-S45HN06C-C — 2D Model DXF Download
125A10R-S45HN06C-C — Line Drawing PDF Download
