80A07R-S45HN06C-C
80A07R-S45HN06C-C
80A07R-S45HN06C-C

80A07R-S45HN06C-C

UGC DOR6760278
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$973.00 CAD - $973.00 CAD
$973.00 CAD
$973.00 CAD - $973.00 CAD
$973.00 CAD

Vendu en lots de : 1

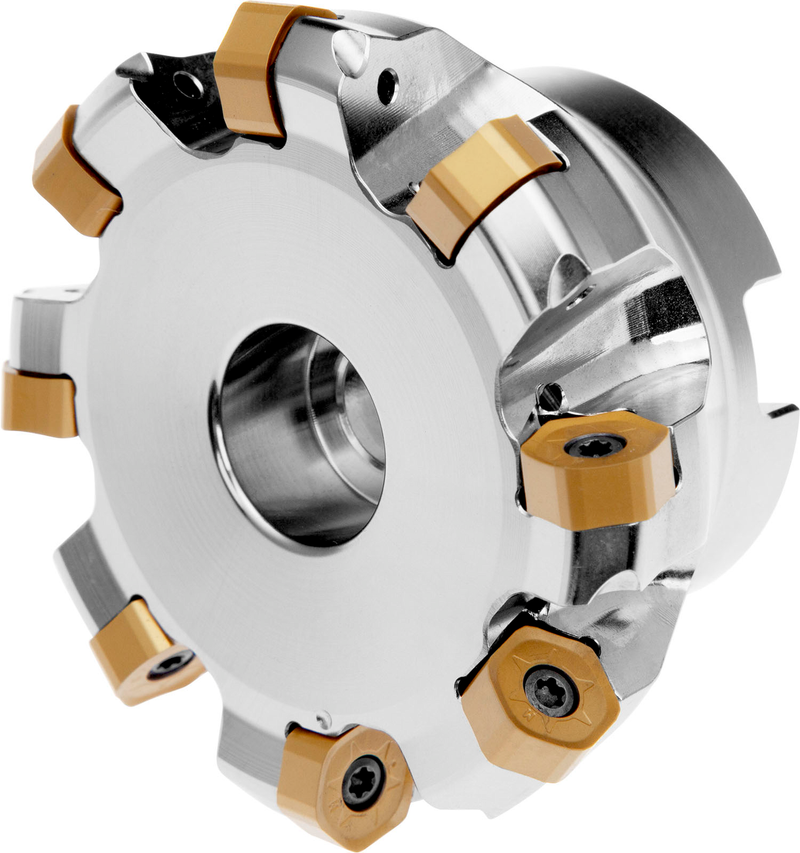

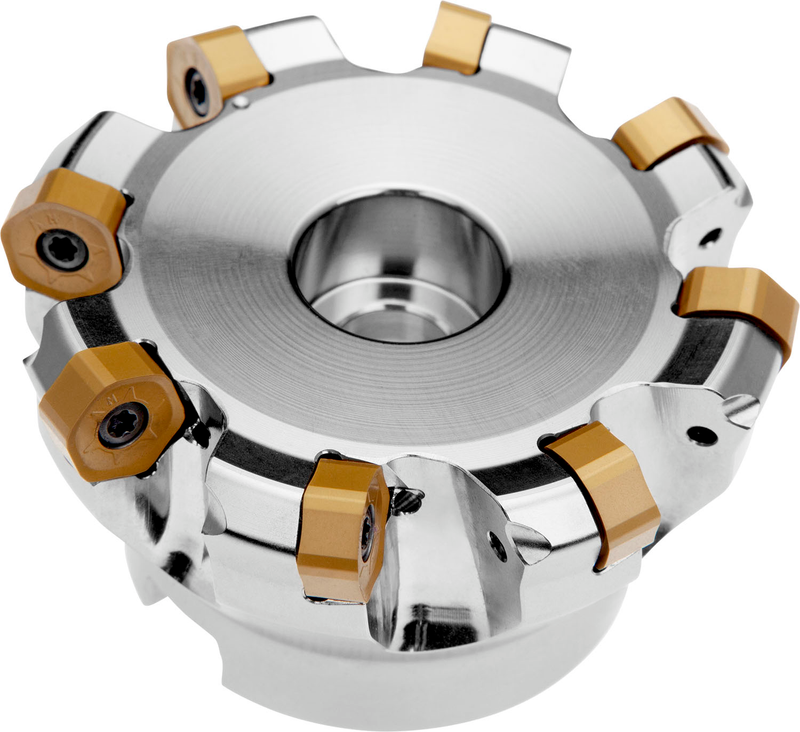

Fraise à surfacer avec géométrie double négative qui utilise 7 plaquettes double face HNGX 0604AN... ou XNGX 0604AN..., diamètre de coupe 80 à maximum 86,8 mm avec un angle d'attaque de 45° et un alésage de raccordement de 27 mm selon DIN 8030-A, longueur en porte-à-faux de 50 mm, arrosage centralisé et pas différentiel pour le surfaçage, le ramping, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A07R-S45HN06C-C
Product Number6760278
Product FamilySHN06C
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

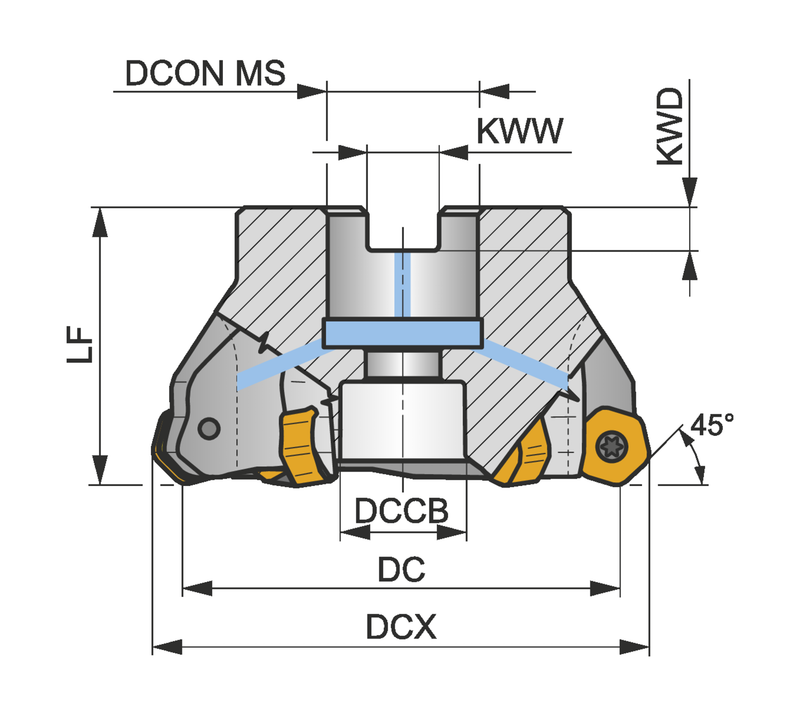

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSHN06C
ShankFraise-cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760278
EAN3603602956248
File Type Download
80A07R-S45HN06C-C — 3D Model STP Download
80A07R-S45HN06C-C — 2D Model DXF Download
80A07R-S45HN06C-C — Line Drawing PDF Download
