80A10R-S45HN06C-C
80A10R-S45HN06C-C
80A10R-S45HN06C-C

80A10R-S45HN06C-C

UGC DOR6760279
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,087.00 CAD - $1,087.00 CAD
$1,087.00 CAD
$1,087.00 CAD - $1,087.00 CAD
$1,087.00 CAD

Vendu en lots de : 1

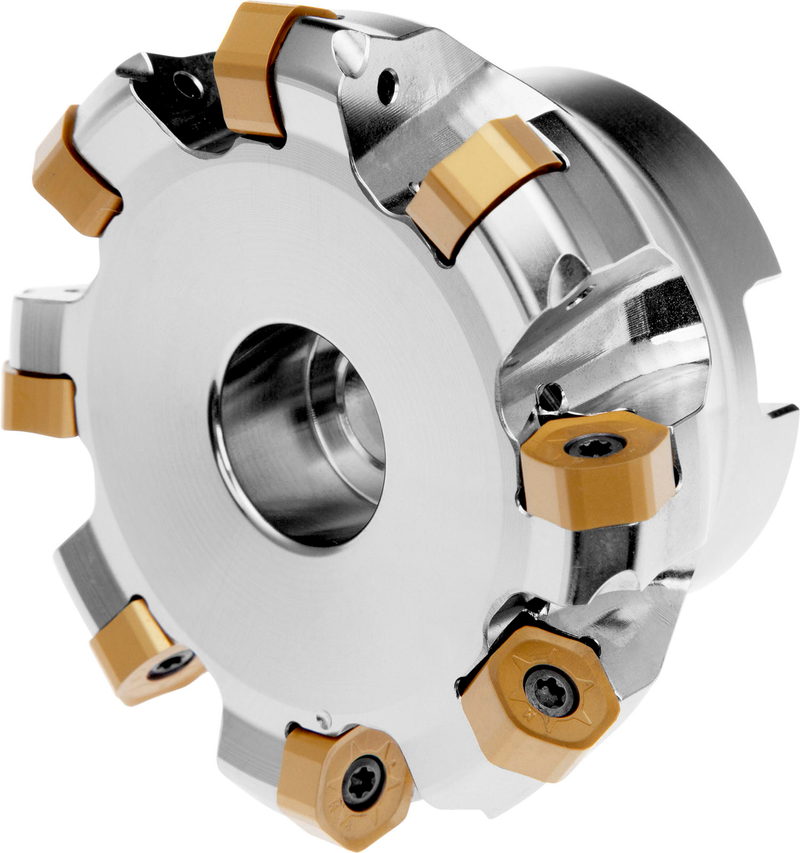

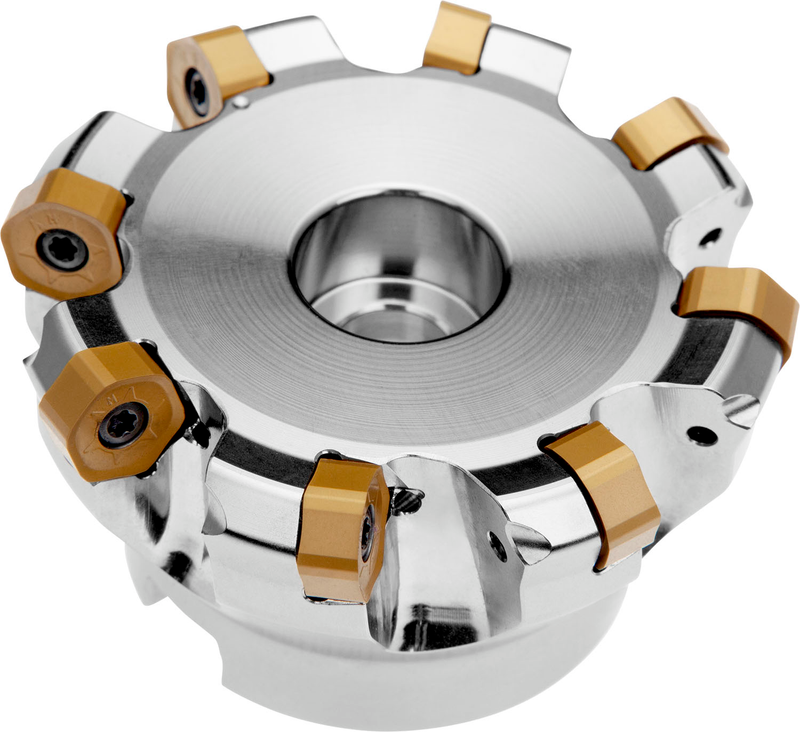

Fraise à surfacer avec géométrie double négative qui utilise 10 plaquettes double face HNGX 0604AN... ou XNGX 0604AN..., diamètre de coupe 80 à 86,8mm maximum avec un angle d'attaque de 45° et un alésage de raccordement de 27mm selon DIN 8030-A, longueur de dépassement de 50mm, arrosage central et pas différentiel pour le surfaçage, le ramping, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A10R-S45HN06C-C
Product Number6760279
Product FamilySHN06C
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

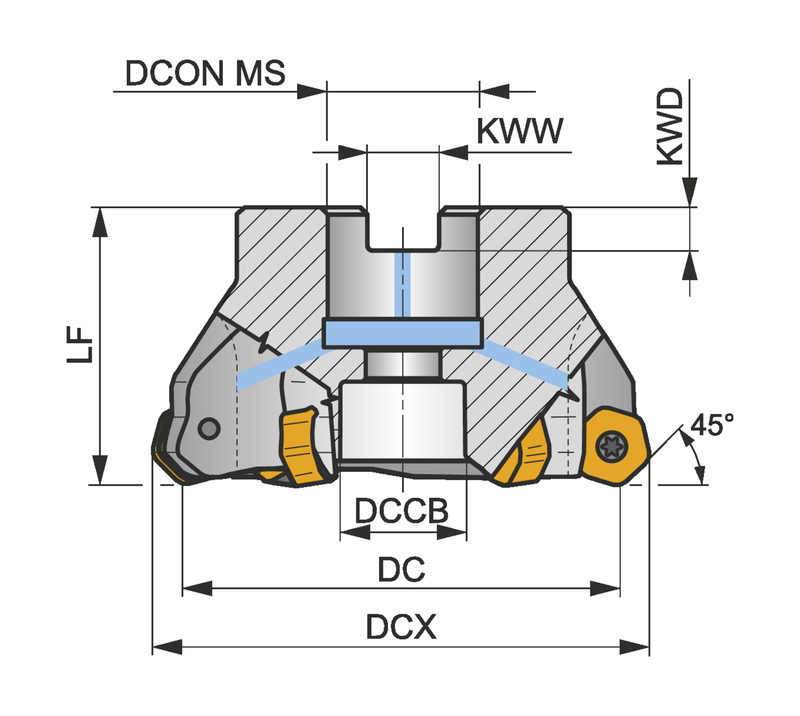

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignSHN06C
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760279
EAN3603602956255
File Type Download
80A10R-S45HN06C-C — 3D Model STP Download
80A10R-S45HN06C-C — 2D Model DXF Download
80A10R-S45HN06C-C — Line Drawing PDF Download
