25N2R042B25-SHN06C-C
25N2R042B25-SHN06C-C
25N2R042B25-SHN06C-C

25N2R042B25-SHN06C-C

UGC DOR6760283
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$597.00 CAD - $597.00 CAD
$597.00 CAD
$597.00 CAD - $597.00 CAD
$597.00 CAD

Vendu en lots de : 1

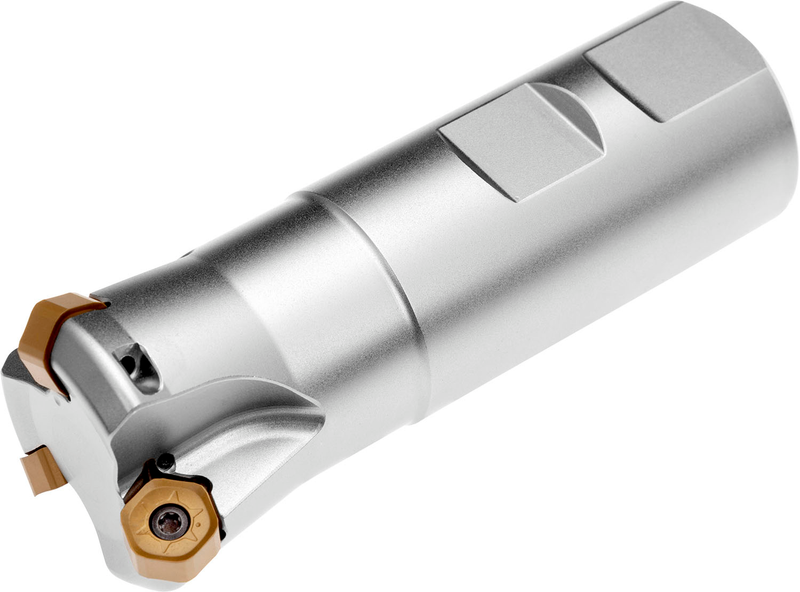

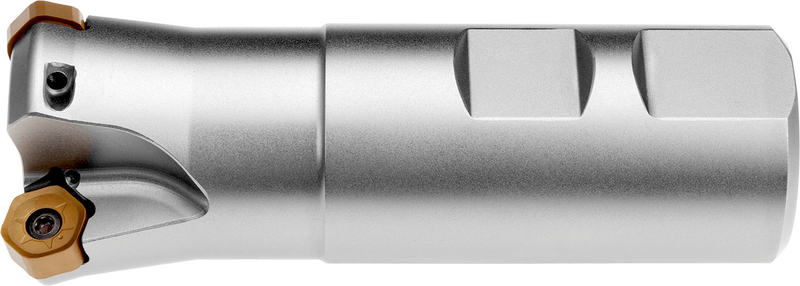

Fraise à surfacer à géométrie double négative utilisant 2 plaquettes double face HNGX 0604AN... ou XNGX 0604AN..., diamètre de coupe 25 à 32,2 mm maximum avec angle d'attaque de 45° et queue Weldon de 25 mm selon DIN 1835B, longueur utile de 42 mm et longueur totale de 99 mm, arrosage interne pour le surfaçage, l'usinage en ramping, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25N2R042B25-SHN06C-C
Product Number6760283
Product FamilySHN06C
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

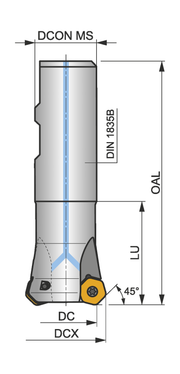

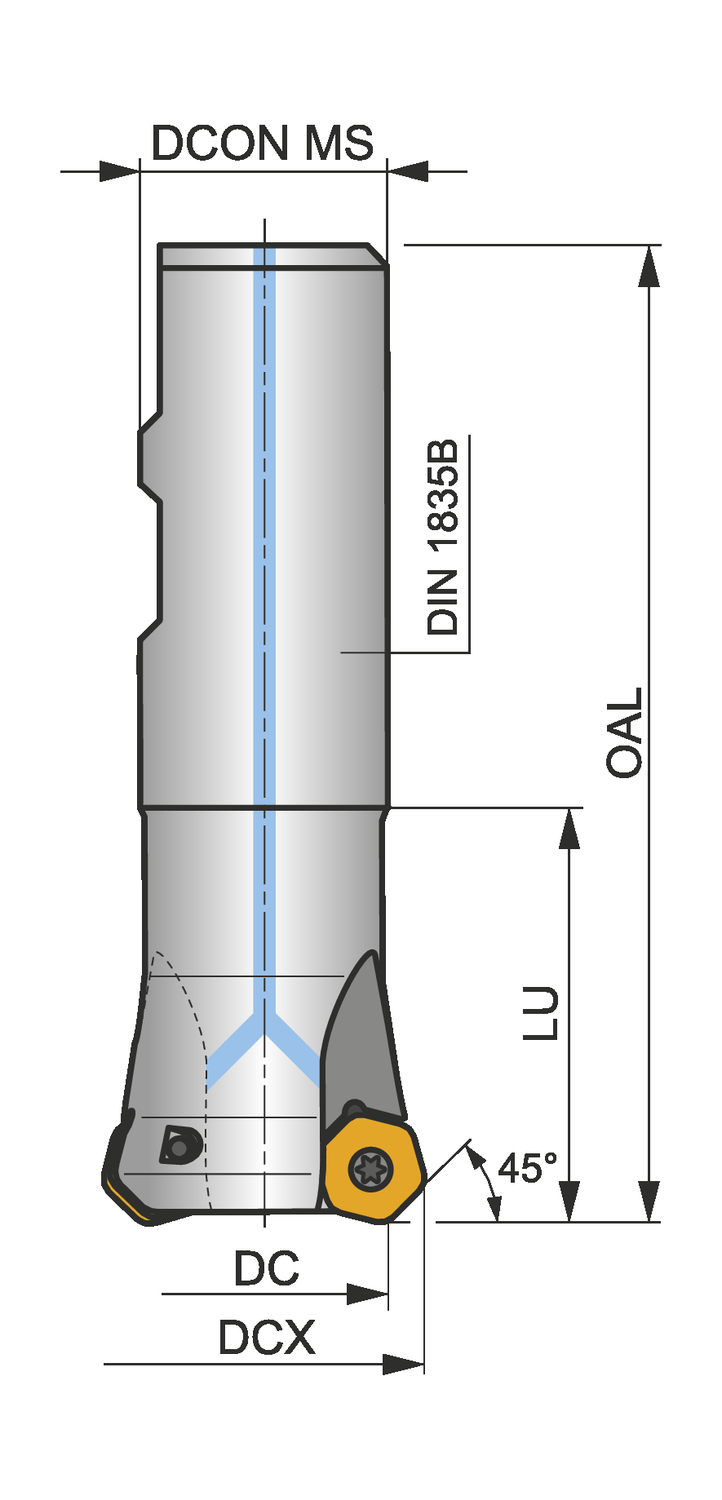

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)3.898"
Overall Length — mm (OAL)99.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSHN06C
ShankQueue de Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760283
EAN3603602956293
File Type Download
25N2R042B25-SHN06C-C — 3D Model STP Download
25N2R042B25-SHN06C-C — 2D Model DXF Download
25N2R042B25-SHN06C-C — Line Drawing PDF Download
