32N3R042B32-SHN06C-C
32N3R042B32-SHN06C-C
32N3R042B32-SHN06C-C

32N3R042B32-SHN06C-C

UGC DOR6760284
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$634.00 CAD - $634.00 CAD
$634.00 CAD
$634.00 CAD - $634.00 CAD
$634.00 CAD

Vendu en lots de : 1

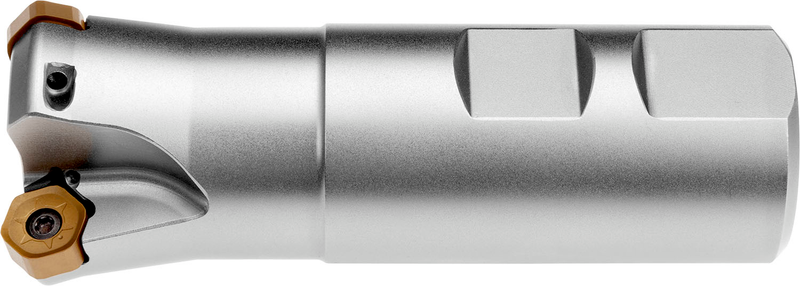

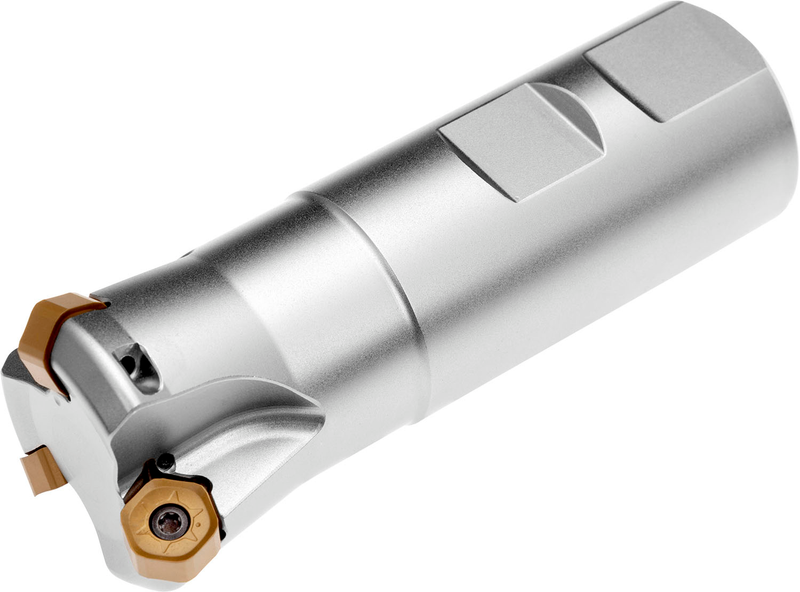

Fraise à surfacer à géométrie double négative utilisant 3 plaquettes double face HNGX 0604AN... ou XNGX 0604AN..., diamètre de coupe de 32 à 39,3 mm maximum avec un angle d'attaque de 45° et un queue Weldon de 32 mm selon DIN 1835B, longueur fonctionnelle de 42 mm et longueur totale de 103 mm, arrosage central pour le surfaçage, l'interpolation hélicoïdale, le plongement progressif et le chanfreinage avec une profondeur de coupe maximale de 3,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32N3R042B32-SHN06C-C
Product Number6760284
Product FamilySHN06C
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

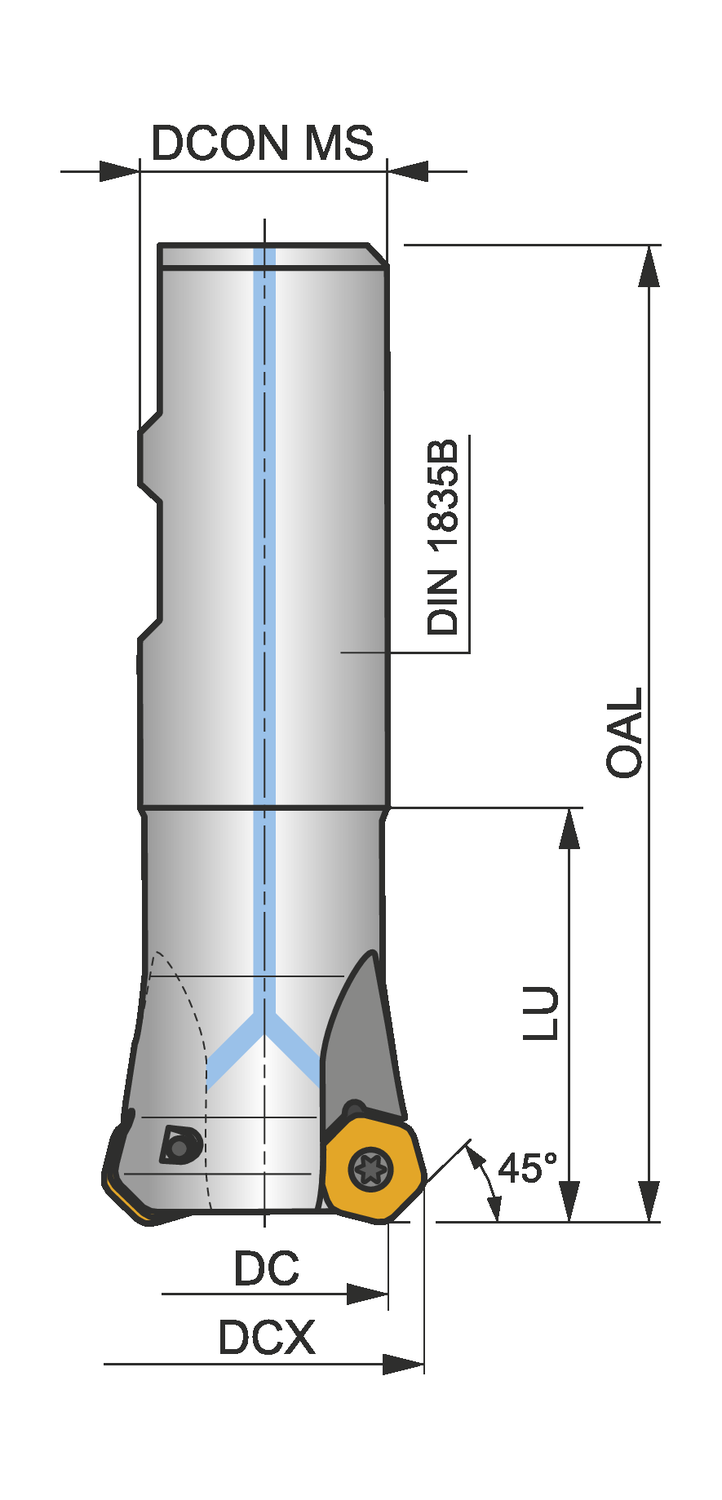

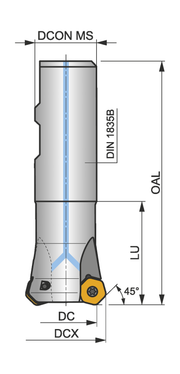

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)4.055"
Overall Length — mm (OAL)103.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSHN06C
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760284
EAN3603602956309
File Type Download
32N3R042B32-SHN06C-C — 3D Model STP Download
32N3R042B32-SHN06C-C — 2D Model DXF Download
32N3R042B32-SHN06C-C — Line Drawing PDF Download
