50A05R-S90LN12-C
50A05R-S90LN12-C
50A05R-S90LN12-C

50A05R-S90LN12-C

UGC DOR6760290
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$772.00 CAD - $772.00 CAD
$772.00 CAD
$772.00 CAD - $772.00 CAD
$772.00 CAD

Vendu en lots de : 1

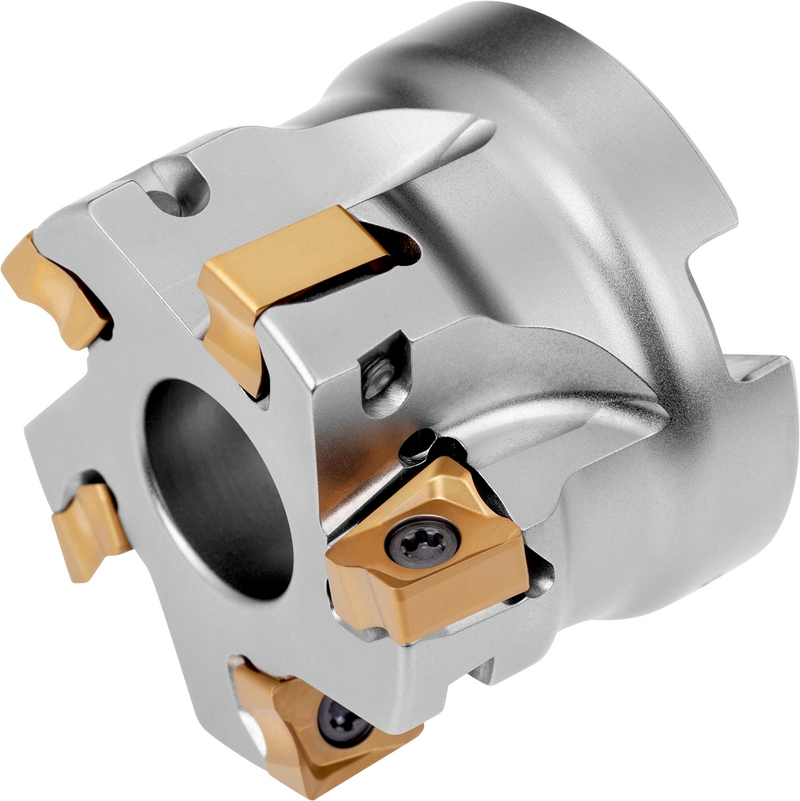

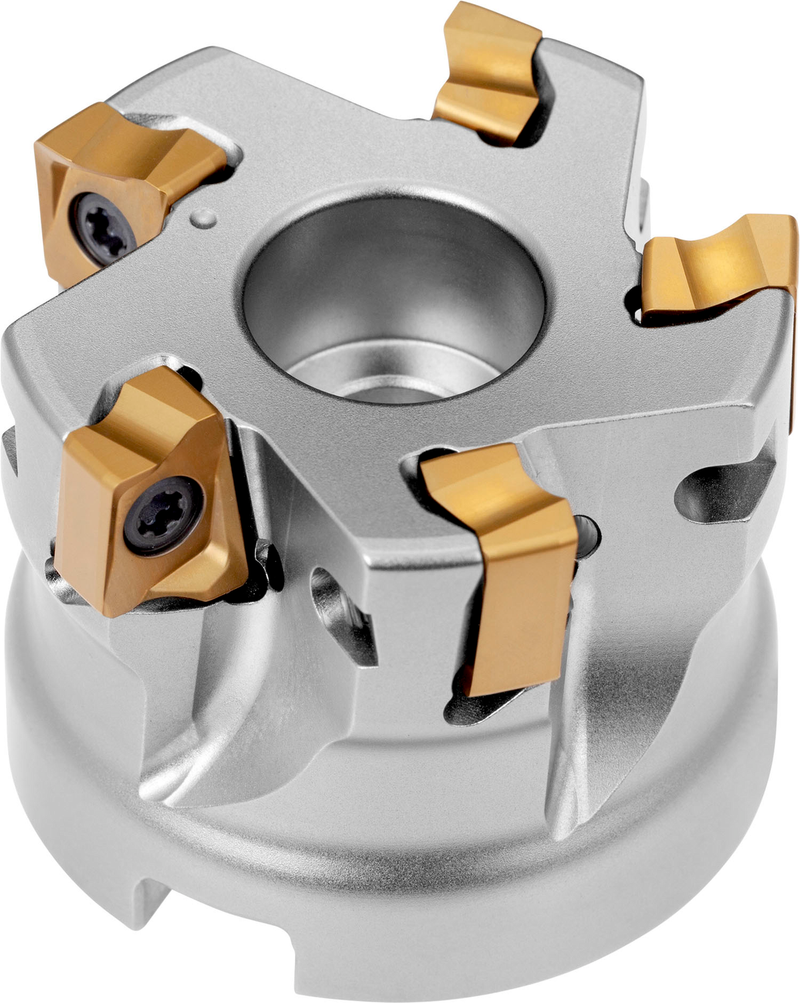

Fraise à épaulement à géométrie double négative qui utilise 5 plaquettes double face LNGX 1205.. ou LNGU 1205.., diamètre de coupe 50 mm avec un angle d'attaque de 90° et un alésage de connexion de 22 mm selon DIN 8030-A, longueur en porte-à-faux de 40 mm, arrosage central et pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de fentes peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A05R-S90LN12-C
Product Number6760290
Product FamilySLN12
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

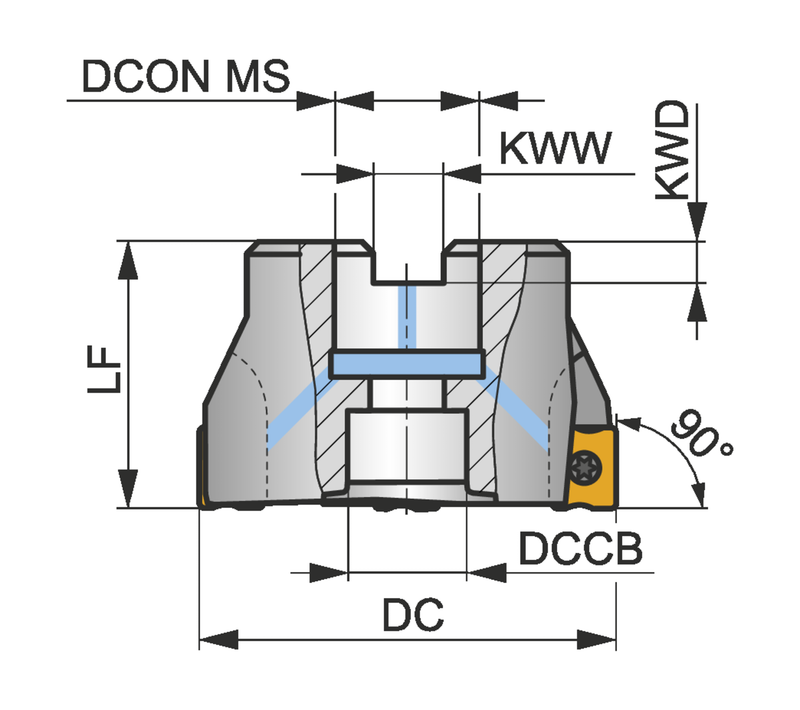

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSLN12
ShankFraise à surfacer-dressser DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760290
EAN3603602956361
File Type Download
50A05R-S90LN12-C — 3D Model STP Download
50A05R-S90LN12-C — 2D Model DXF Download
50A05R-S90LN12-C — Line Drawing PDF Download
