63A04R-S90LN12-C
63A04R-S90LN12-C
63A04R-S90LN12-C

63A04R-S90LN12-C

UGC DOR6760304
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$848.00 CAD - $848.00 CAD
$848.00 CAD
$848.00 CAD - $848.00 CAD
$848.00 CAD

Vendu en lots de : 1

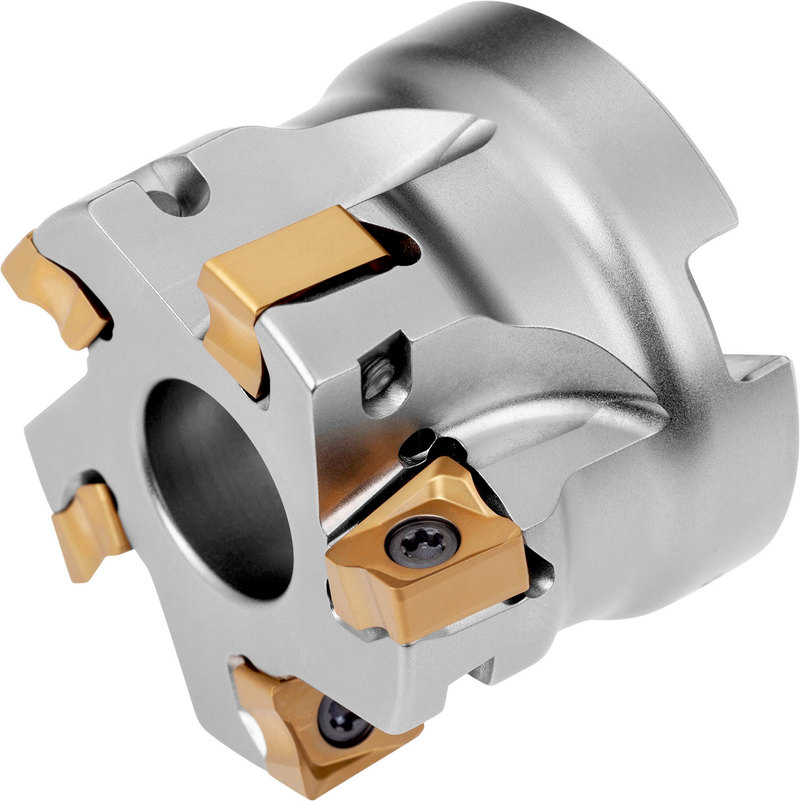

Fraise à épaulement à géométrie double négative qui utilise 4 plaquettes double face LNGX 1205.. ou LNGU 1205.., diamètre de coupe 63mm avec angle d'attaque de 90° et alésage de raccordement de 22mm selon DIN 8030-A, longueur de dépassement de 40mm, arrosage central et pas différentiel pour fraisage d'épaulement peu profond, fraisage de rainure peu profonde et fraisage en plongée avec une profondeur de coupe maximale de 9.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A04R-S90LN12-C
Product Number6760304
Product FamilySLN12
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

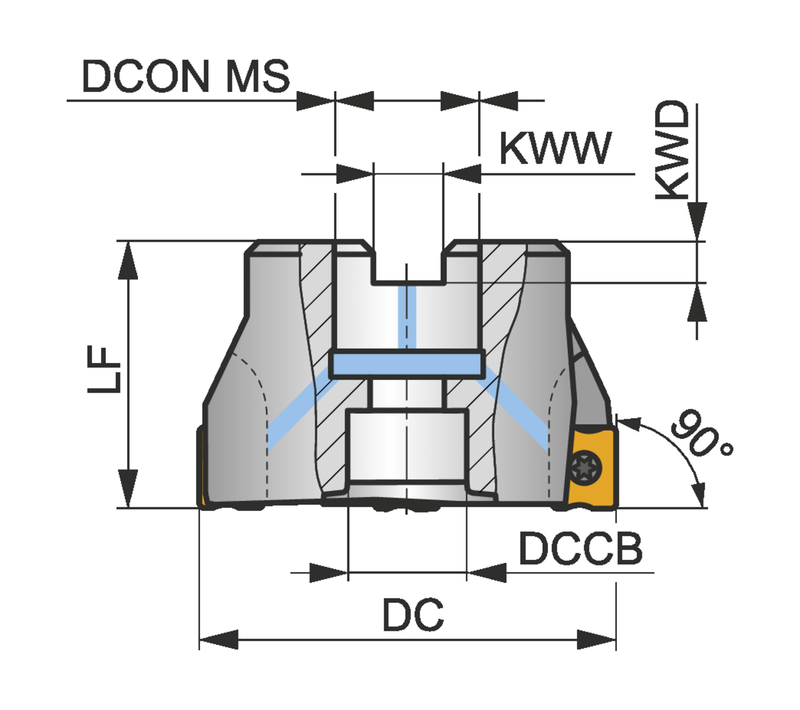

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSLN12
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760304
EAN3603602956507
File Type Download
63A04R-S90LN12-C — 3D Model STP Download
63A04R-S90LN12-C — 2D Model DXF Download
63A04R-S90LN12-C — Line Drawing PDF Download
