80A06R-S90LN16-C
80A06R-S90LN16-C
80A06R-S90LN16-C

80A06R-S90LN16-C

UGC DOR6760311
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,153.00 CAD - $1,153.00 CAD
$1,153.00 CAD
$1,153.00 CAD - $1,153.00 CAD
$1,153.00 CAD

Vendu en lots de : 1

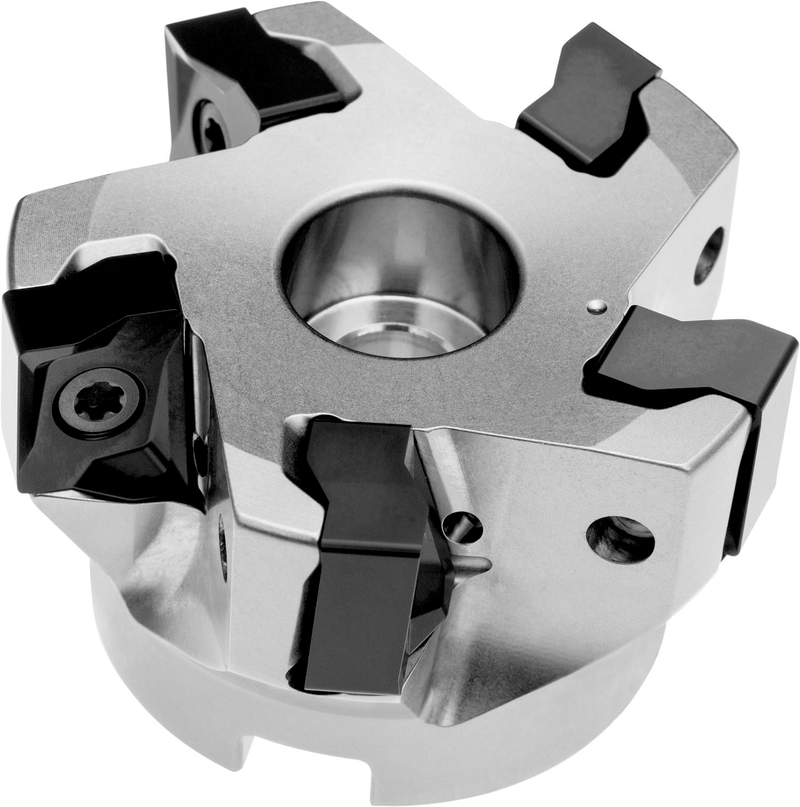

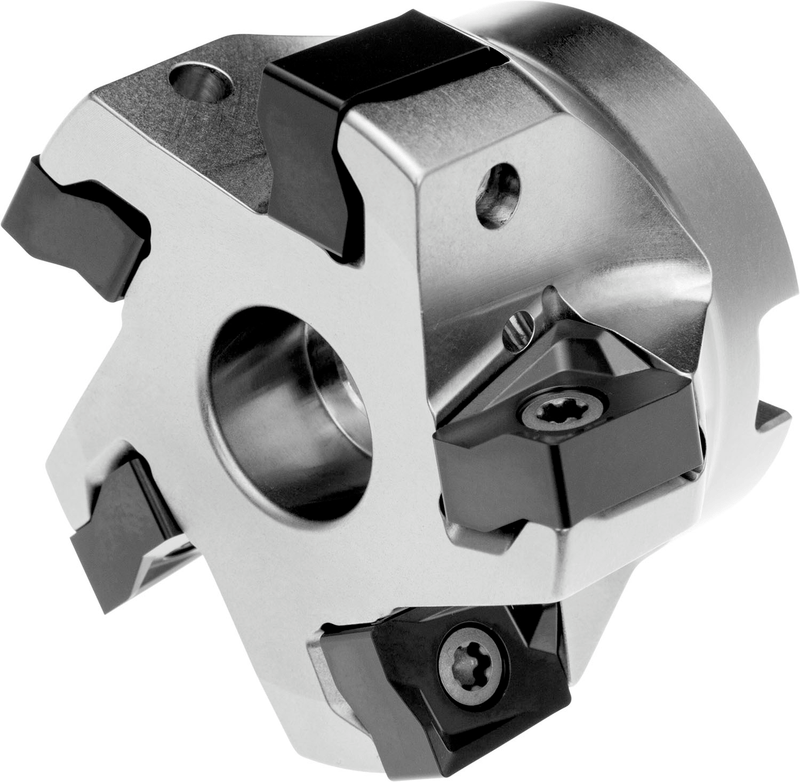

Fraise à épaule avec géométrie double négative utilisant 6 plaquettes double face LNMU 1607.. ou LNGU 1607.., diamètre de coupe 80mm avec angle d'approche de 90° et alésage de connexion de 27mm selon DIN 8030-A, longueur de dépassement 50mm, arrosage central et pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de fentes peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 13.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A06R-S90LN16-C
Product Number6760311
Product FamilySLN16
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

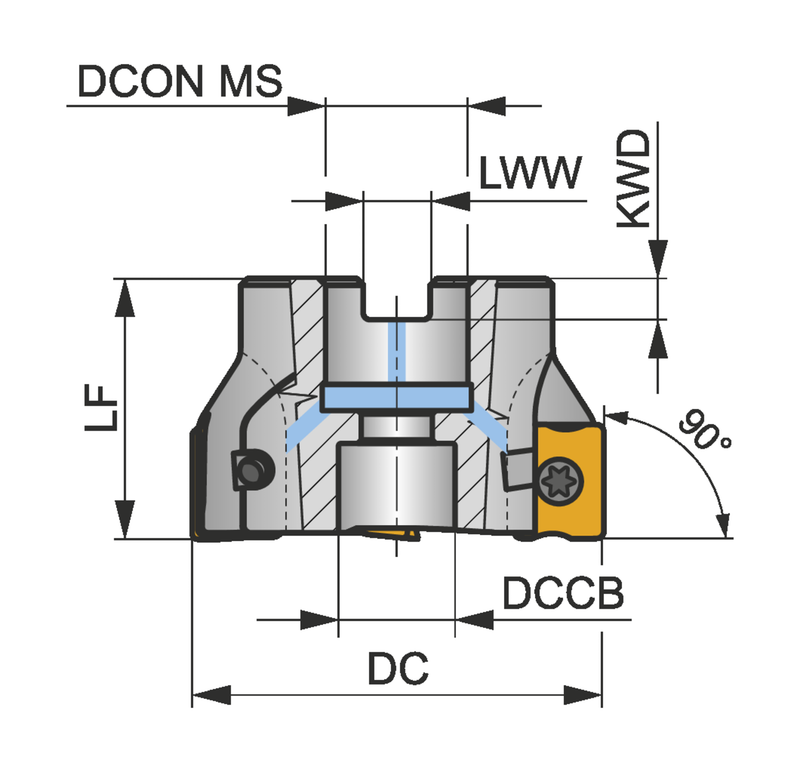

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSLN16
ShankFraise cloche DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760311
EAN3603602956576
File Type Download
80A06R-S90LN16-C — 3D Model STP Download
80A06R-S90LN16-C — 2D Model DXF Download
80A06R-S90LN16-C — Line Drawing PDF Download
