125A08R-S90LN16-C
125A08R-S90LN16-C
125A08R-S90LN16-C

125A08R-S90LN16-C

UGC DOR6760315
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,512.00 CAD - $1,512.00 CAD
$1,512.00 CAD
$1,512.00 CAD - $1,512.00 CAD
$1,512.00 CAD

Vendu en lots de : 1

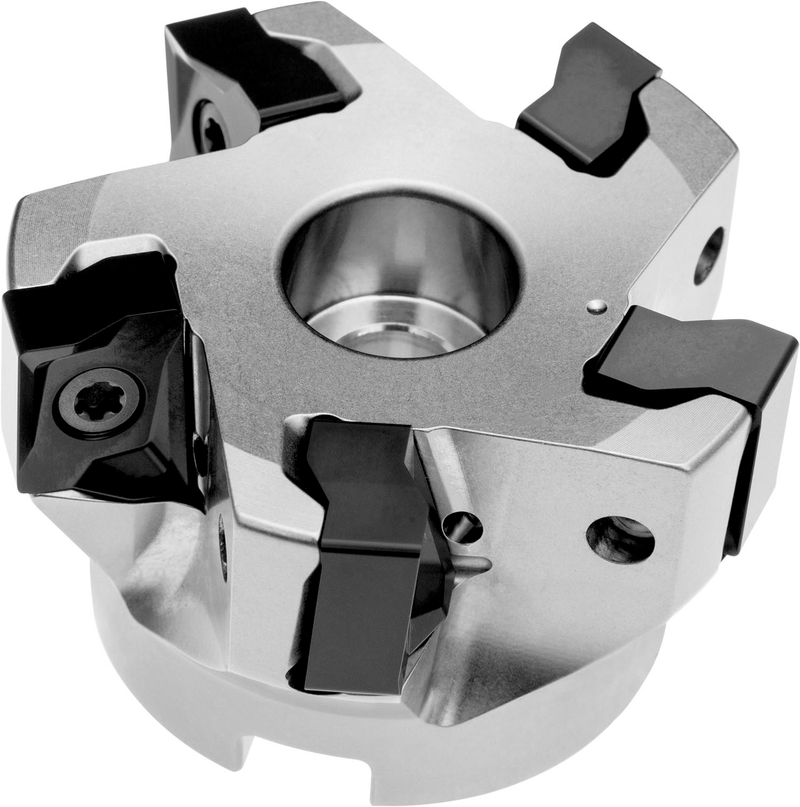

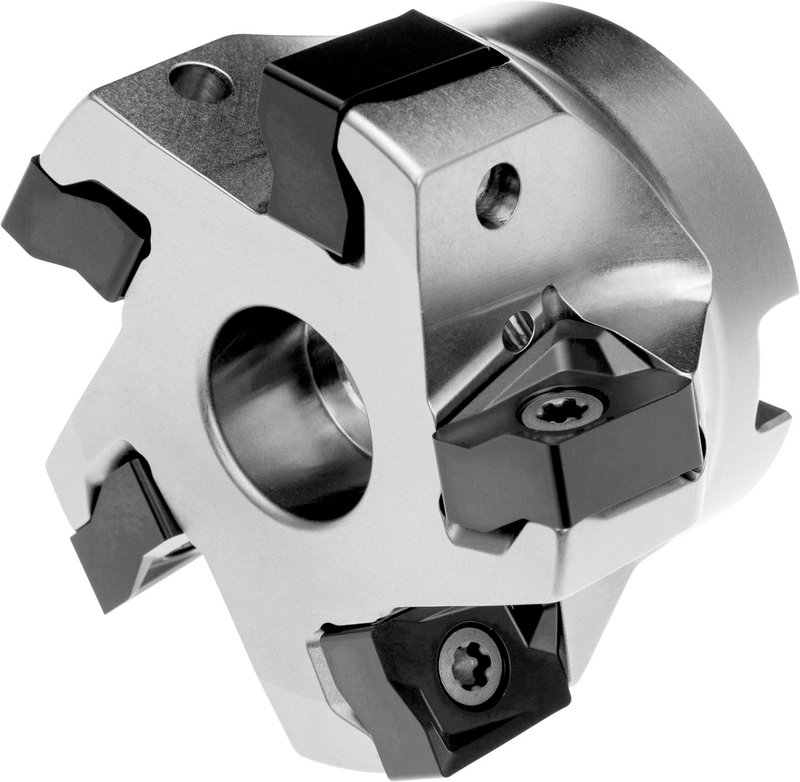

Fraise à épaulement à géométrie double négative qui utilise 8 plaquettes double face LNMU 1607.. ou LNGU 1607.., diamètre de coupe 125mm avec un angle d'attaque de 90° et un alésage de raccordement de 40mm selon DIN 8030-A, longueur de dépassement de 63mm, arrosage central et pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 13.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A08R-S90LN16-C
Product Number6760315
Product FamilySLN16
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

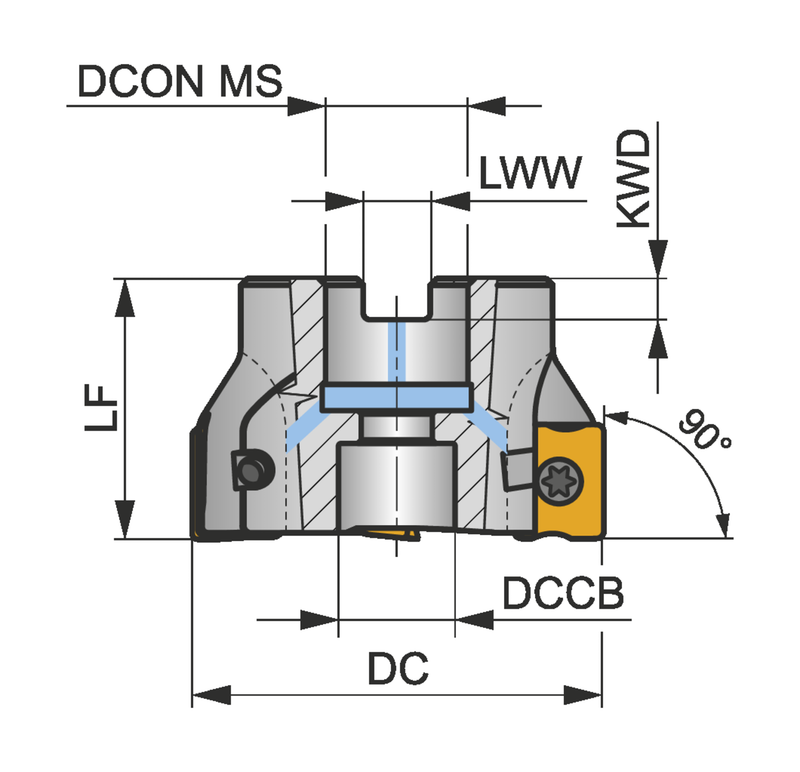

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSLN16
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760315
EAN3603602956613
File Type Download
125A08R-S90LN16-C — 3D Model STP Download
125A08R-S90LN16-C — 2D Model DXF Download
125A08R-S90LN16-C — Line Drawing PDF Download
