A20S-SVQBL 11

A20S-SVQBL 11

UGC DOR6760321
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.00 CAD - $259.00 CAD
$259.00 CAD
$259.00 CAD - $259.00 CAD
$259.00 CAD

Vendu en lots de : 1

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde à 35° avec un cercle inscrit de 6,35mm, 3,18mm d'épaisseur (désignation ISO VB.. 1103.. ), 107°30' coupe à gauche avec queue déportée, en acier avec trou de lubrification, 20mm de diamètre x 250mm de long pour alésage de reproduction unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20S-SVQBL 11
Product Number6760321
Product FamilySVQB(C)(RL) INT

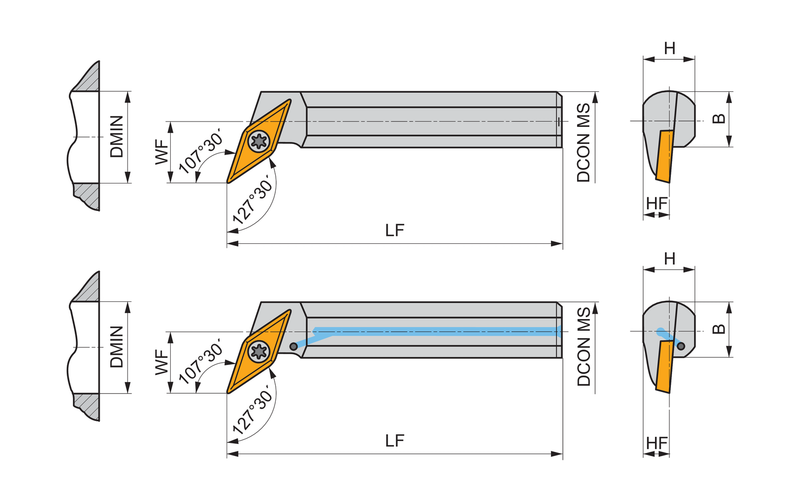

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760321
EAN3603602956675
File Type Download
A20S-SVQBL 11 — 3D Model STP Download
A20S-SVQBL 11 — Line Drawing PDF Download
