A16R-SVUBL 11
A16R-SVUBL 11
A16R-SVUBL 11

A16R-SVUBL 11

UGC DOR6760323
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$205.00 CAD - $205.00 CAD
$205.00 CAD
$205.00 CAD - $205.00 CAD
$205.00 CAD

Vendu en lots de : 1

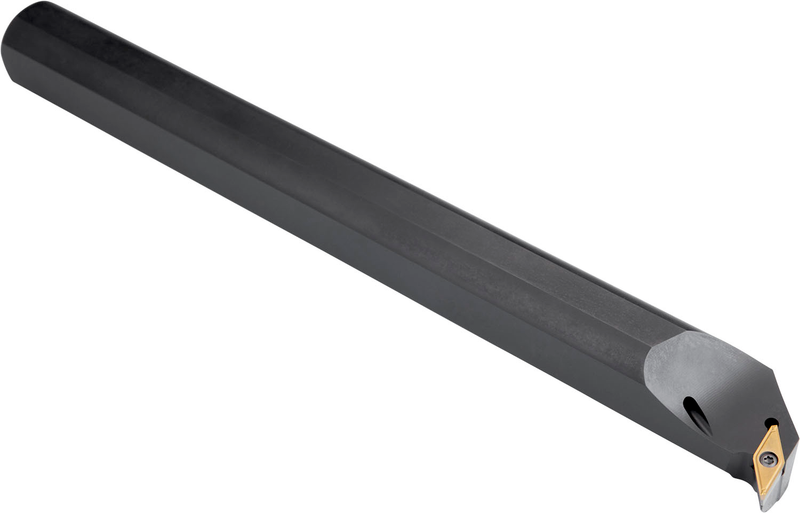

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 6,35 mm, épaisseur de 3,18 mm (désignation ISO VB.. 1103..), coupe à gauche à 93° avec queue déportée, acier avec trou d'arrosage, diamètre 16 mm x longueur 200 mm pour alésage de copiage unidirectionnel et multidirectionnel et chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16R-SVUBL 11
Product Number6760323
Product FamilySVUB(C)(RL) INT

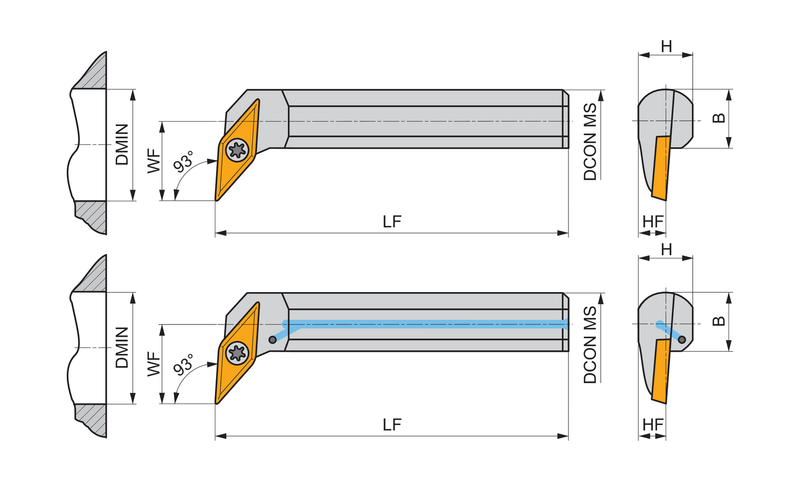

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.571 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760323
EAN3603602956699
File Type Download
A16R-SVUBL 11 — 3D Model STP Download
A16R-SVUBL 11 — Line Drawing PDF Download
