A16R-SVUBR 11
A16R-SVUBR 11
A16R-SVUBR 11

A16R-SVUBR 11

UGC DOR6760324
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$205.00 CAD - $205.00 CAD
$205.00 CAD
$205.00 CAD - $205.00 CAD
$205.00 CAD

Vendu en lots de : 1

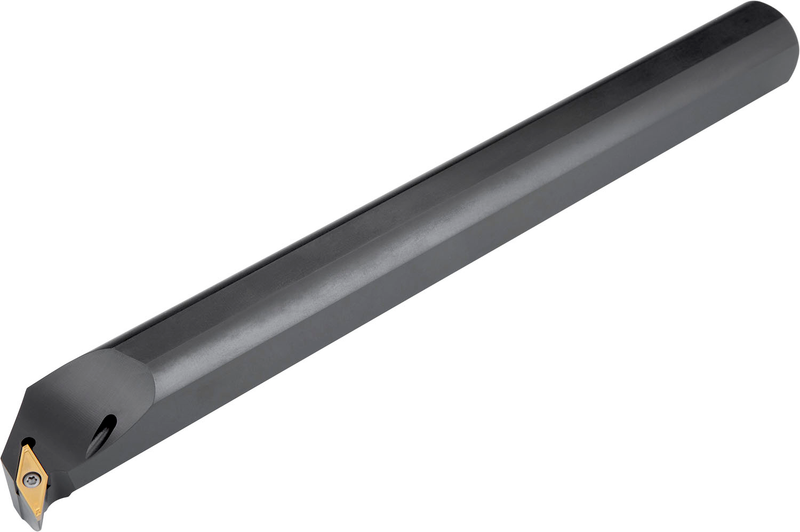

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde 35° avec cercle inscrit de 6,35 mm de diamètre, épaisseur 3,18 mm (désignation ISO VB.. 1103..), coupe à droite 93° avec queue déportée, acier avec trou d'arrosage, 16 mm de diamètre x 200 mm de long pour alésage de copiage unidirectionnel et multidirectionnel et chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16R-SVUBR 11
Product Number6760324
Product FamilySVUB(C)(RL) INT

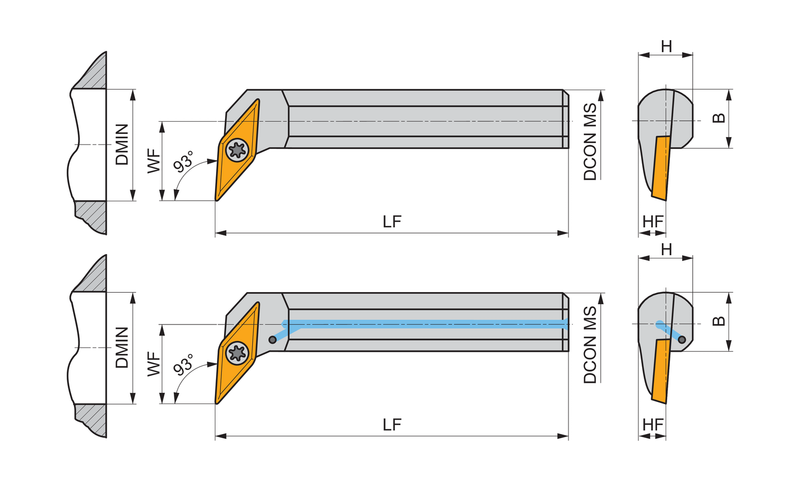

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.571 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760324
EAN3603602956705
File Type Download
A16R-SVUBR 11 — 3D Model STP Download
A16R-SVUBR 11 — Line Drawing PDF Download
