SVJBL 1212 F 11
SVJBL 1212 F 11
SVJBL 1212 F 11

SVJBL 1212 F 11

UGC DOR6760329
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.00 CAD - $186.00 CAD
$186.00 CAD
$186.00 CAD - $186.00 CAD
$186.00 CAD

Vendu en lots de : 1

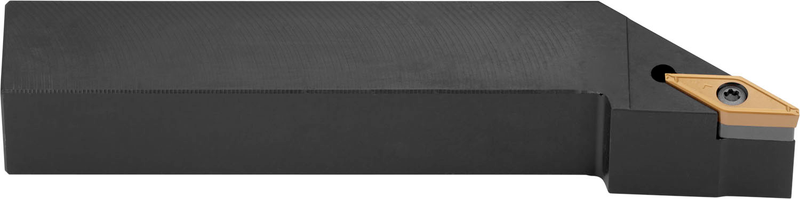

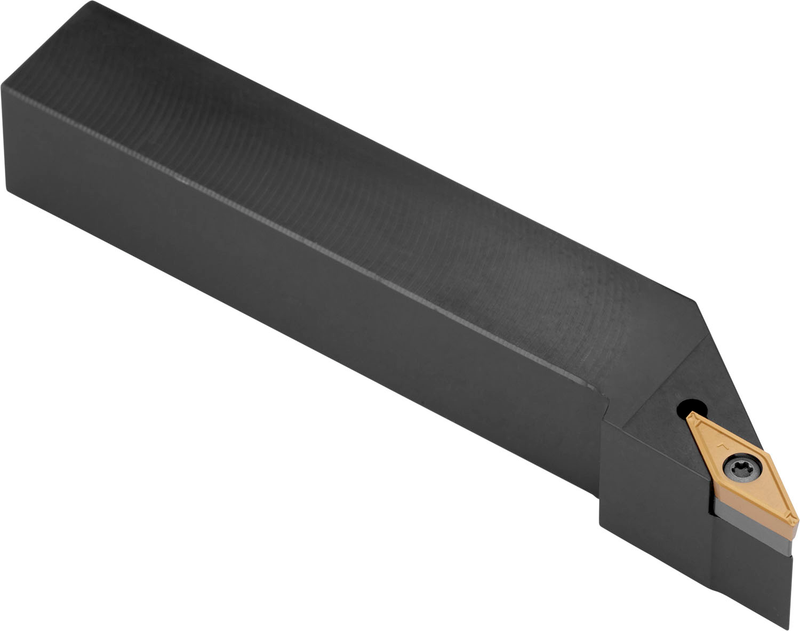

Outil de tournage à bride à vis pour plaquette positive en forme de losange à 35° avec un diamètre de cercle inscrit de 6,35 mm, épaisseur de 3,18 mm (désignation ISO VB.. 1103.. ), coupe latérale à 93° à gauche avec queue déportée, hauteur d'outil de 12 mm x largeur de 12 mm x longueur de 80 mm pour le tournage conique, le copiage monodirectionnel et multidirectionnel et le chariotage avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJBL 1212 F 11
Product Number6760329
Product FamilySVJB(C)(RL) EXT
Dimensions
Functional Length — in (LF)3.15"
Functional Length — mm (LF)80.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760329
EAN3603602956750
File Type Download
SVJBL 1212 F 11 — 3D Model STP Download

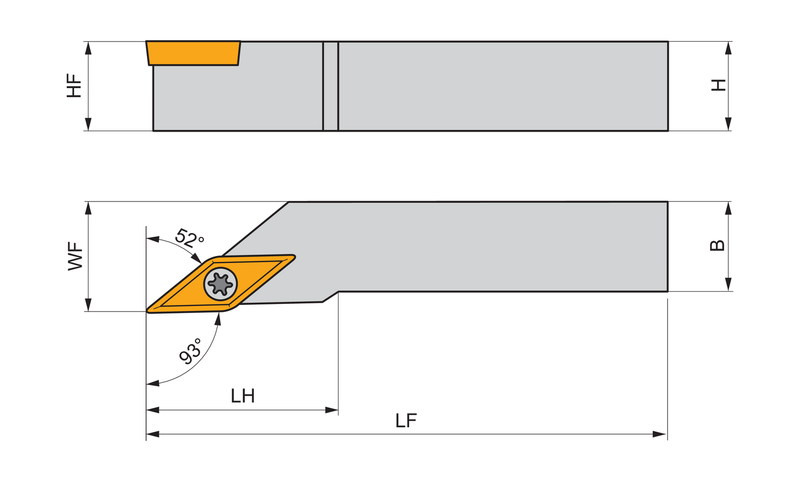

SVJBL 1212 F 11 — Line Drawing PDF Download
