SVJBL 1616 H 11
SVJBL 1616 H 11
SVJBL 1616 H 11

SVJBL 1616 H 11

UGC DOR6760330
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.00 CAD - $186.00 CAD
$186.00 CAD
$186.00 CAD - $186.00 CAD
$186.00 CAD

Vendu en lots de : 1

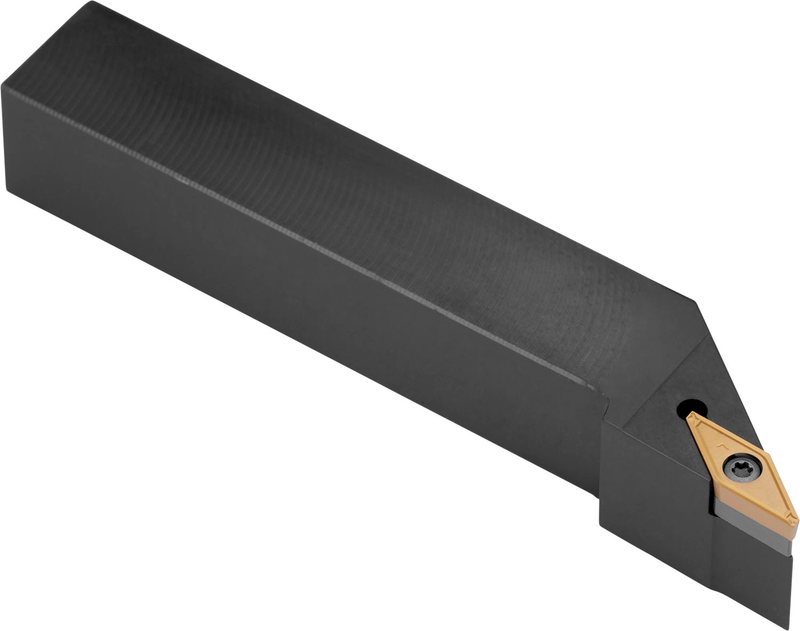

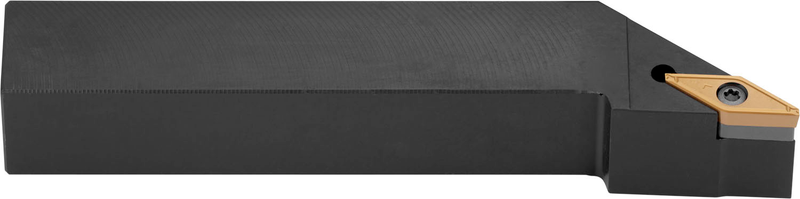

Outil de tournage à plaquette vissée pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 6,35mm, 3,18mm d'épaisseur (désignation ISO VB.. 1103.. ), coupe latérale à gauche à 93° avec un corps déporté, hauteur d'outil de 16mm x largeur de 16mm x longueur de 100mm pour le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJBL 1616 H 11
Product Number6760330
Product FamilySVJB(C)(RL) EXT

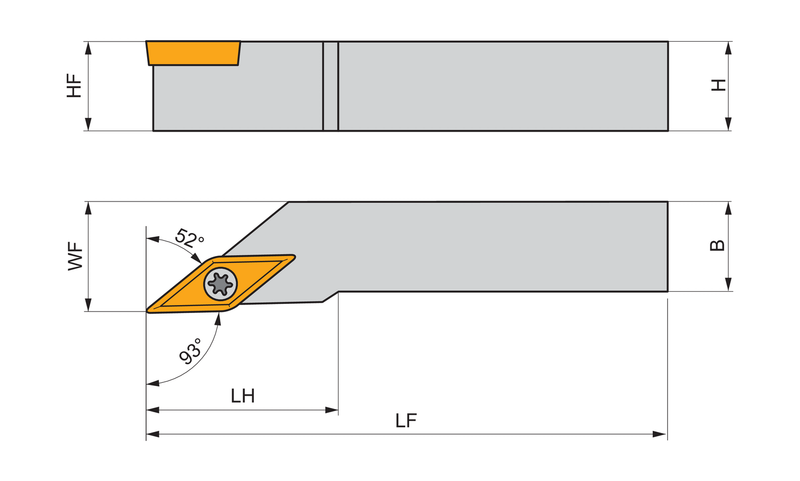

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760330
EAN3603602956767
File Type Download
SVJBL 1616 H 11 — 3D Model STP Download
SVJBL 1616 H 11 — Line Drawing PDF Download
