SVVBN 2020 K 11
SVVBN 2020 K 11
SVVBN 2020 K 11

SVVBN 2020 K 11

UGC DOR6760339
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

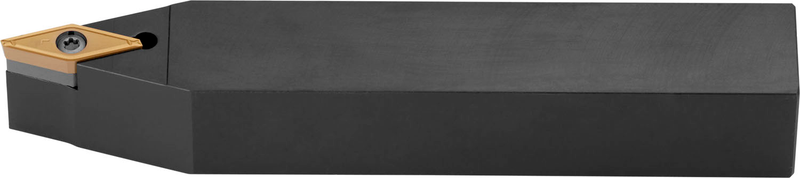

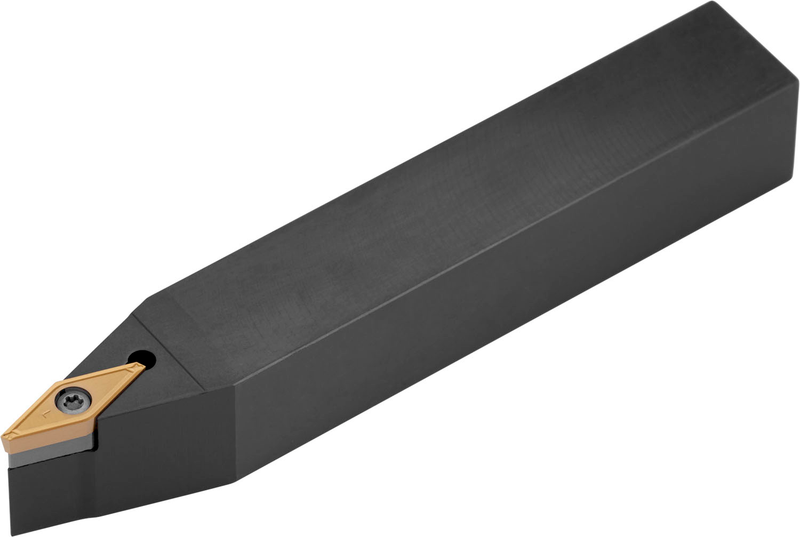

Outil de tournage à bride par vis pour plaquette positive en losange de 35° avec un diamètre de cercle inscrit de 6,35 mm, 3,18 mm d'épaisseur (désignation ISO VB.. 1103.. ), main neutre, coupe latérale à 72°30' avec queue droite, hauteur d'outil de 20 mm x 20 mm de largeur x 125 mm de longueur pour tournage conique, tournage de copie unidirectionnel et multidirectionnel et tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVVBN 2020 K 11
Product Number6760339
Product FamilySVVB(C)N EXT

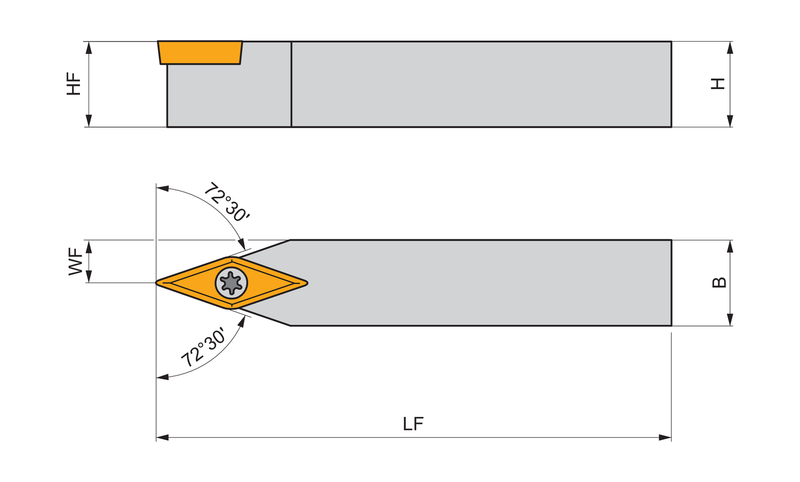

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760339
EAN3603602956859
File Type Download
SVVBN 2020 K 11 — 3D Model STP Download
SVVBN 2020 K 11 — Line Drawing PDF Download
