SVXBR 1212 F 11
SVXBR 1212 F 11
SVXBR 1212 F 11

SVXBR 1212 F 11

UGC DOR6760342
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.00 CAD - $186.00 CAD
$186.00 CAD
$186.00 CAD - $186.00 CAD
$186.00 CAD

Vendu en lots de : 1

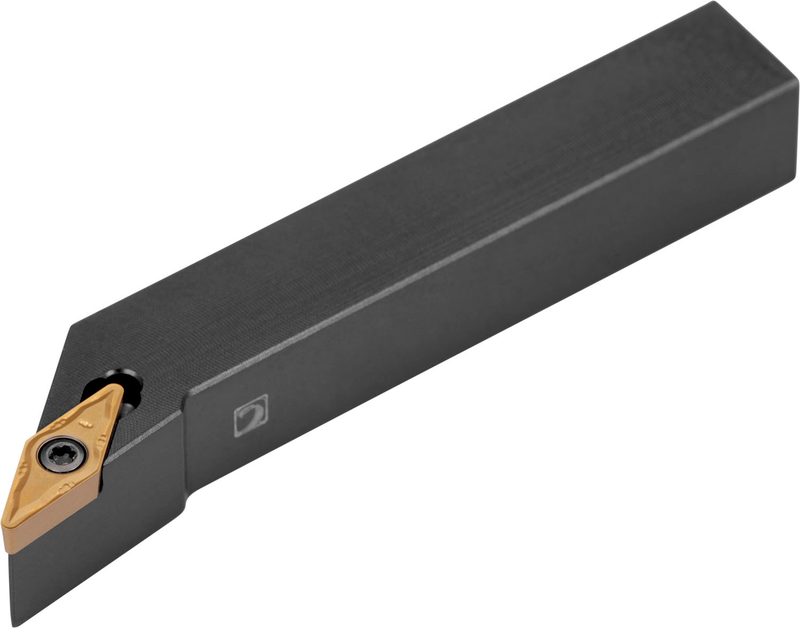

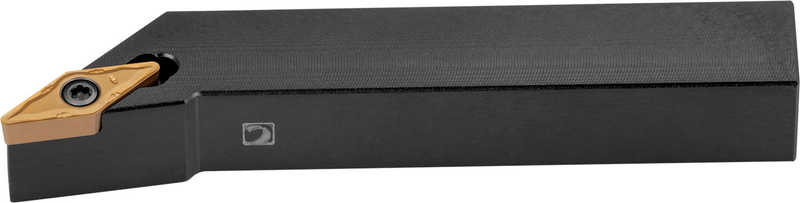

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 6,35mm, 3,18mm d'épaisseur (désignation ISO VB.. 1103.. ), outil spécial droit, hauteur d'outil de 12mm x largeur de 12mm x 80mm de long pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVXBR 1212 F 11
Product Number6760342
Product FamilySVXB(C)(RL) EXT
Dimensions
Functional Length — in (LF)3.15"
Functional Length — mm (LF)80.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760342
EAN3603602956880
File Type Download
SVXBR 1212 F 11 — 3D Model STP Download

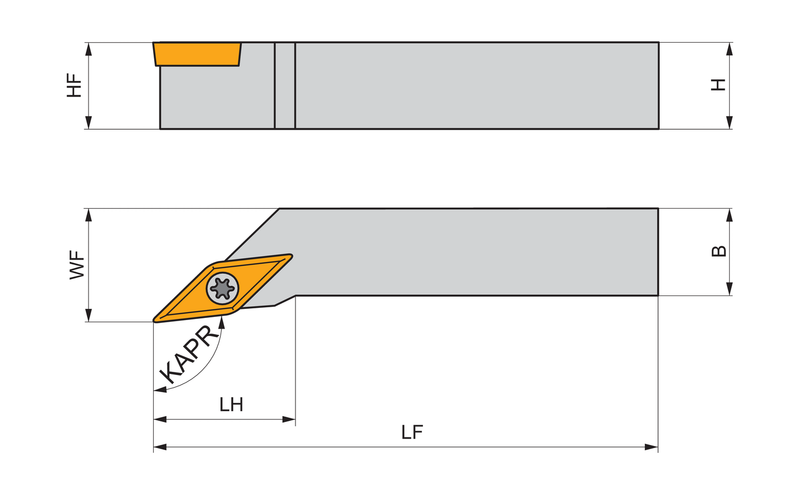

SVXBR 1212 F 11 — Line Drawing PDF Download
