45T04R-S45XP1620-C
45T04R-S45XP1620-C
45T04R-S45XP1620-C

45T04R-S45XP1620-C

UGC DOR6760348
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,408.00 CAD - $1,408.00 CAD
$1,408.00 CAD
$1,408.00 CAD - $1,408.00 CAD
$1,408.00 CAD

Vendu en lots de : 1

Fraise à chanfreiner à géométrie positive/négative qui utilise 8 plaquettes simple face XPHT 1604.., diamètre de coupe de 45 à 86,1 mm maximum avec un angle d'attaque de 45° et un alésage de raccordement de 27 mm selon DIN 8030, longueur de saillie de 50 mm, arrosage interne et pas différentiel pour le chanfreinage avec une profondeur de coupe maximale de 20 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)45T04R-S45XP1620-C
Product Number6760348
Product FamilyJ(T)-SXP16
Insert Geometry
Depth of Cut Max — mm (APMX)20.0 mm

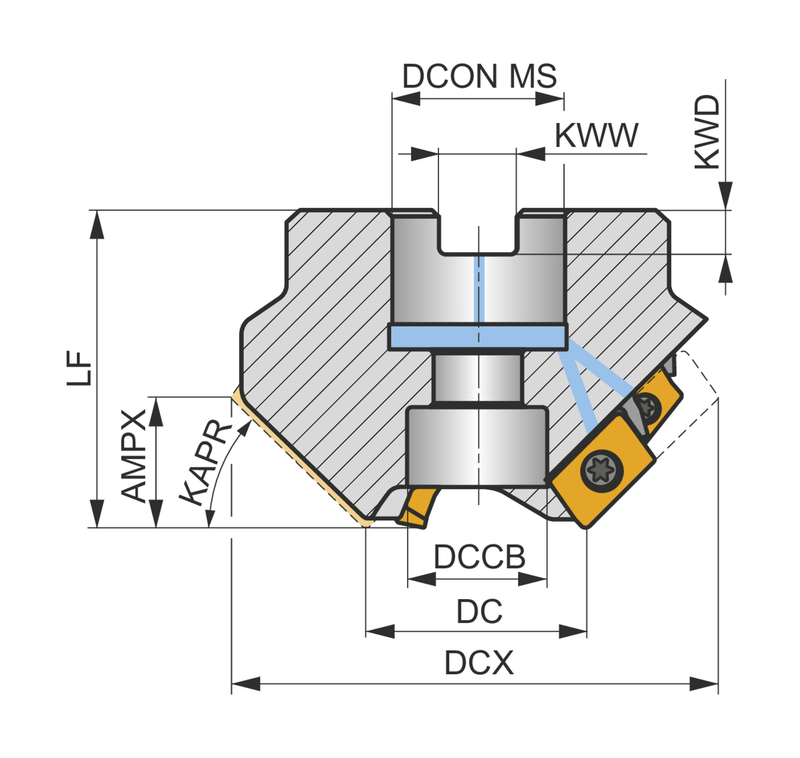

Dimensions
Cutting Diameter — in (DC)1.772"
Cutting Diameter — mm (DC)45.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SXP16
ShankFraise à surfacer-dresser DIN 8030 – fraise hélicoïdale
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760348
EAN3603602956941
File Type Download
45T04R-S45XP1620-C — 3D Model STP Download
45T04R-S45XP1620-C — 2D Model DXF Download
45T04R-S45XP1620-C — Line Drawing PDF Download
