Fraise à chanfreiner avec une géométrie double négative qui utilise 6 plaquettes simple face XPHT 1604.., diamètre de coupe de 35 à 82,4 mm maximum avec un angle d'attaque de 35° et un alésage de raccordement de 27 mm selon DIN 8030, longueur de saillie de 50 mm, arrosage central pour le chanfreinage avec une profondeur de coupe maximale de 16 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)35T03R-S35XP1616-C
Product Number6760354
Product FamilyJ(T)-SXP16
Insert Geometry
Depth of Cut Max — mm (APMX)16.0 mm

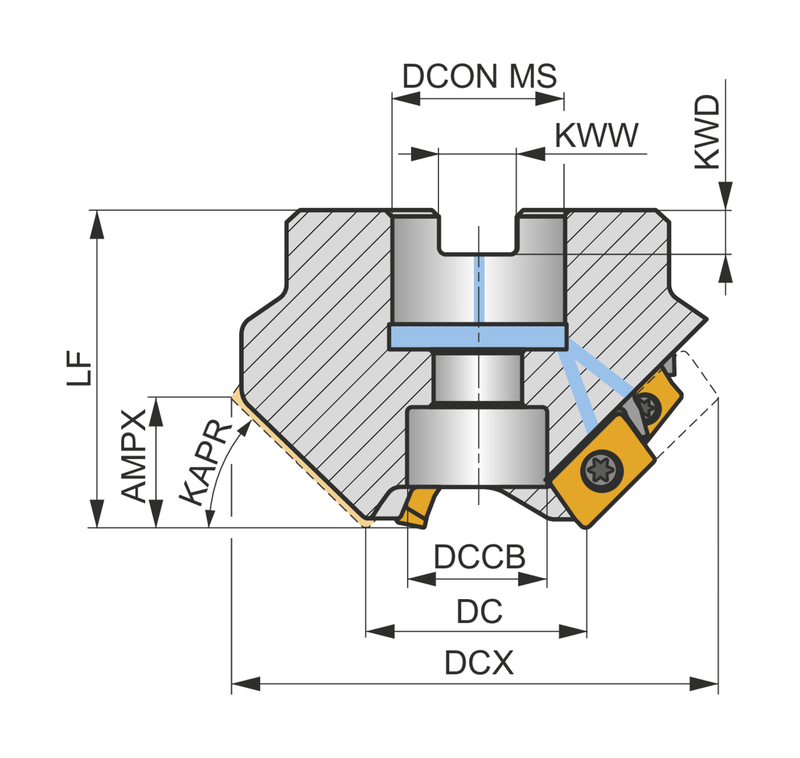

Dimensions
Cutting Diameter — in (DC)1.378"
Cutting Diameter — mm (DC)35.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SXP16
ShankFraise-cloche DIN 8030 – fraise hélicoïdale
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760354
EAN3603602957009
File Type Download
35T03R-S35XP1616-C — 3D Model STP Download
35T03R-S35XP1616-C — 2D Model DXF Download
35T03R-S35XP1616-C — Line Drawing PDF Download
