35T03R-S30XP1614-C
35T03R-S30XP1614-C
35T03R-S30XP1614-C

35T03R-S30XP1614-C

UGC DOR6760355
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,282.00 CAD - $1,282.00 CAD
$1,282.00 CAD
$1,282.00 CAD - $1,282.00 CAD
$1,282.00 CAD

Vendu en lots de : 1

Fraise à chanfreiner avec géométrie double négative utilisant 6 plaquettes simple face XPHT 1604..., diamètre de coupe de 35 à 85,1 mm maximum avec un angle d'attaque de 30° et un alésage de raccordement de 27 mm selon DIN 8030, longueur en porte-à-faux de 50 mm, arrosage par l'intérieur pour le chanfreinage avec une profondeur de coupe maximale de 14 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)35T03R-S30XP1614-C
Product Number6760355
Product FamilyJ(T)-SXP16
Insert Geometry
Depth of Cut Max — mm (APMX)14.0 mm

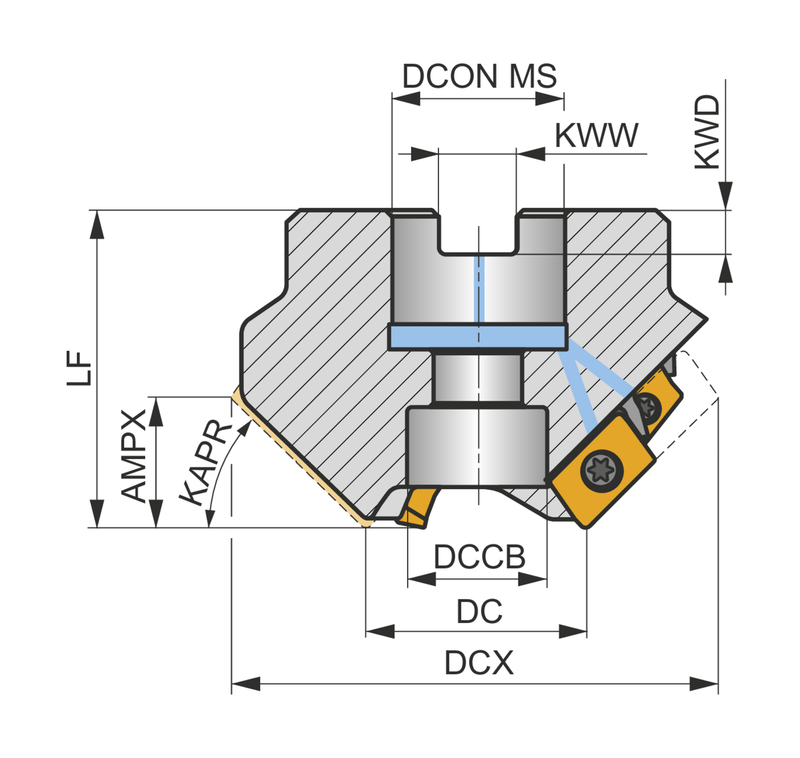

Dimensions
Cutting Diameter — in (DC)1.378"
Cutting Diameter — mm (DC)35.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SXP16
ShankFraise à surfacer-dresser DIN 8030 – fraise hélicoïdale
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760355
EAN3603602957016
File Type Download
35T03R-S30XP1614-C — 3D Model STP Download
35T03R-S30XP1614-C — 2D Model DXF Download
35T03R-S30XP1614-C — Line Drawing PDF Download
