35T03R-S15XP1607-C
35T03R-S15XP1607-C
35T03R-S15XP1607-C

35T03R-S15XP1607-C

UGC DOR6760360
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,282.00 CAD - $1,282.00 CAD
$1,282.00 CAD
$1,282.00 CAD - $1,282.00 CAD
$1,282.00 CAD

Vendu en lots de : 1

Fraise à chanfreiner avec une géométrie doublement négative qui utilise 6 plaquettes simple face XPHT 1604.., diamètre de coupe de 35 à 90,6 mm maximum avec un angle d'approche de 15° et un alésage de raccordement de 27 mm selon DIN 8030, longueur de dépassement de 50 mm, arrosage central pour le chanfreinage avec une profondeur de coupe maximale de 7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)35T03R-S15XP1607-C
Product Number6760360
Product FamilyJ(T)-SXP16
Insert Geometry
Depth of Cut Max — mm (APMX)7.0 mm

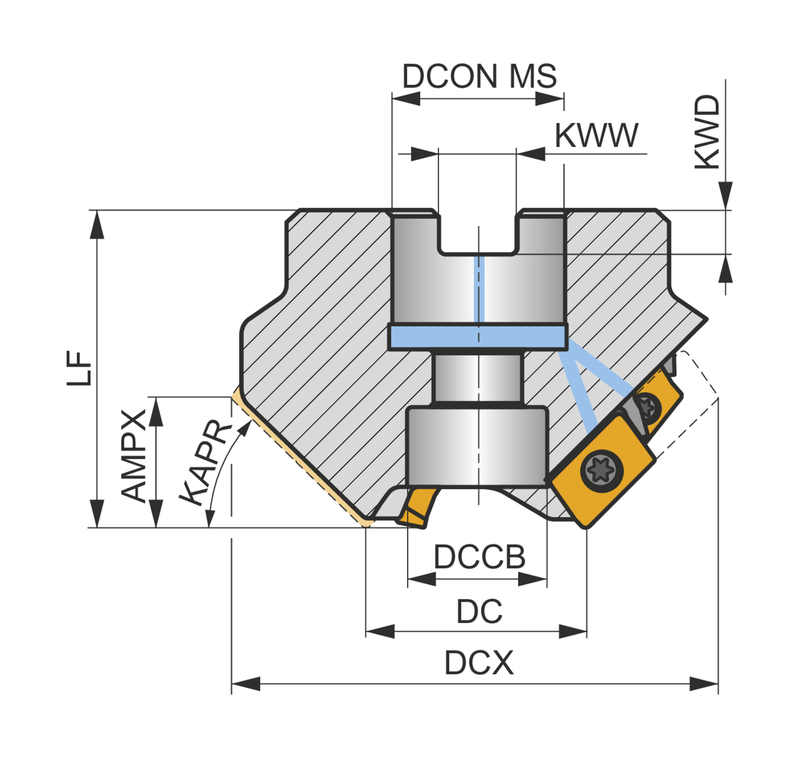

Dimensions
Cutting Diameter — in (DC)1.378"
Cutting Diameter — mm (DC)35.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SXP16
ShankFraise-cloche DIN 8030 – Fraise hélicoïdale
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760360
EAN3603602957061
File Type Download
35T03R-S15XP1607-C — 3D Model STP Download
35T03R-S15XP1607-C — 2D Model DXF Download
35T03R-S15XP1607-C — Line Drawing PDF Download
