GFML 3225 P 0616
GFML 3225 P 0616
GFML 3225 P 0616

GFML 3225 P 0616

UGC DOR6760372
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$280.00 CAD - $280.00 CAD
$280.00 CAD
$280.00 CAD - $280.00 CAD
$280.00 CAD

Vendu en lots de : 1

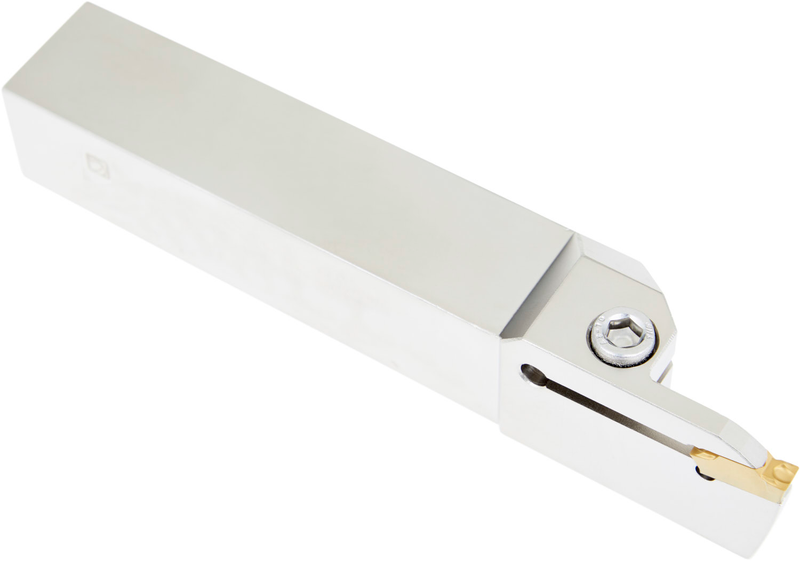

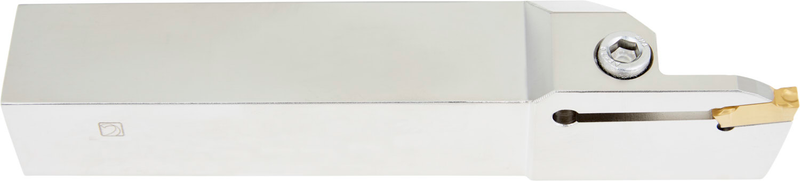

Outil de rainurage à bride supérieure pour plaquette simple ou double de 16,4 mm de long avec largeur de coupe de 6 mm (désignation LCM. 0616..), gaucher avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 60 mm, hauteur de tige de 32 mm, largeur de 25 mm et longueur d'outil de 170 mm pour tournage de copie multidirectionnel, rainurage radial peu profond et profond, tournage de rainures radiales, tronçonnage et tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GFML 3225 P 0616
Product Number6760372
Product FamilyGFM(RL) EXT
Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760372
EAN3603602957184
File Type Download

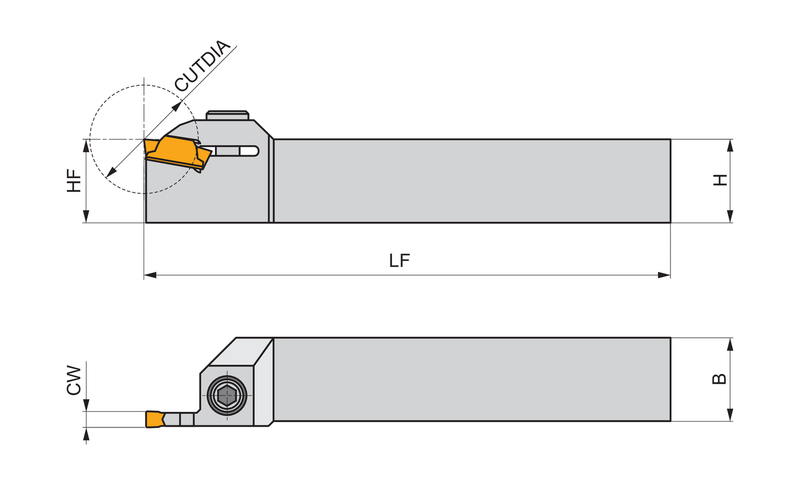

GFML 3225 P 0616 — Line Drawing PDF Download
