GFMR 2525 M 0316
GFMR 2525 M 0316
GFMR 2525 M 0316

GFMR 2525 M 0316

UGC DOR6760376
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$268.00 CAD - $268.00 CAD
$268.00 CAD
$268.00 CAD - $268.00 CAD
$268.00 CAD

Vendu en lots de : 1

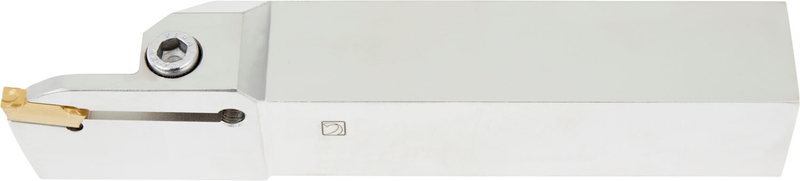

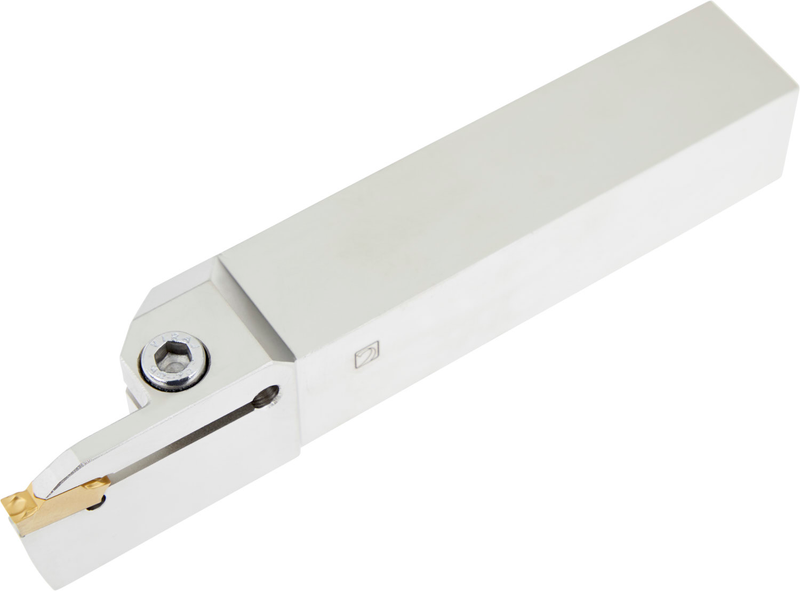

Outil de rainurage à bride supérieure pour plaquette double ou simple face de 16,4 mm de long et de 3 mm de largeur de coupe (désignation LCM. 0316.. ), droitier avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximum de 30 mm, hauteur de queue 25 mm, largeur 25 mm et longueur d'outil 150 mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorge radiale, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GFMR 2525 M 0316
Product Number6760376
Product FamilyGFM(RL) EXT

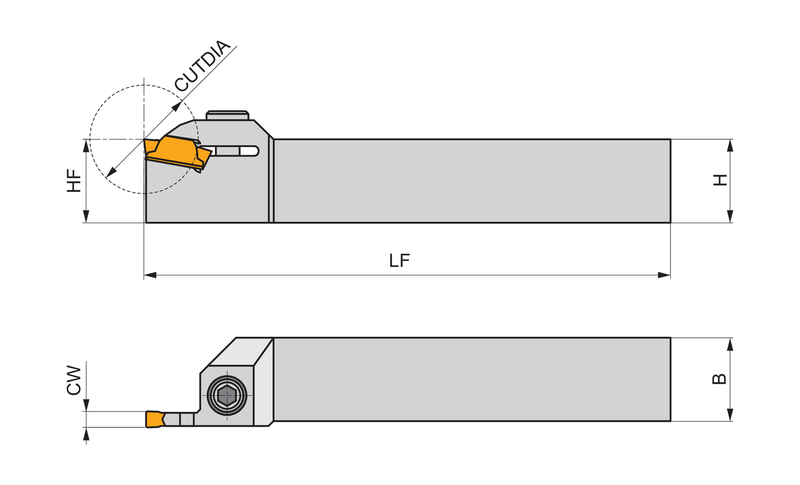

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760376
EAN3603602957221
File Type Download
GFMR 2525 M 0316 — Line Drawing PDF Download
