GFMR 3225 P 0616
GFMR 3225 P 0616
GFMR 3225 P 0616

GFMR 3225 P 0616

UGC DOR6760381
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$280.00 CAD - $280.00 CAD
$280.00 CAD
$280.00 CAD - $280.00 CAD
$280.00 CAD

Vendu en lots de : 1

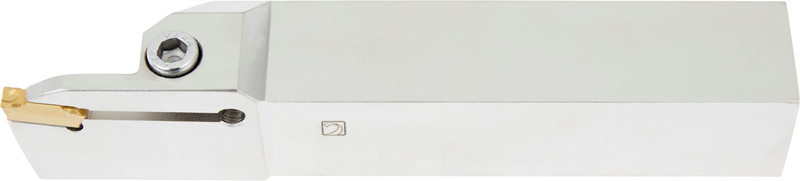

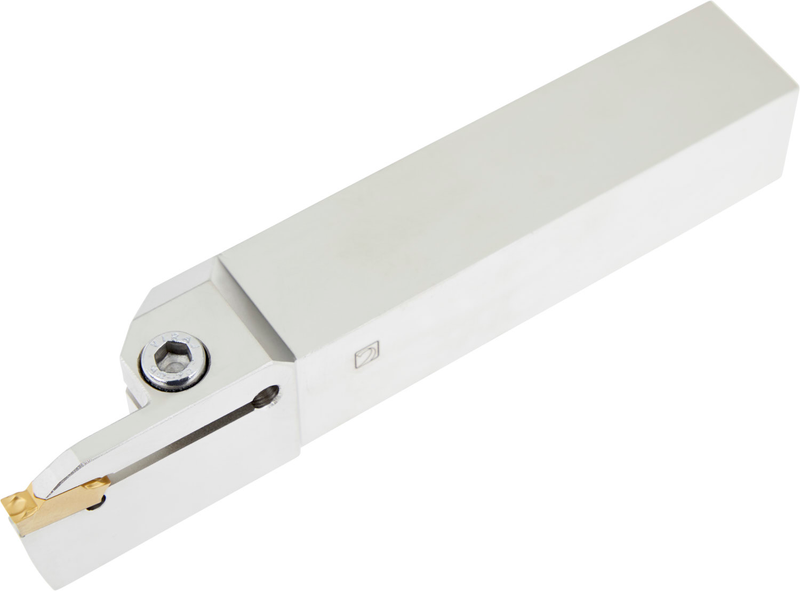

Outil de gorge à bride supérieure pour plaquette double ou simple de 16,4 mm de long et 6 mm de largeur de coupe (désignation LCM. 0616..), à droite, avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 60 mm, hauteur de queue 32 mm, largeur 25 mm et longueur d'outil 170 mm pour le tournage de copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de rainure radiale, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GFMR 3225 P 0616
Product Number6760381
Product FamilyGFM(RL) EXT
Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760381
EAN3603602957276
File Type Download

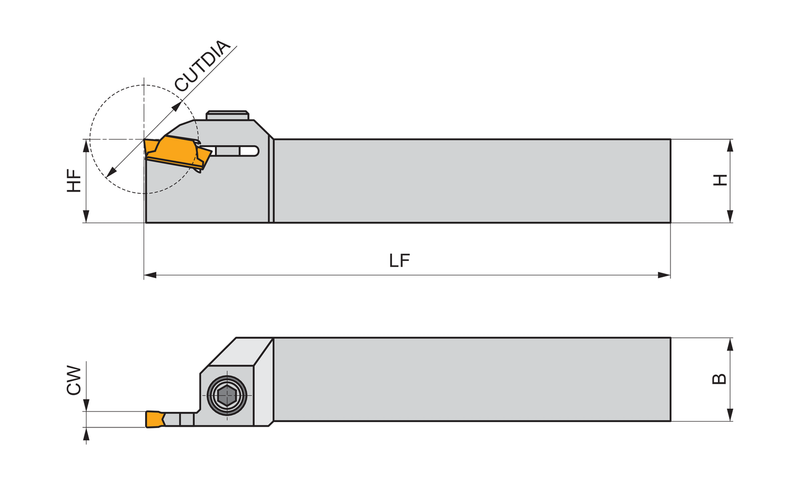

GFMR 3225 P 0616 — Line Drawing PDF Download
