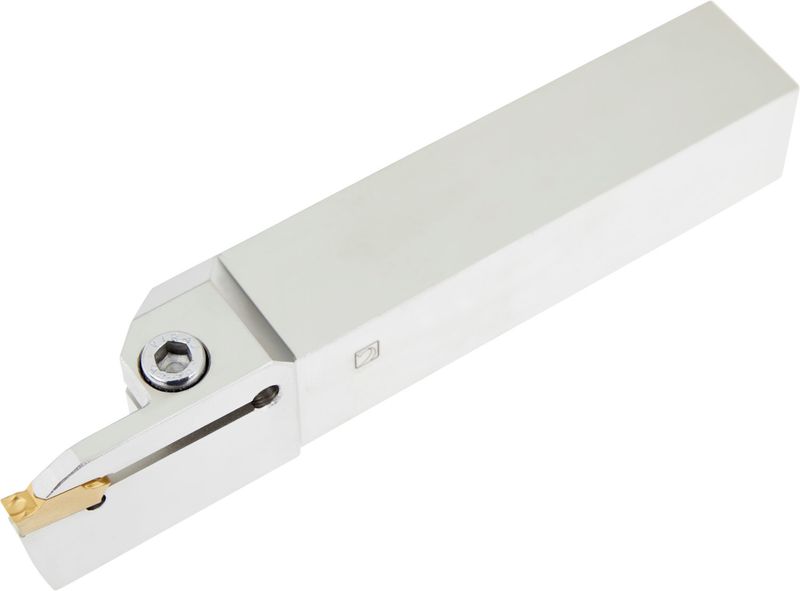

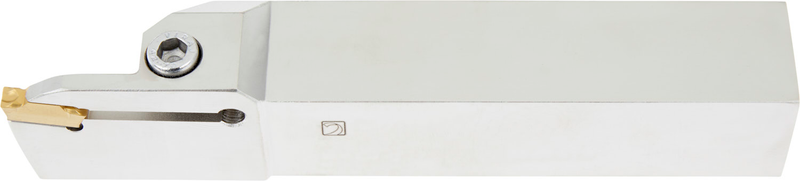

GFMR 3225 P 0830
GFMR 3225 P 0830
GFMR 3225 P 0830

GFMR 3225 P 0830

UGC DOR6760382
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$280.00 CAD - $280.00 CAD
$280.00 CAD
$280.00 CAD - $280.00 CAD
$280.00 CAD

Vendu en lots de : 1

Outil de rainurage à bride supérieure pour plaquette double ou simple face de 30 mm de long et de 8 mm de largeur de coupe (désignation LCM. 0830..), droitier, avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 80 mm, hauteur de la queue 32 mm, largeur 25 mm et longueur de l'outil 170 mm pour le tournage de reproduction multidirectionnel, le rainurage radial peu profond et profond, le rainurage radial, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GFMR 3225 P 0830
Product Number6760382
Product FamilyGFM(RL) EXT
Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760382
EAN3603602957283
File Type Download

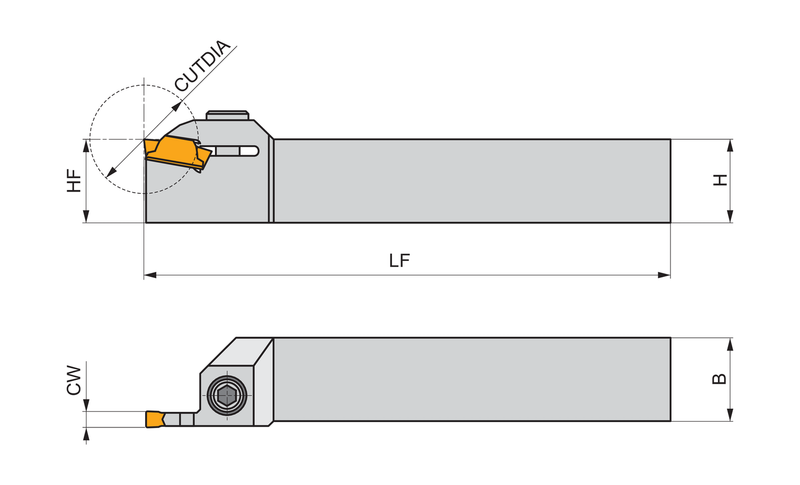

GFMR 3225 P 0830 — Line Drawing PDF Download
