80J2R210X50-SLSN134-C
80J2R210X50-SLSN134-C
80J2R210X50-SLSN134-C

80J2R210X50-SLSN134-C

UGC DOR6760426
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4,156.00 CAD - $4,156.00 CAD
$4,156.00 CAD
$4,156.00 CAD - $4,156.00 CAD
$4,156.00 CAD

Vendu en lots de : 1

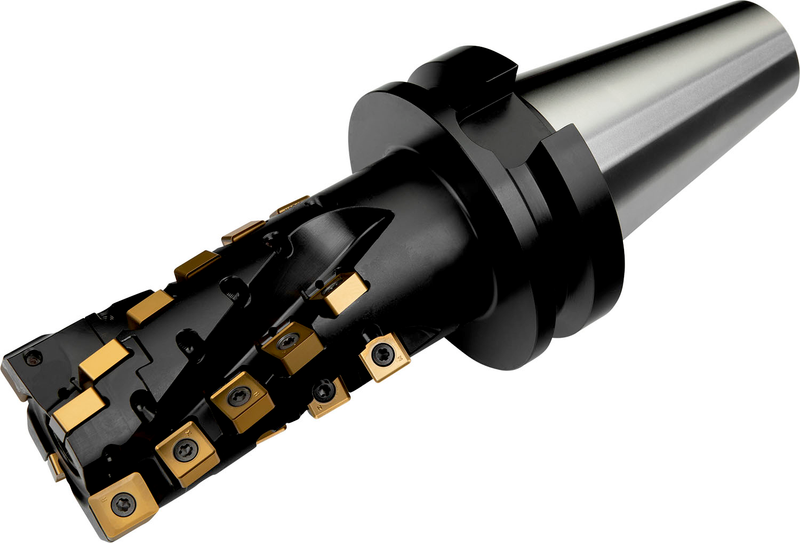

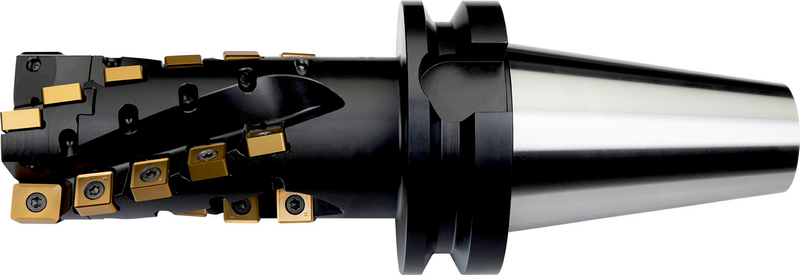

Fraise à épaulement et à coupe étendue à géométrie double négative utilisant 2 plaquettes double face LNET 1606... et 26 SN... 1305..., diamètre de coupe de 80 mm avec un angle d'attaque de 90° et un cône BT 50 selon JIS B 6339, longueur fonctionnelle de 134 mm et longueur totale de 312 mm, arrosage centralisé pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 134 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80J2R210X50-SLSN134-C
Product Number6760426
Product FamilyJ(T)-SLSN
Insert Geometry
Depth of Cut Max — mm (APMX)134.0 mm

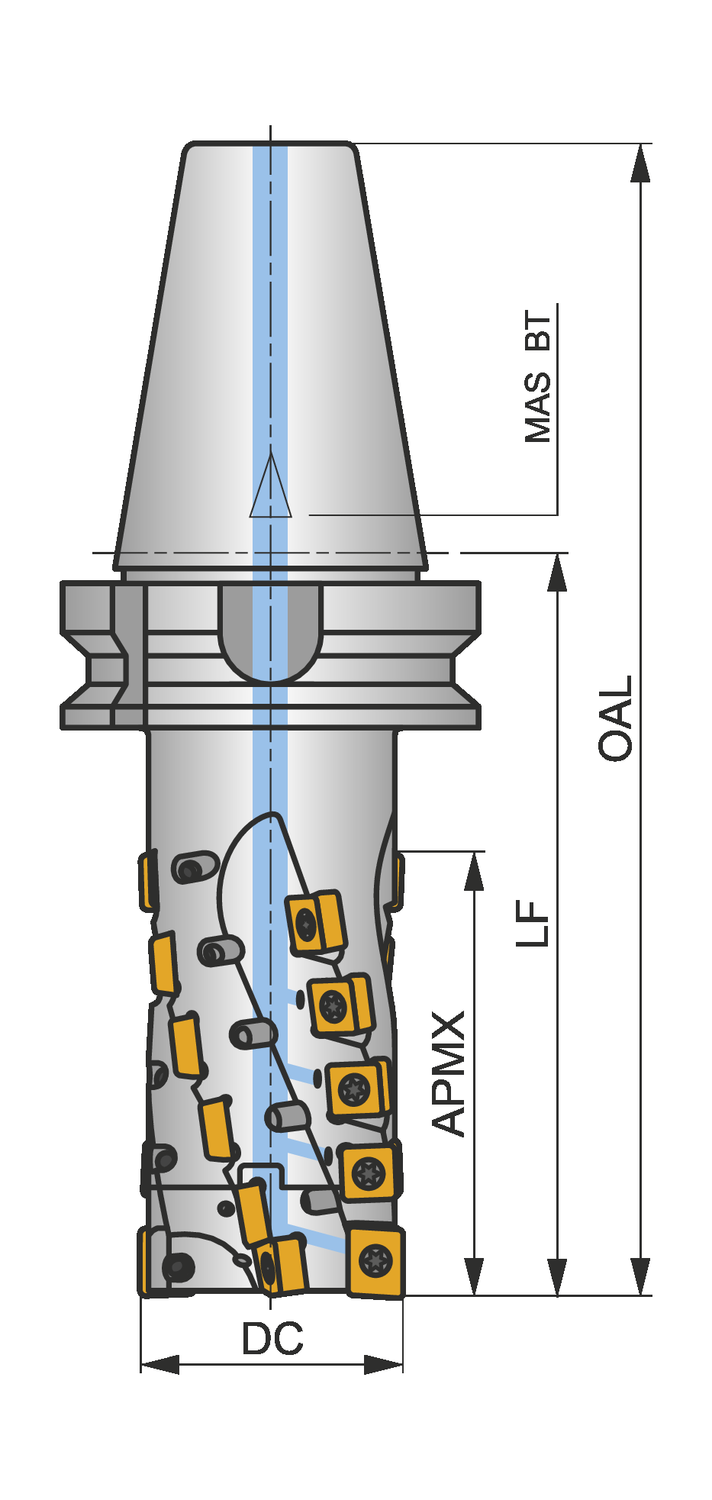

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Overall Length — in (OAL)12.283"
Overall Length — mm (OAL)312.0 mm
Functional Length — mm (LF)210.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SLSN
ShankArbor MAS BT (JIS-B-6339)
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760426
EAN3603602957726
File Type Download
80J2R210X50-SLSN134-C — 3D Model STP Download
80J2R210X50-SLSN134-C — 2D Model DXF Download
80J2R210X50-SLSN134-C — Line Drawing PDF Download
